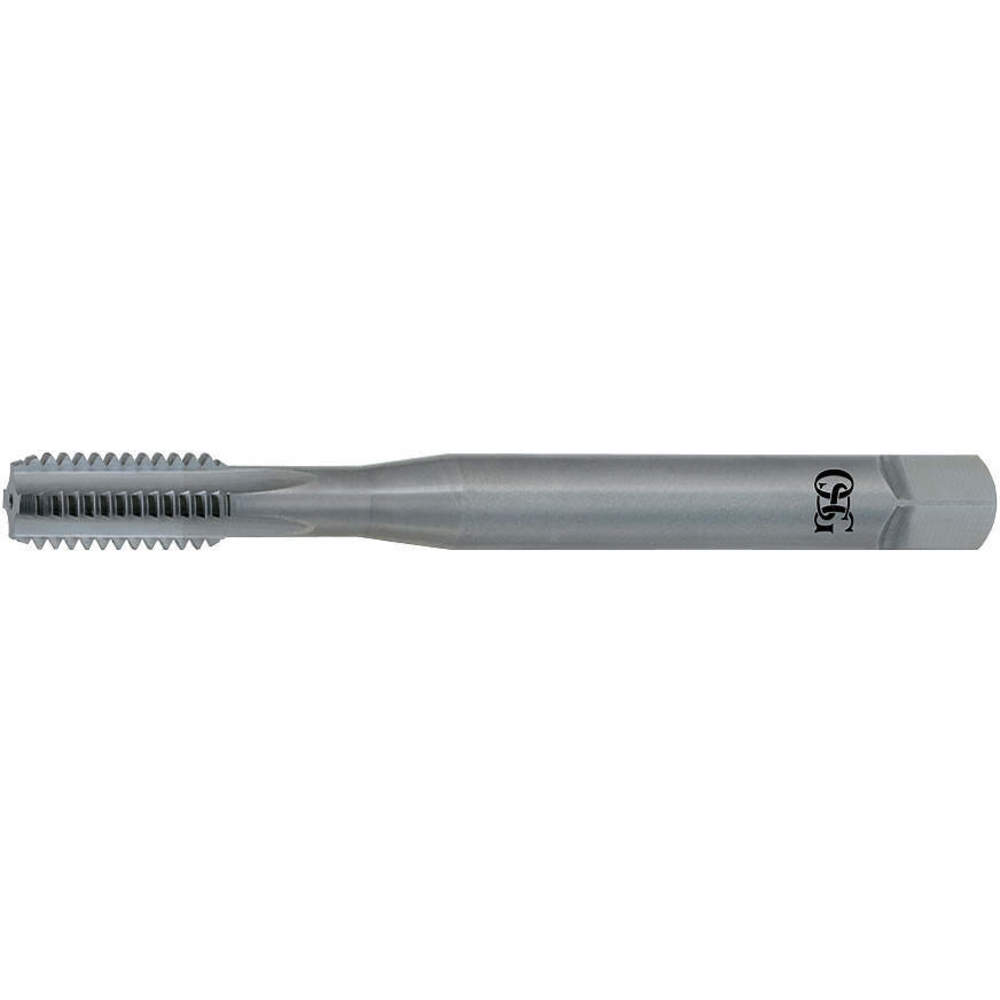

OSG 3190900 Straight Flute Tap Bottom 3/8 Inch x 16 Bright
Item: AG4GKFModel: 3190900Cross Ref: 33YY65
7 In Stock
Ships within 2 days via
10.00% off
€403.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 8.4 mm |
| 65% Thread Drill Size | P |
| 75% Thread Drill Size | 5/16" |
| Class Of Fit | Class 2B |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | Bright |
| List Number | 319 |
| Material | Carbide |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 3 29/32" |
| Pitch Diameter Limits | 2B |
| Pitch Type | 16 |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Primary Material Application Iso Code | K, N |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Shank Dia. | 3/8" |
| Shank Length | 2 17/32" |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.285" |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Straight Flute (Hand) |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 3/4" |
| Thread Limit/class Of Fit | 2B |
| Thread Size | 3/8"-16 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 16 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 1.52 |
| HS code | 8207400000 |
Product Variants
| Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Number Of Flutes | Shank Dia. | Thread Standard | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3190000 | #4-40 | 1/4" | 2 3/16" | 2.2 mm | 3 | 9/64" | UNC | Coarse | €210.94 | |
| 3190100 | #6-32 | 5/16" | 2 3/16" | #36 | 3 | 9/64" | UNC | Coarse | €225.09 | |
| 3190300 | #10-24 | 7/16" | 2 3/4" | #25 | 3 | 3/16" | UNC | Coarse | €233.11 | |
| 3190400 | #10-32 | 1/2" | 2 3/4" | #21 | 3 | 3/16" | Unf | Fine | €236.74 | |
| 3190500 | 1/4"-20 | 9/16" | 3 1/8" | #7 | 3 | 1/4" | UNC | Coarse | €256.28 | |
| 3190600 | 1/4"-28 | 9/16" | 3 1/8" | 5.45 mm | 3 | 1/4" | Unf | Fine | €256.28 | |
| 3190700 | 5/16"-18 | 5/8" | 3 17/32" | F | 4 | 5/16" | UNC | Coarse | €329.84 |
