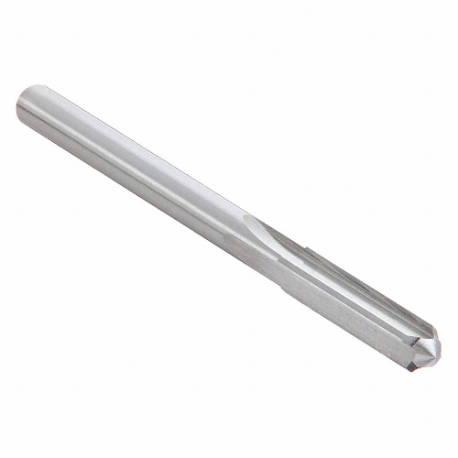

OSG 300-1417 Chucking Reamer, 3.60 mm Reamer Size, 19.00 mm Flute Length, 64.00 mm Overall Length
Item: CT4VWLModel: 300-1417Cross Ref: 34YJ53
7 In Stock
0.141"
0.125"
Ships within 2 days via
10.00% off
€43.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chucking Reamer |
| Application | Through Hole |
| Chamfer Angle | 45° |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Dia. Tolerance | -0.0102" to +0.0025" |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Decimal Equivalent | 0.1417 |
| Dimension Type | Metric |
| Finish | Bright, Uncoated |
| Flute Length | 19 mm |
| Flute Type | Straight |
| List Number | 300D |
| Material | Carbide |
| Material Application | Alloy Steel, Aluminum, Carbon Steel, Cast Iron, Stainless Steel |
| Overall Length | 64 mm |
| Primary Material Application | Aluminum, Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Reamer Application | Through Hole |
| Reamer Size | 3.6 mm |
| Shank Dia. | 3.5 mm |
| Shank Type | Straight |
| Size - Decimal | 3.6 mm |
| Spiral Direction | Neutral |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Flute Length | Number Of Flutes | Spiral Direction | Reamer Size | Cutting Dia. Tolerance | Dimension Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

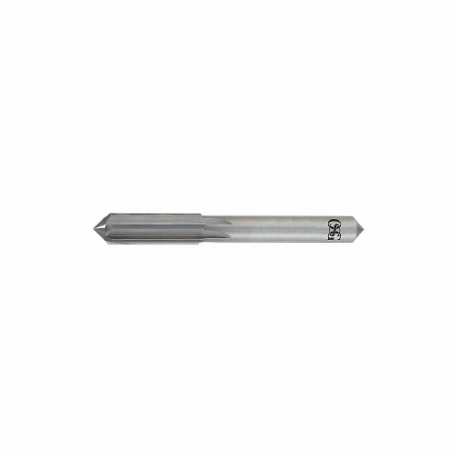

300-2280 | 3" | 0.228 | 1" | 4 | Neutral | #1 | -0.0102" to +0.0025" | - | €81.61 | |
 |

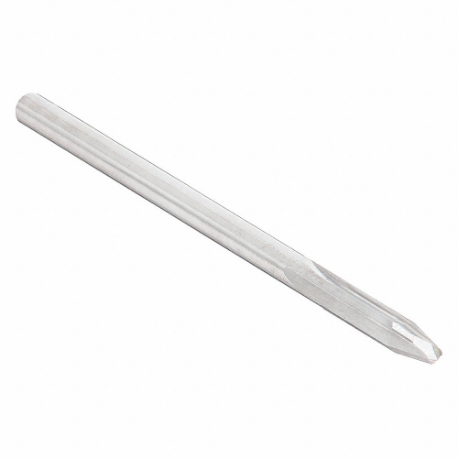

257-1935 | 4" | 0.1935 | 1 29/32" | 2 | Neutral | #10 | 0" to 0.0005" | - | €163.48 | |
|
300-1935 | 2 3/4" | 0.1935 | 7/8" | 4 | Neutral | #10 | -0.0102" to +0.0025" | - | €70.26 | |
|
257-1910 | 3" | 0.191 | 1 7/8" | - | Neutral | #11 | 0" to 0.0005" | - | €131.68 | |
|
257-1916 | 4" | 0.191 | 1 7/8" | 2 | Neutral | #11 | 0" to 0.0005" | - | €162.47 | |
|
300-1910 | 2 3/4" | 0.191 | 7/8" | 4 | Neutral | #11 | -0.0102" to +0.0025" | - | €70.26 | |
|
300-1890 | 2 3/4" | 0.189 | 7/8" | 4 | Neutral | #12 | -0.0102" to +0.0025" | - | €70.70 |
