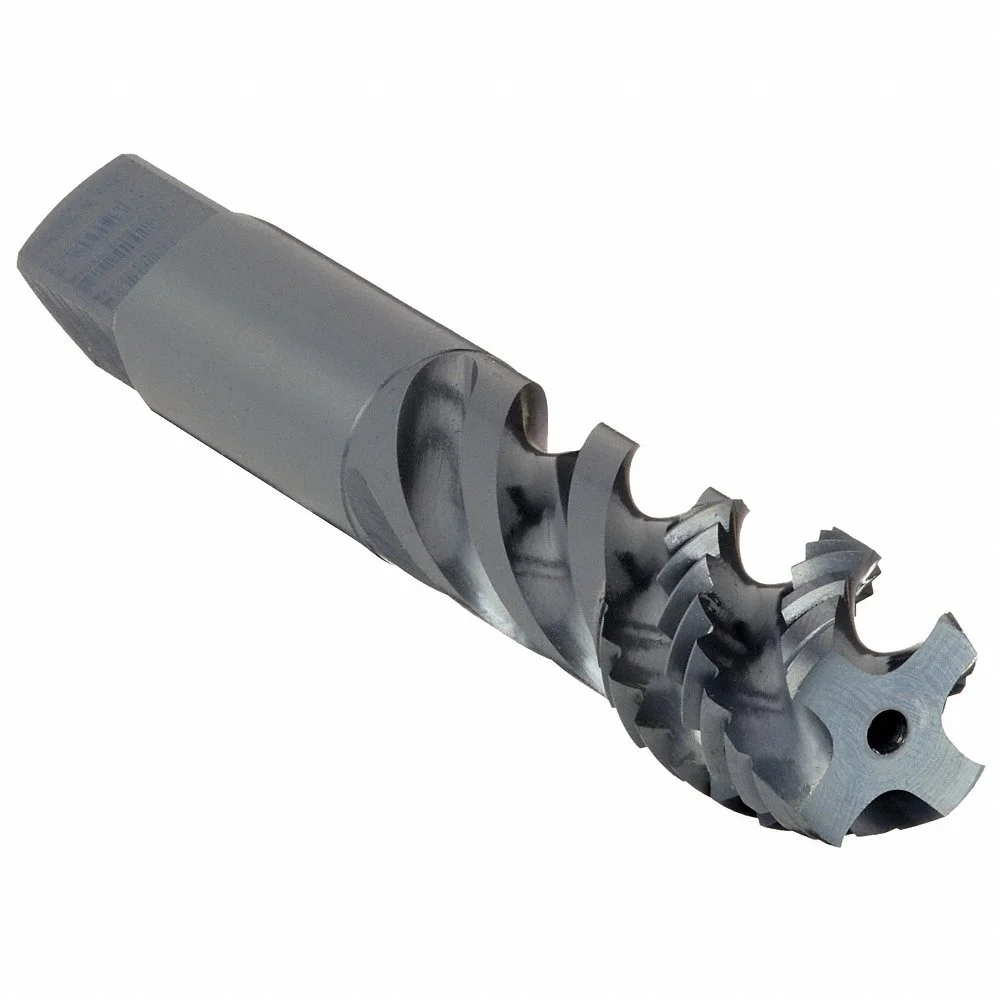

OSG 2993401 Spiral Flute Tap, M20X1.5 Thread Size, 19 mm Thread Length, 113 mm Length, Right Hand
Item: CT6NDPModel: 2993401Cross Ref: 2TTJ9
7 In Stock
Ships within 2 days via
10.00% off
€328.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 18.9 mm |
| 65% Thread Drill Size | 18.75 mm |
| 75% Thread Drill Size | 18.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 18.44 mm, 18.54 mm, 18.64 mm, 18.73 mm, 18.83 mm |
| Extended Neck | Yes |
| Features | Efficient Chip Evacuation, For Blind Hole Applications, Increased Wear Resistance |
| Finish | Black Oxide |
| Grade | Grade 299 |
| Helix Angle | 45° |
| Material Grade - Machining | Grade 299 |
| Number Of Flutes | 4 |
| Overall Length | 113 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 16.56 mm |
| Shank Length | 51 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 12.42 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | M20 x 1.5 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 19 mm |
| Thread Limit | D6 |
| Thread Limit/class Of Fit | D6 |
| Thread Pitch | 1.5 mm |
| Thread Size | M20 x 1.5 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Thread Length | Overall Length | 75% Thread Drill Size | Tap Finish | Thread Limit | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2918401 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Black Oxide | H5 | High Speed Steel | €34.82 | |
 |
2918400 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Bright | H5 | High Speed Steel | €38.98 | |
 |
2913400 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Bright | H3 | High Speed Steel | €39.67 | |
|
2913401 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Black Oxide | H3 | High Speed Steel | €38.44 | |
 |
2913408 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | TiCN | H3 | High Speed Steel | €56.49 | |
|
2918408 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | TiCN | H5 | High Speed Steel | €44.64 | |
 |
2213401 | #10-24 | 3 | 5/16" | 2 3/4" | #25 | Black Oxide | 2B | High Speed Steel | €42.70 |
