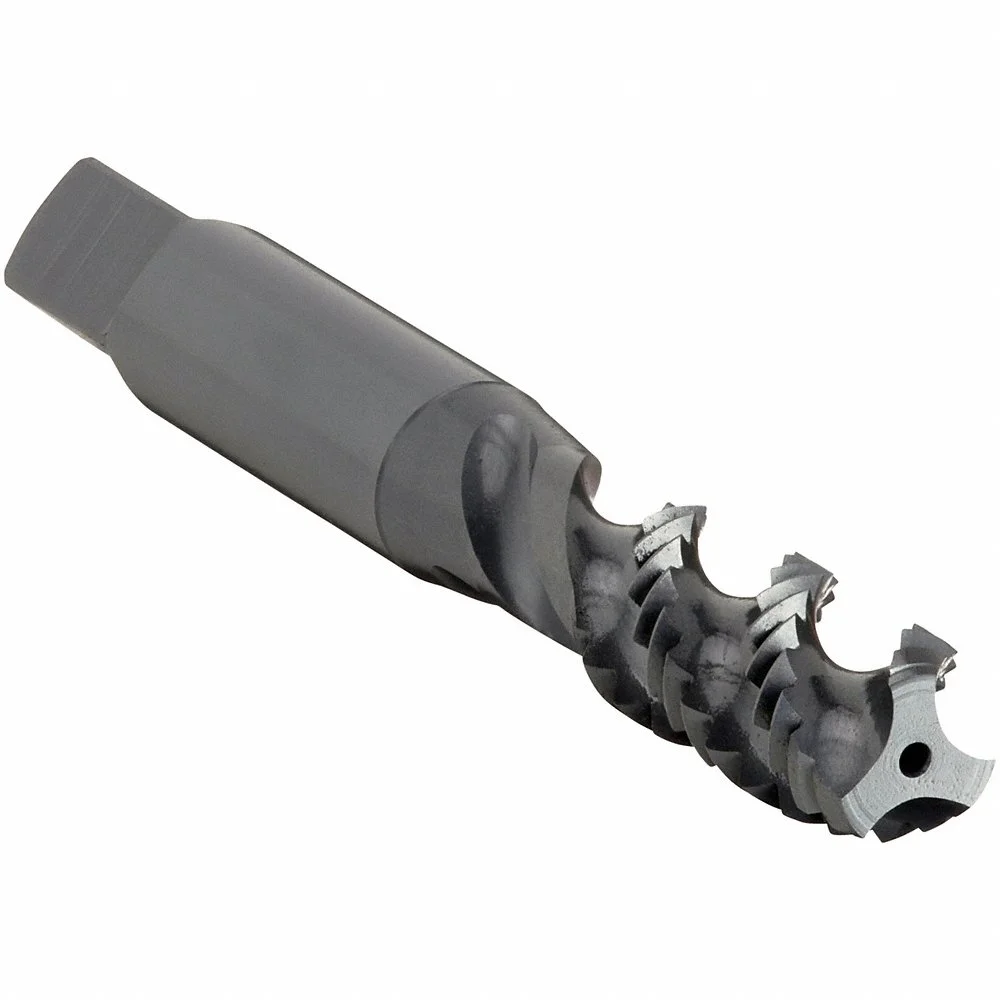

OSG 2988501 Spiral Flute Tap, M10X1.5 Thread Size, 1 1/4 Inch Thread Length, 2 15/16 Inch Length, D10
Item: CT6MNMModel: 2988501Cross Ref: 2LYD6
7 In Stock
Ships within 2 days via
10.00% off
€59.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 8.9 mm |
| 65% Thread Drill Size | 0.344" |
| 75% Thread Drill Size | 8.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 8.44 mm, 8.54 mm, 8.64 mm, 8.73 mm, 8.83 mm |
| Extended Neck | Yes |
| Features | Hss Material Increased Wear Resistance, Slow Spiral Efficient Chip Evacuation, Spiral Flute For Blind Hole Applications |
| Finish | Black Oxide |
| Grade | Grade 298 |
| Helix Angle | 50° |
| Number Of Flutes | 3 |
| Overall Length | 2.938" |
| Primary Material Application | Steel |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Shank Dia. | 3/8" |
| Shank Length | 1.688" |
| Shank Type | Straight |
| Square Size | 0.286" |
| System Of Measurement | Metric |
| Tap Chamfer | Bottoming |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 1 1/4" |
| Thread Limit | D10 |
| Thread Pitch | 1.5 mm |
| Thread Size | M10 x 1.5 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Thread Length | 75% Thread Drill Size | Overall Length | Thread Limit | Tap Finish | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1413301 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Black Oxide | Coarse | €33.97 | |
 |
1413300 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Bright | Coarse | €33.97 | |
 |
1413200 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Bright | Coarse | €33.97 | |
 |
1413305 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Tin | Coarse | €37.13 | |
 |
2985400 | #10-24 | 3 | 7/8" | #25 | 2 3/8" | 2B | Bright | Coarse | €24.86 | |
 |
2985405 | #10-24 | 3 | 7/8" | #25 | 2 3/8" | 2B | - | Coarse | €33.63 | |
 |
1413501 | #10-32 | 3 | 1/2" | #21 | 2 11/32" | H3 | Black Oxide | Fine | €33.97 |
