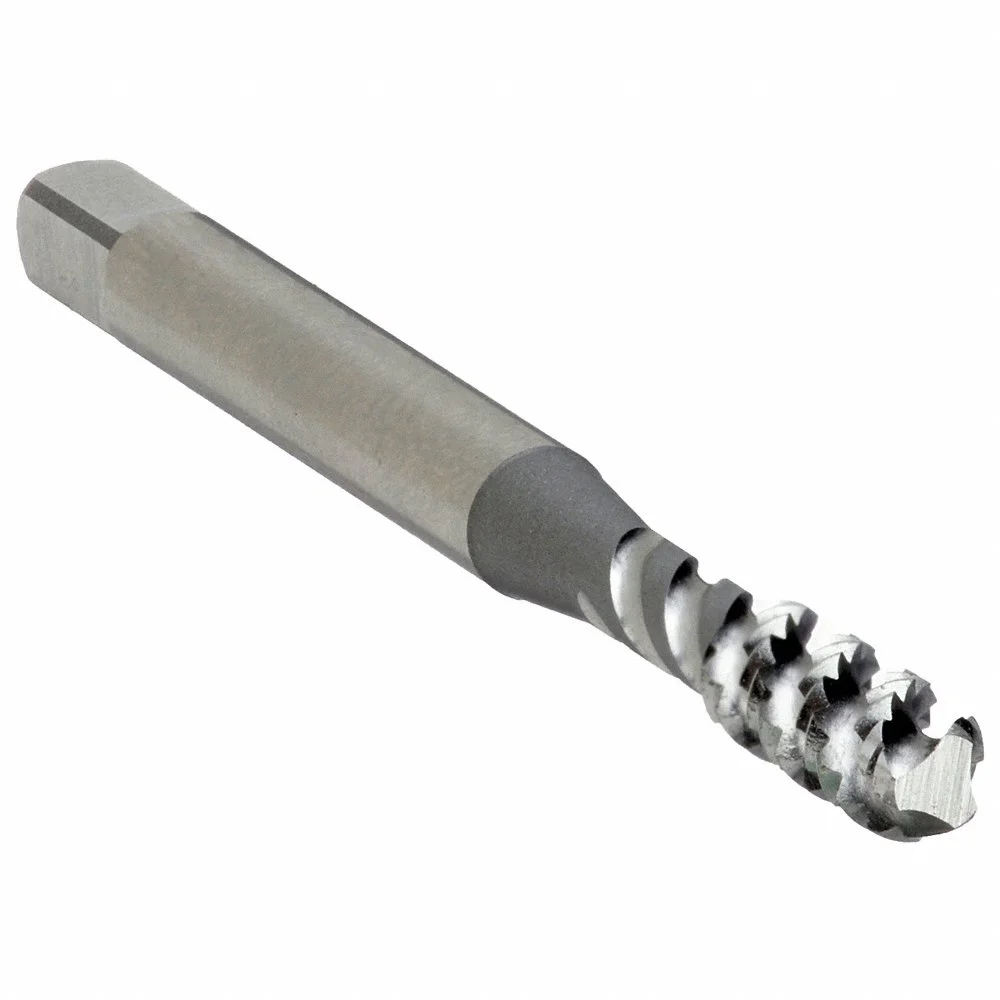

OSG 2988100 Spiral Flute Tap, M4X0.7 Thread Size, 3/4 Inch Thread Length, 2 1/8 Inch Length, 3 Flutes
Item: CT6MWTModel: 2988100Cross Ref: 2LYF2
7 In Stock
Ships within 2 days via
10.00% off
€27.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 3.5 mm |
| 65% Thread Drill Size | 3.4 mm |
| 75% Thread Drill Size | 3.3 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 3.27 mm, 3.32 mm, 3.36 mm, 3.41 mm, 3.45 mm |
| Extended Neck | Yes |
| Features | Class Of Fit Spiral Flute Taps For Ferrous And Non-Ferrous Material |
| Finish | Bright |
| Grade | Grade 298 |
| Helix Angle | 50° |
| Material Grade - Machining | Grade 298 |
| Number Of Flutes | 3 |
| Overall Length | 2 1/8" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Copper |
| Secondary Material Application Iso Code | N |
| Shank Dia. | 5/32" |
| Shank Length | 1 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 0.131" |
| System Of Measurement | Metric |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Flute |
| Tap Thread Size | M4 x 0.7 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 3/4" |
| Thread Limit | D6 |
| Thread Limit/class Of Fit | D6 |
| Thread Pitch | 0.7 mm |
| Thread Size | M4 x 0.7 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Thread Length | 75% Thread Drill Size | Overall Length | Thread Limit | Tap Finish | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1413301 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Black Oxide | Coarse | €33.97 | |
 |
1413300 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Bright | Coarse | €33.97 | |
 |
1413200 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Bright | Coarse | €33.97 | |
 |
1413305 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Tin | Coarse | €37.13 | |
 |
2985400 | #10-24 | 3 | 7/8" | #25 | 2 3/8" | 2B | Bright | Coarse | €24.86 | |
 |
2985405 | #10-24 | 3 | 7/8" | #25 | 2 3/8" | 2B | - | Coarse | €33.63 | |
 |
1413501 | #10-32 | 3 | 1/2" | #21 | 2 11/32" | H3 | Black Oxide | Fine | €33.97 |
