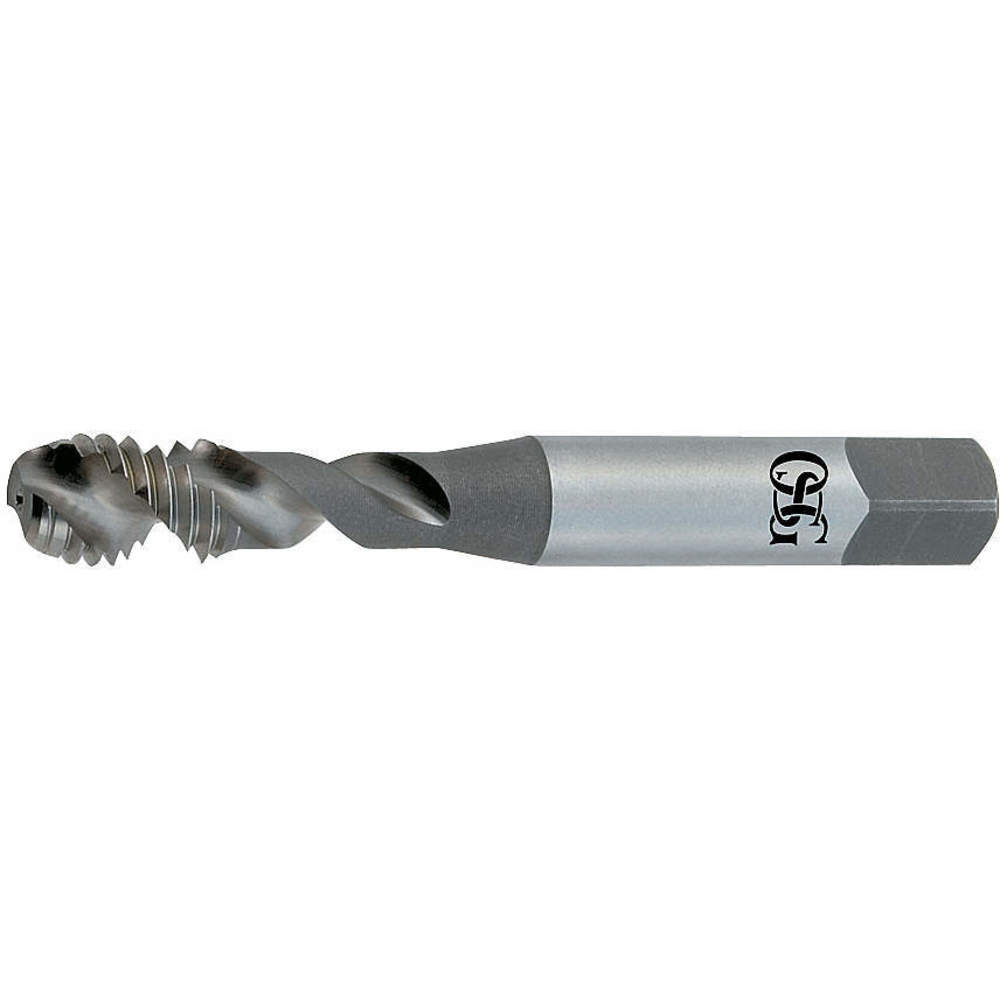

OSG 2954600 Spiral Flute Tap Modified Bottoming #10x32 Bright
Item: AG3NUVModel: 2954600Cross Ref: 33PD96
7 In Stock
Ships within 2 days via
10.00% off
€42.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 4.25 mm |
| 65% Thread Drill Size | 4.15 mm |
| 75% Thread Drill Size | #21 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.1575", 0.1596", 0.1616", 0.1636", 0.1656" |
| Extended Neck | Yes |
| Features | High Performance Spiral Flute Tap For Aluminum |
| Finish | Bright |
| Helix Angle | 50° |
| List Number | 295 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 295, Vanadium High Speed Steel |
| Measurement System | Pipe |
| Number Of Flutes | 2 |
| Overall Length | 2 11/32" |
| Pitch Diameter Limits | H5 |
| Pitch Type | 32 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Shank Dia. | 3/16" |
| Shank Length | 1 1/2" |
| Shank Type - Machining | Straight |
| Size | #10 |
| Square Size | 0.151" |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | #10-32 |
| Tap Type | Modified Bottom |
| Thread Direction | Right Hand |
| Thread Length | 5/16" |
| Thread Limit | H5 |
| Thread Limit/class Of Fit | H5 |
| Thread Size | #10-32 |
| Thread Standard | Unf |
| Thread Type | Fine |
| Threads Per Inch | 32 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.27 |
| HS code | 8207406000 |
Product Variants
| Model | Thread Length | Overall Length | Thread Size | 75% Thread Drill Size | Thread Limit | Thread Type | Pitch Diameter Limits | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2952600 | 3/16" | 2" | #6-32 | #36 | H3 | Coarse | H3 | 9/64" | €42.08 | |
| 2953200 | 1/4" | 2 3/32" | #8-32 | 3.4 | H3 | Coarse | H3 | 5/32" | €42.71 | |
| 2953800 | 5/16" | 2 11/32" | #10-24 | #25 | H3 | Coarse | H3 | - | €42.71 | |
| 2954400 | 5/16" | 2 11/32" | #10-32 | #21 | H3 | Fine | H3 | 3/16" | €43.59 | |
| 2955000 | 1" | 2 1/2" | - | - | - | Coarse | H3 | 0.191" | €47.12 | |

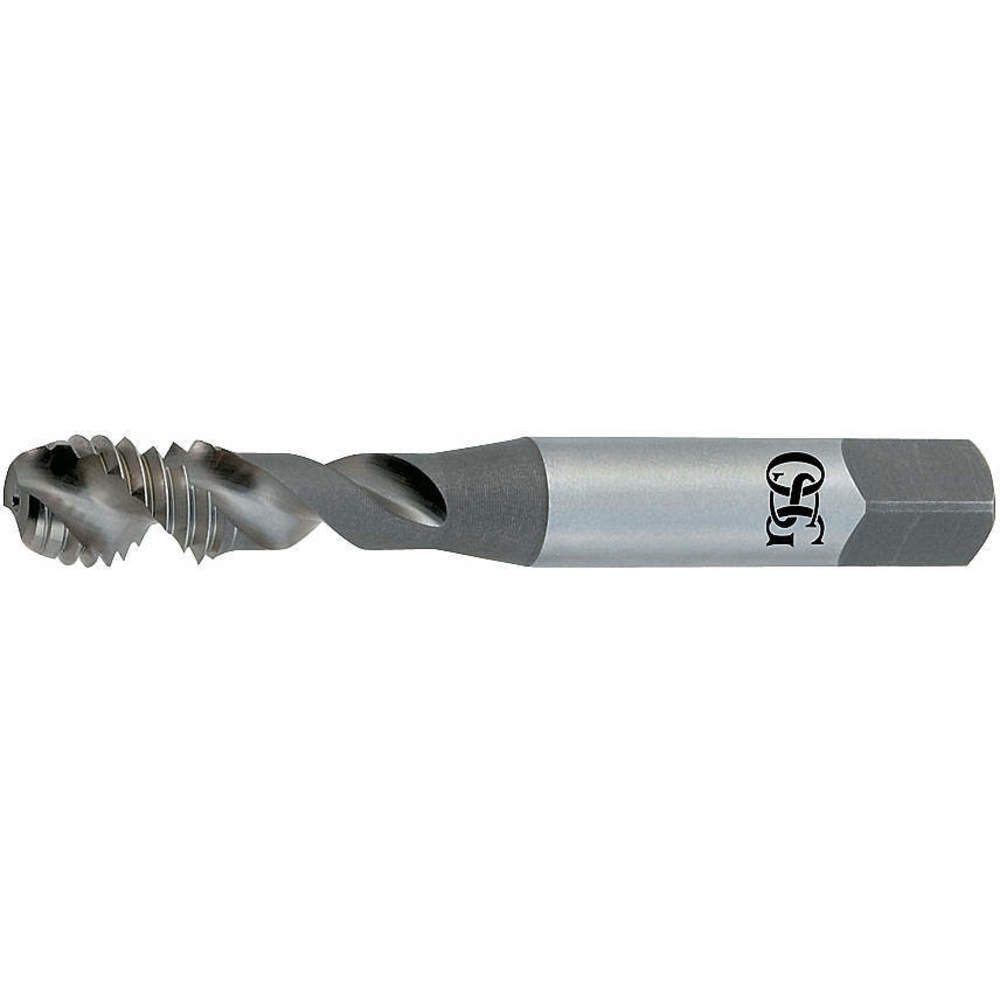

| 2963400 | 5 mm | 54 mm | M4 x 0.7 | 3.3 | D4 | Metric Coarse | D4 | 4.26 mm | €58.71 | |
| 2963600 | 8 mm | 63 mm | M6 x 1 | 5 mm | D5 | Metric Coarse | D5 | 6.47 mm | €58.71 |
