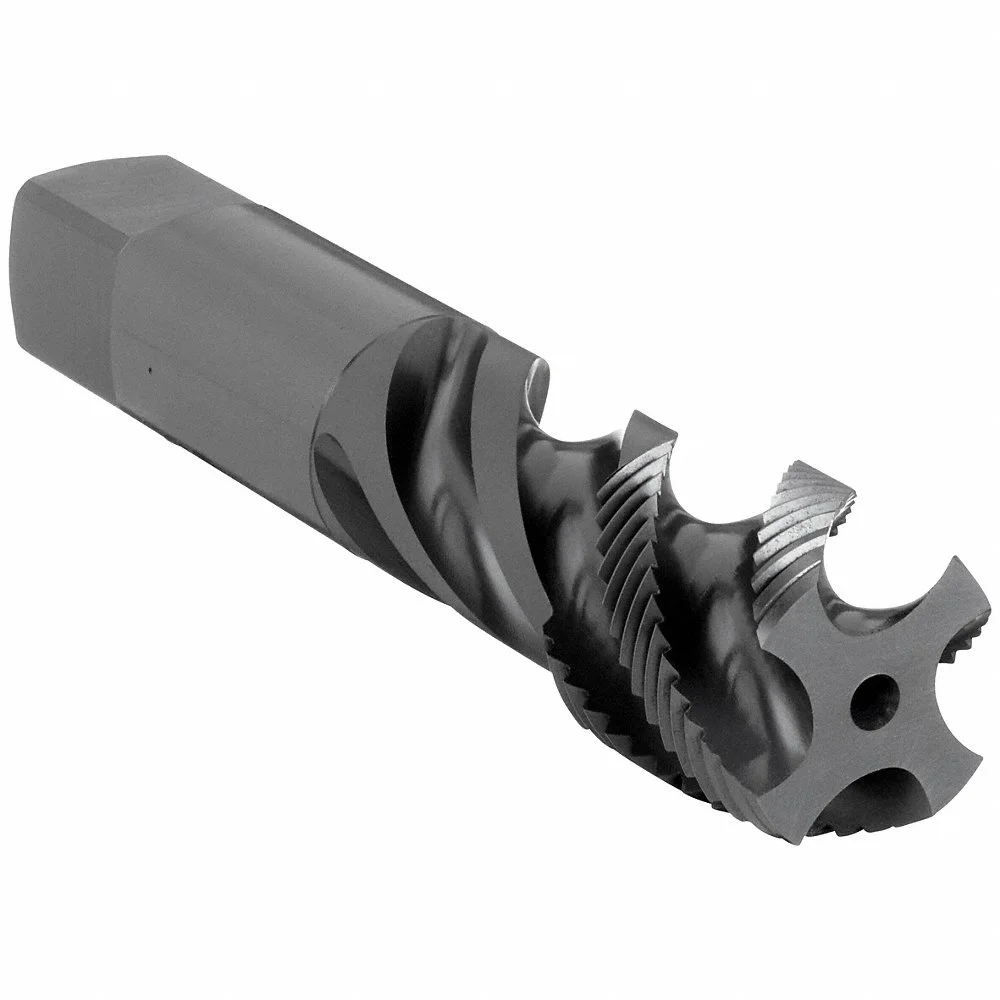

OSG 2948501 Spiral Flute Tap, 1-1/2-8 Thread Size, 1 5/16 Inch Thread Length, 6 11/32 Inch Length
Item: CT6LXHModel: 2948501Cross Ref: 2TTF5
7 In Stock
Ships within 2 days via
10.00% off
€1,074.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 65% Thread Drill Size | 1.3945" |
| 75% Thread Drill Size | 1.378" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 1.3701", 1.3782", 1.3863", 1.3945", 1.4026" |
| Extended Neck | Yes |
| Features | The Original In Do It All In Spiral Flute Tap, Good For All Materials |
| Finish | Black Oxide |
| Grade | Grade 290 |
| Helix Angle | 45° |
| Material Grade - Machining | Grade 290, Vanadium High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 6 11/32" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 1 7/32" |
| Shank Length | 2 3/4" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 0.925" |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1 1/2"-8 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 1 5/16" |
| Thread Limit | H6 |
| Thread Limit/class Of Fit | H6 |
| Thread Size | 1 1/2"-8 |
| Thread Standard | Special |
| Threads Per Inch | 8 |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Thread Length | Overall Length | 75% Thread Drill Size | Tap Finish | Thread Limit | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2918401 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Black Oxide | H5 | High Speed Steel | €34.82 | |
 |
2918400 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Bright | H5 | High Speed Steel | €38.98 | |
 |
2913400 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Bright | H3 | High Speed Steel | €39.67 | |
|
2913401 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | Black Oxide | H3 | High Speed Steel | €38.44 | |
 |
2913408 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | TiCN | H3 | High Speed Steel | €56.49 | |
|
2918408 | #10-24 | 3 | 5/16" | 2 11/32" | #25 | TiCN | H5 | High Speed Steel | €44.64 | |
 |
2213401 | #10-24 | 3 | 5/16" | 2 3/4" | #25 | Black Oxide | 2B | High Speed Steel | €42.70 |
