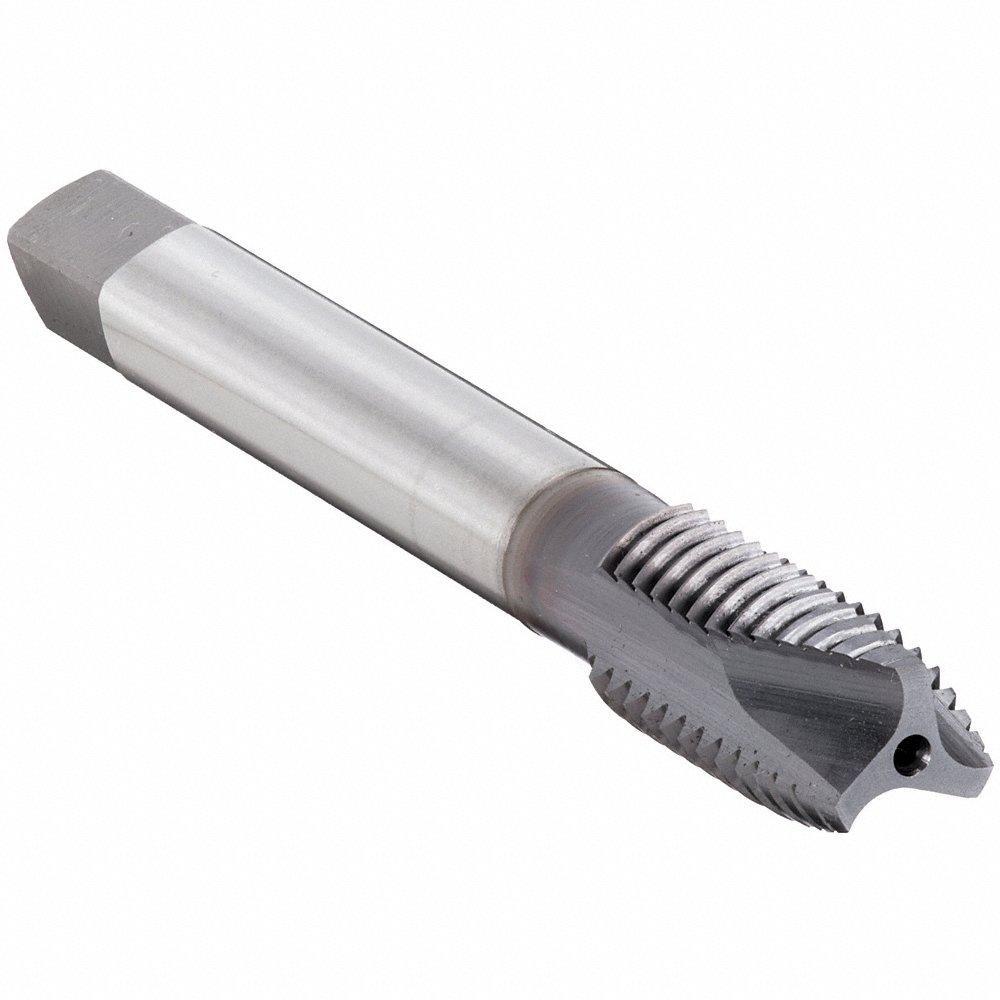

OSG 2891808 Spiral Point Tap, M10X1.5 Thread Size, 18 mm Thread Length, 74 mm Length, Right Hand
Item: CT6PJMModel: 2891808Cross Ref: 2PJF8
7 In Stock
Ships within 2 days via
10.00% off
€85.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 8.9 mm |
| 65% Thread Drill Size | 11/32" |
| 75% Thread Drill Size | 8.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 8.44 mm, 8.54 mm, 8.64 mm, 8.73 mm, 8.83 mm |
| Extended Neck | Yes |
| Finish | Titanium Carbonitride Coated |
| Fits Class | Class 6H |
| Number Of Flutes | 3 |
| Overall Length | 74 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Titanium |
| Secondary Material Application Iso Code | K, M, P, S3 |
| Shank Dia. | 9.67 mm |
| Shank Length | 42 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 7.26 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Material | High Speed Steel E |
| Tap Thread Size | M10 x 1.5 |
| Thread Direction | Right Hand |
| Thread Length | 18 mm |
| Thread Limit | D6 |
| Thread Limit/class Of Fit | D6, 6H |
| Thread Pitch | 1.5 mm |
| Thread Size | M10 x 1.5 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Number Of Flutes | Thread Limit | Tap Finish | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2511401 | #4-40 | 1/4" | 2 3/16" | 2.2 mm | 2 | 2B | Black Oxide | 9/64" | €34.75 | |
 |
2813400 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H3 | Bright | 3/32" | €30.65 | |
 |
2813401 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H3 | Black Oxide | 3/32" | €30.88 | |
|
2818401 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H5 | Black Oxide | 3/32" | €29.94 | |
|
2818400 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H5 | Bright | 3/32" | €29.94 | |
|
2813900 | #10-32 | 7/16" | 2 11/32" | #21 | 3 | H4 | Bright | 3/32" | €29.94 | |
|
2808800 | #10-32 | 7/16" | 2 11/32" | #21 | 3 | H2 | Bright | 3/32" | €29.94 |
