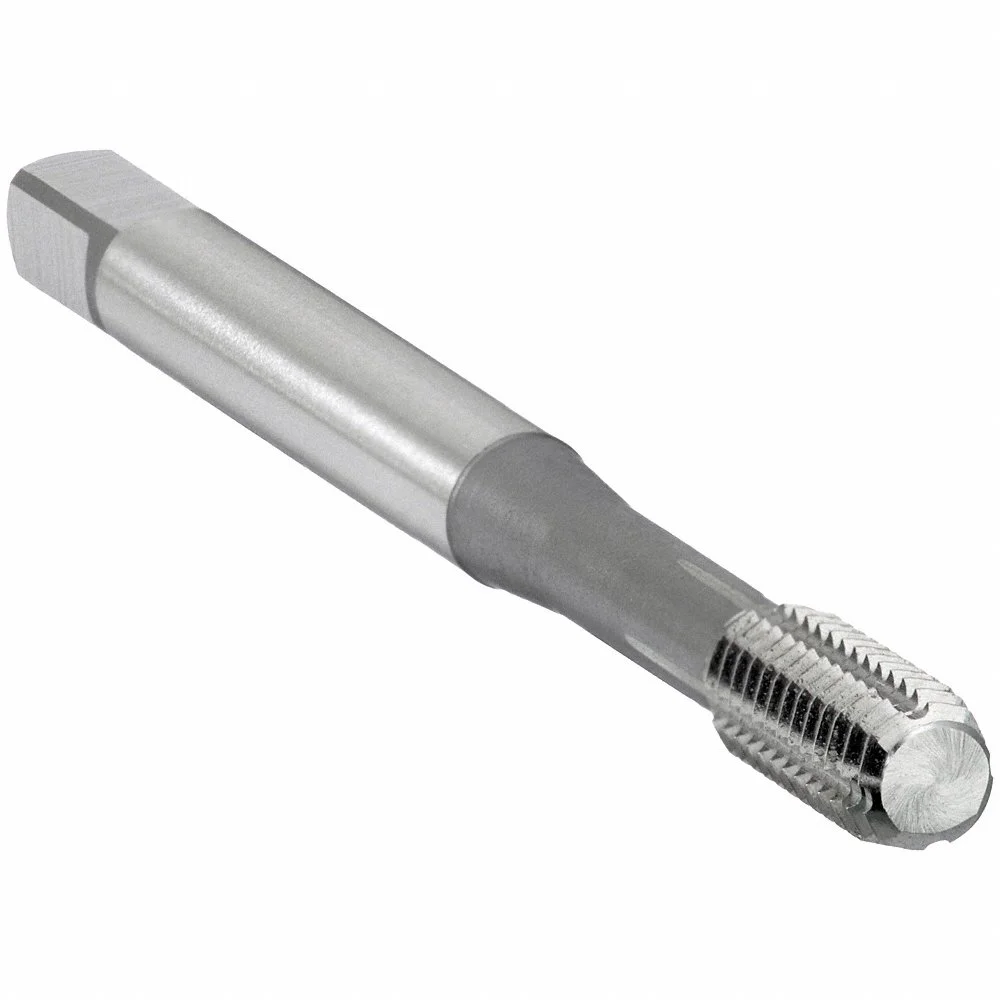

OSG 2868100 Thread Forming Tap, High Speed Steel, Bright, M3X0.5 Thread Size, 5/8 Inch Thread Length
Item: CT7ADTModel: 2868100Cross Ref: 6WGH1
7 In Stock
Ships within 2 days via
10.00% off
€26.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| 55% Thread Drill Size | #37 |
| 65% Thread Drill Size | #38 |
| 75% Thread Drill Size | 2.5 mm |
| Coolant Fed | Non Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | No |
| Finish | Bright |
| List Number | 286 |
| Material Grade - Machining | Grade 286 |
| No. Of Pieces | 1 |
| Number Of Flutes | 0 |
| Overall Length | 1 15/16" |
| Pitch Diameter Limit | Not Rated |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 9/64" |
| Shank Length | 1 5/16" |
| Spiral Direction | Neutral |
| Square Size | 0.11" |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Tap Material | High Speed Steel |
| Tap Style | Thread Forming |
| Tap Thread Type | Metric Coarse |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 5/8" |
| Thread Pitch | 0.5 mm |
| Thread Size | M3 x 0.5 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Thread Length | 75% Thread Drill Size | Overall Length | Thread Size | Tap Finish | Shank Dia. | Thread Standard | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2864200 | 5/16" | 1.2 mm | 1 5/8" | #0-80 | Bright | 9/64" | Unf | 1 5/16" | €29.97 | |
| 2865400 | 7/8" | 4.27 mm | 2 3/8" | #10-24 | Bright | 3/16" | Coarse | 1 1/2" | €21.71 | |
| 2865600 | 7/8" | 4.4 mm | 2 3/8" | #10-32 | Bright | 3/16" | Fine | 1 1/2" | €21.71 | |
| 2864400 | 7/16" | 1.73 mm | 1 3/4" | #2-56 | Bright | 9/64" | Coarse | 1 5/16" | €31.00 | |
| 2864600 | 1/2" | 2 mm | 1.812" | - | - | 0.141" | Coarse | 1.312" | €29.99 | |
| 2864800 | 9/16" | 2.2 mm | 1 7/8" | #4-40 | Bright | 9/64" | Coarse | 1 5/16" | €26.62 | |
| 2865000 | 11/16" | 3.1 mm | 2" | #6-32 | Bright | 9/64" | UNC | 1 5/16" | €21.71 |
