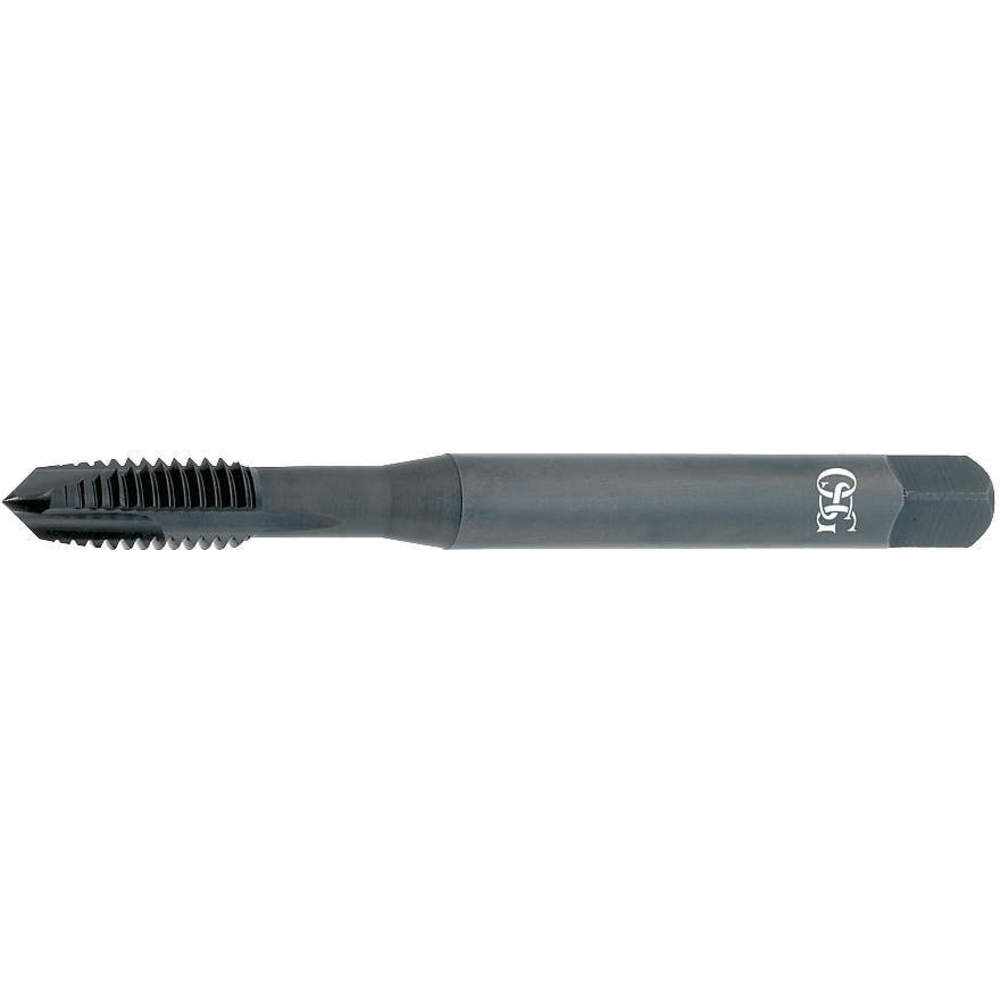

OSG 2591001 Spiral Point Tap Plug 6 x 1.00mm S/o
Item: AG3NTUModel: 2591001Cross Ref: 33PD72
7 In Stock
Ships within 2 days via
10.00% off
€38.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 5.25 mm |
| 65% Thread Drill Size | 13/64" |
| 75% Thread Drill Size | 5 mm |
| Class Of Fit | Class 6H |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 4.96 mm, 5.03 mm, 5.09 mm, 5.16 mm, 5.22 mm |
| Extended Neck | Yes |
| Finish | Black Oxide |
| List Number | 259 |
| Material | High Speed Steel |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 80 mm |
| Pitch Diameter Limits | 6H |
| Pitch Type | 1 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 6.47 mm |
| Shank Length | 50 mm |
| Shank Type - Machining | Straight |
| Size | M6 |
| Spiral Direction | Neutral |
| Square Size | 4.85 mm |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | HSS E |
| Tap Shank Standard | ANSI |
| Tap Thread Size | M6 x 1 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 12 mm |
| Thread Limit/class Of Fit | 6H |
| Thread Pitch | 1 mm |
| Thread Size | M6 x 1 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.27 |
| HS code | 8207406000 |
Product Variants
| Model | Thread Length | Overall Length | Thread Size | 75% Thread Drill Size | Shank Dia. | Thread Type | Size | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2591401 | 15 mm | 90 mm | M8 x 1.25 | H | 8.07 mm | Metric Coarse | M8 | Metric Coarse | €51.95 | |
| 2591701 | 18 mm | 100 mm | M10 x 1.25 | 0.3438" | 9.67 mm | Metric Fine | M10 | Metric Fine | €66.33 | |
| 2591801 | 32 mm | 100 mm | - | - | 7.2 mm | Metric Coarse | M10 | - | €72.71 | |
| 2593201 | 30 mm | 125 mm | M18 x 2.5 | 15.5 mm | 13.76 mm | Metric Coarse | M18 | Metric Coarse | €201.56 |
