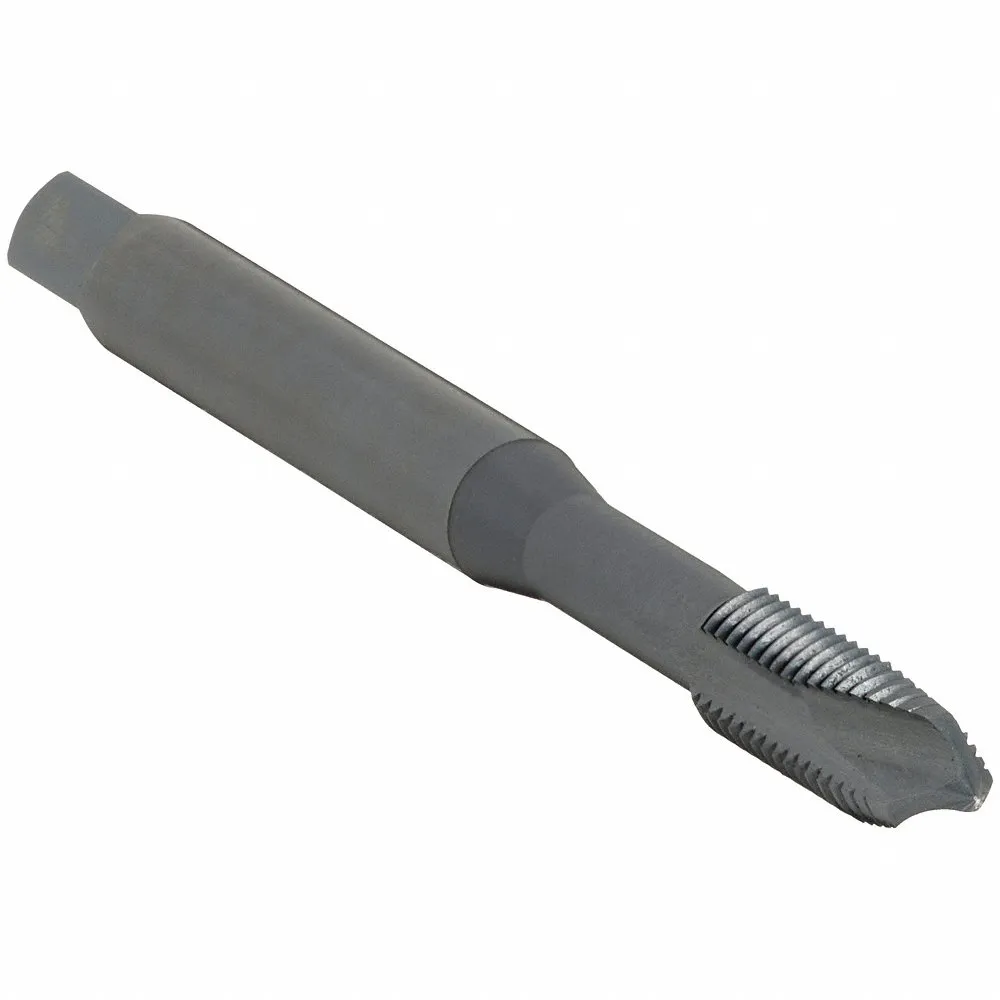

OSG 2531601 Spiral Point Tap, 3/8-16 Thread Size, 3/4 Inch Thread Length, 3 29/32 Inch Length
Item: CT6NZDModel: 2531601Cross Ref: 6WFW7
7 In Stock
Ships within 2 days via
10.00% off
€40.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 8.4 mm |
| 65% Thread Drill Size | P |
| 75% Thread Drill Size | 0.3125" |
| Class Of Fit | Class 2B |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.3101", 0.3141", 0.3182", 0.3222", 0.3263" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Measurement System | Fractional Inch |
| Number Of Flutes | 3 |
| Overall Length | 3 29/32" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Stainless Steel, Steel |
| Secondary Material Application Iso Code | K, M, P |
| Shank Dia. | 3/16" |
| Shank Length | 2 17/32" |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.285" |
| Standards | Ansi, Din |
| System Of Measurement | Imperial |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel E |
| Tap Shank Standard | ANSI |
| Tap Thread Size | 3/8"-16 |
| Thread Direction | Right Hand |
| Thread Length | 3/4" |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B, 2B |
| Thread Size | 3/8"-16 |
| Thread Standard | Coarse |
| Threads Per Inch | 16 |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Number Of Flutes | Thread Limit | Tap Finish | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2511401 | #4-40 | 1/4" | 2 3/16" | 2.2 mm | 2 | 2B | Black Oxide | 9/64" | €34.75 | |
 |
2813400 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H3 | Bright | 3/32" | €30.65 | |
 |
2813401 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H3 | Black Oxide | 3/32" | €30.88 | |
|
2818401 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H5 | Black Oxide | 3/32" | €29.94 | |
|
2818400 | #10-24 | 7/16" | 2 11/32" | #25 | 3 | H5 | Bright | 3/32" | €29.94 | |
|
2813900 | #10-32 | 7/16" | 2 11/32" | #21 | 3 | H4 | Bright | 3/32" | €29.94 | |
|
2808800 | #10-32 | 7/16" | 2 11/32" | #21 | 3 | H2 | Bright | 3/32" | €29.94 |
