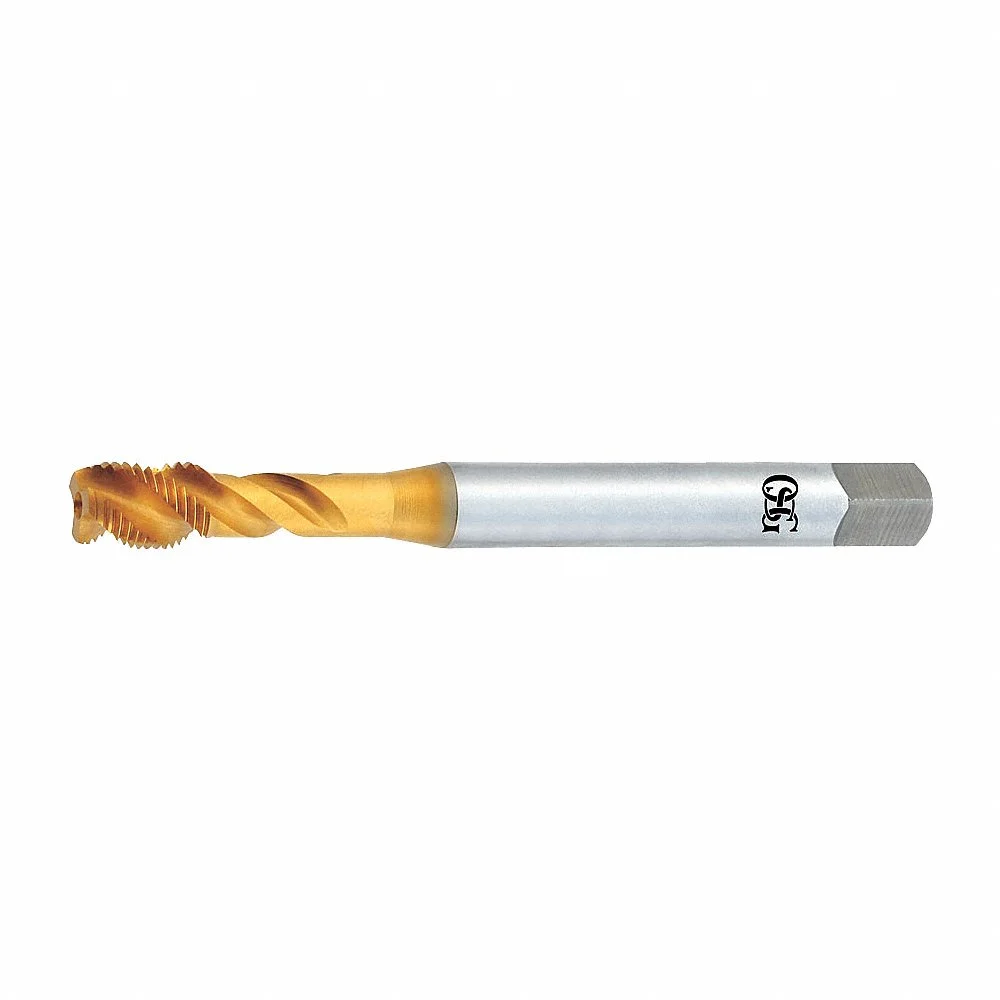

OSG 2334405 Spiral Point Tap, 1-8 Thread Size, 1 Inch Thread Lg, TiN, 2B, Modified Bottoming
Item: CT6NWZModel: 2334405Cross Ref: 6WFV7
7 In Stock
Ships within 2 days via
5.00% off
€612.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 29/32" |
| 65% Thread Drill Size | 57/64" |
| 75% Thread Drill Size | 22.25 mm |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 0.8701", 0.8782", 0.8863", 0.8945", 0.9026" |
| Extended Neck | Yes |
| Finish | Titanium Nitride Coated |
| Fits Class | Class 2B |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 6 9/32" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | All Materials |
| Secondary Material Application Iso Code | H, K, M, N, P1, P2 |
| Shank Dia. | 25/64" |
| Shank Length | 3 1/4" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 0.6" |
| Standards | Ansi, Din |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Tin |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel E |
| Tap Shank Standard | ANSI |
| Tap Thread Size | 1"-8 |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B |
| Thread Size | 1"-8 |
| Thread Standard | Coarse |
| Threads Per Inch | 8 |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.53 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Overall Length | 75% Thread Drill Size | Tap Finish | Thread Limit | Tap Material | Extended Neck | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2918401 | #10-24 | 3 | 2 11/32" | #25 | Black Oxide | H5 | High Speed Steel | Yes | €34.82 | |
 |
2918400 | #10-24 | 3 | 2 11/32" | #25 | Bright | H5 | High Speed Steel | Yes | €38.98 | |
 |
2913400 | #10-24 | 3 | 2 11/32" | #25 | Bright | H3 | High Speed Steel | Yes | €39.67 | |
|
2913401 | #10-24 | 3 | 2 11/32" | #25 | Black Oxide | H3 | High Speed Steel | Yes | €38.44 | |
 |
2913408 | #10-24 | 3 | 2 11/32" | #25 | TiCN | H3 | High Speed Steel | Yes | €56.49 | |
|
2918408 | #10-24 | 3 | 2 11/32" | #25 | TiCN | H5 | High Speed Steel | Yes | €44.64 | |
 |
2213401 | #10-24 | 3 | 2 3/4" | #25 | Black Oxide | 2B | High Speed Steel | Yes | €42.70 |
