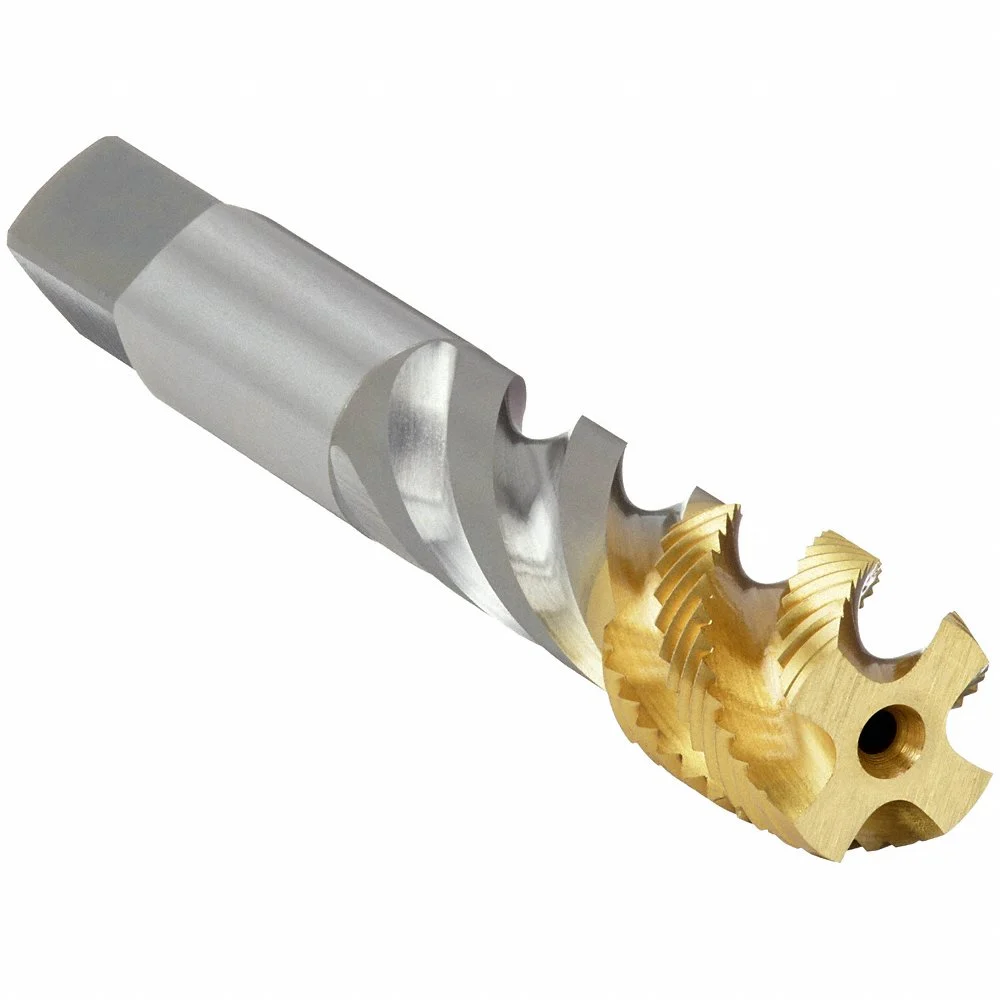

OSG 2333805 Spiral Flute Tap, 3/4 Inch Thread Lg, TiN, 2B, Modified Bottoming
Item: CT6MAUModel: 2333805Cross Ref: 2PHL7
7 In Stock
Ships within 2 days via
€268.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 17.9 mm |
| 65% Thread Drill Size | 17.7 mm |
| 75% Thread Drill Size | 17.5 mm |
| Class Of Fit | Class 2B |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 0.6851", 0.6891", 0.6932", 0.6972", 0.7013" |
| Extended Neck | Yes |
| Features | Din, Hsse, Spiral Flute, Tin Coating |
| Finish | Titanium Nitride Coated |
| Grade | Grade 230 |
| Helix Angle | 45° |
| Material Grade-machining | Grade 230, Vanadium High Speed Steel |
| Measurement System | Fractional Inch |
| No. Of Flutes | 4 |
| Overall Length | 4 5/16" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | All Materials |
| Secondary Material Application Iso Code | H, K, M, N, P1, P2 |
| Shank Dia. | 37/64" |
| Shank Length | 1 7/8" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Square Size | 0.442" |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiN |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 3/4"-16 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 3/4" |
| Thread Limit | 2B |
| Thread Limit/class Of Fit | 2B |
| Thread Size | 3/4"-16 |
| Thread Standard | Fine |
| Threads Per Inch | 16 |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.37 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Tap Finish | Thread Limit | Thread Standard | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2918401 | #10-24 | 5/16" | 2 11/32" | #25 | Black Oxide | H5 | Coarse | High Speed Steel | €32.71 | |
 |
2918400 | #10-24 | 5/16" | 2 11/32" | #25 | Bright | H5 | Coarse | High Speed Steel | €32.60 | |
 |
2913400 | #10-24 | 5/16" | 2 11/32" | #25 | Bright | H3 | Coarse | High Speed Steel | €33.17 | |
|
2913401 | #10-24 | 5/16" | 2 11/32" | #25 | Black Oxide | H3 | Coarse | High Speed Steel | €34.75 | |
 |
2913408 | #10-24 | 5/16" | 2 11/32" | #25 | TiCN | H3 | Coarse | High Speed Steel | €47.23 | |
|
2918408 | #10-24 | 5/16" | 2 11/32" | #25 | TiCN | H5 | Coarse | High Speed Steel | €37.33 | |
 |
2213401 | #10-24 | 5/16" | 2 3/4" | #25 | Black Oxide | 2B | Coarse | High Speed Steel | €35.70 |
