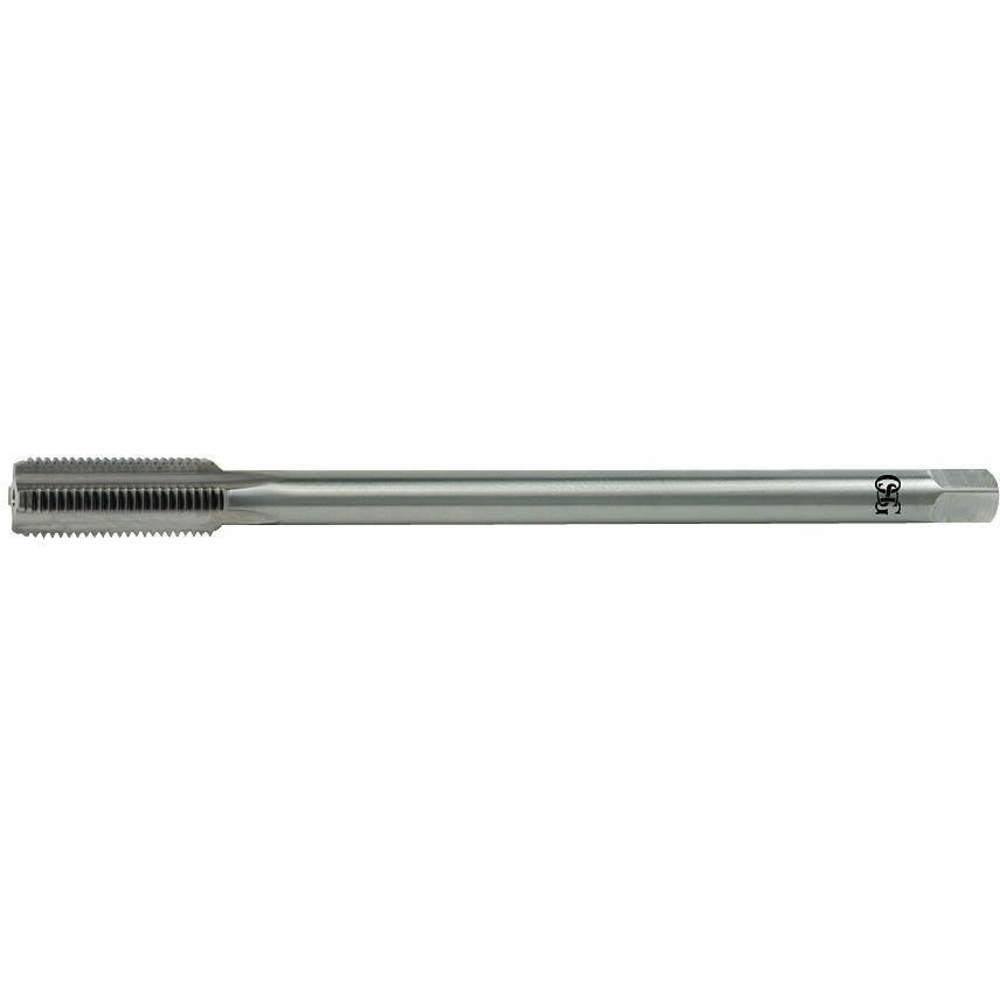

OSG 22949 Extension Tap, M10x1 Thread Size, 24 mm Thread Lg, 150.00 mm Overall Lg, Bright, Bottom
Item: AG4GNVModel: 22949Cross Ref: 33YZ58
7 In Stock
Ships within 2 days via
5.00% off
€650.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 9.25 mm |
| 65% Thread Drill Size | 23/64" |
| 75% Thread Drill Size | 9 mm |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | No |
| Extended Shank | Yes |
| Finish | Bright |
| List Number | 356 |
| Material | Carbide |
| Material Grade - Machining | Grade 356 |
| No. Of Pieces | 1 |
| Number Of Flutes | 4 |
| Overall Length | 150 mm |
| Pitch Diameter Limit | Not Rated |
| Pitch Diameter Limits | OH4 |
| Pitch Type | 1 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Composite, Copper |
| Primary Material Application Iso Code | K, N, O |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Shank Dia. | 7 mm |
| Shank Length | 126 mm |
| Size | M10 |
| Spiral Direction | Neutral |
| Square Size | 5.5 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Tap Material | Carbide |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M10 x 1 |
| Tap Thread Type | Metric Fine |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Length | 24 mm |
| Thread Limit | OH4 |
| Thread Pitch | 1 mm |
| Thread Size | M10 x 1 |
| Thread Type | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 0.76 |
| HS code | 8207400000 |
| Country of Origin | JP |
Product Variants
| Model | Number Of Flutes | Thread Size | Overall Length | 75% Thread Drill Size | Thread Limit | Shank Dia. | Thread Type | Pitch Diameter Limits | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1006101500 | 4 | M6 x 1 | 63 mm | 5 mm | D5 | 6.47 mm | Metric Coarse | D5 | €236.84 | |
| 1006101900 | 4 | M10 x 1.25 | 74 mm | 11/32" | D5 | 9.67 mm | Metric Fine | D5 | €423.32 | |
| 1006102000 | 4 | - | 100 mm | - | - | 9.7 mm | Metric Coarse | D6 | €423.32 | |
| 22800 | 3 | M1.4 x 0.3 | 34 mm | - | OH2 | 2.99 mm | Metric Coarse | OH2 | €397.26 | |
| 22801 | 3 | M1.6 x 0.35 | 36 mm | 1.25 mm | OH3 | 2.99 mm | Metric Coarse | OH3 | €354.59 | |
| 22802 | 3 | M1.7 x 0.35 | - | 1.36 mm | OH3 | 2.99 mm | Metric Coarse | OH3 | €354.59 | |
| 22803 | 3 | M1.8 x 0.35 | 36 mm | 1.45 mm | OH3 | 2.99 mm | Metric Coarse | OH3 | €354.59 |
