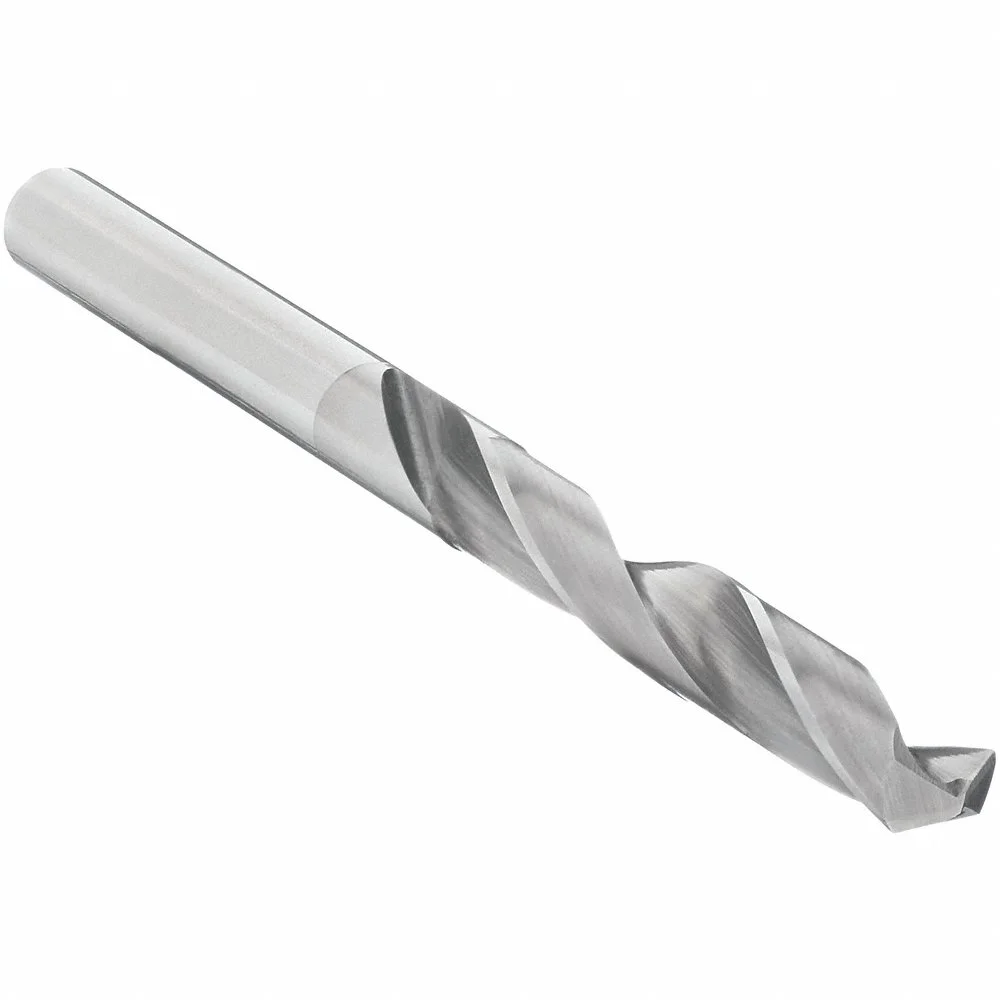

OSG 220-4331 Screw Machine Drill Bit, 11 mm Size, 114 mm Overall Length
Item: CT6HRQModel: 220-4331Cross Ref: 3CLF2
7 In Stock
0.433"
Ships within 2 days via
5.00% off
€169.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Application | For Alloy And Carbon Steel, Aluminum And Cast Iron |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4331 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | 11 mm |
| Drill Diameter Tolerance | -0.013 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 73 mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| List Number | 220D |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 73 mm |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 114 mm |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 11 mm |
| Shank Length | 41.3 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Flute Length | Drill Bit Size | Flute Type | Shank Dia. | Drill Bit Point Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
220-2280 | 2 3/4" | 0.228 | 1 3/4" | #1 | Spiral | 0.219" | 4 Facet Point | Non Coolant Through | €48.65 | |
 |
215-2280 | 2 7/16" | 0.228 | 1 5/16" | #1 | - | 0.219" | 4 Facet Point | Non Coolant Through | €54.59 | |
 |
215-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | - | 0.188" | 4 Facet Point | Non Coolant Through | €45.23 | |
|
220-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.87 | |
|
215-1910 | 2 1/4" | 0.191 | 1 3/16" | #11 | - | 0.188" | 4 Facet Point | - | €42.86 | |
|
220-1890 | 2 3/4" | 0.189 | 1 5/8" | #12 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.32 | |
|
215-1890 | 57 mm | 0.189 | - | #12 | Spiral | 4.8 mm | 4 Facet Point | Non Coolant Through | €43.70 |
