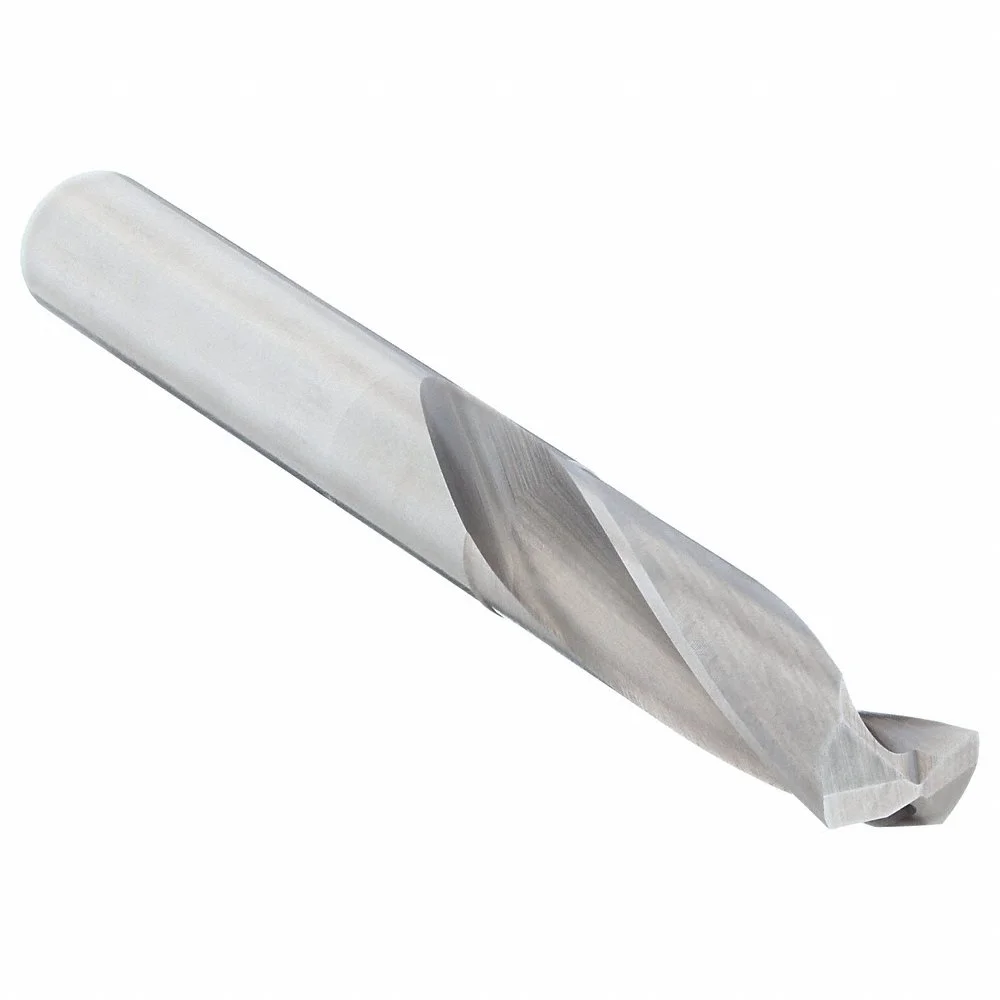

OSG 215-1065 Screw Machine Drill Bit, #36 Size, 1 13/16 Inch Overall Length, Carbide
Item: CT6HAYModel: 215-1065Cross Ref: 2PPG2
7 In Stock
0.106"
Ships within 2 days via
10.00% off
€21.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Application | For Aluminum, Cast Iron, Inconel, Stainless Steel, Titanium And Hardened Steel Under 35 Hrc |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1065 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | #36 |
| Drill Diameter Tolerance | -0.013 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 13/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| List Number | 215 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 20.6 mm |
| Measurement System | Wire |
| No. Of Pieces | 1 |
| Overall Length | 1 13/16" |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 0.094" |
| Shank Diameter | 3/32" |
| Shank Length | 25.4 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Sizes Included | #36 |
| Standards | Not Rated |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Drill Bit Size | Shank Dia. | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |
220-2280 | 2 3/4" | 0.228 | #1 | 0.219" | 44.5 mm | €48.65 | |
 |
215-2280 | 2 7/16" | 0.228 | #1 | 0.219" | 33.3 mm | €54.59 | |
|
215-1935 | 2 1/4" | 0.1935 | #10 | 0.188" | 30.2 mm | €45.23 | |
|
220-1935 | 2 1/4" | 0.1935 | #10 | 0.188" | 41.3 mm | €43.87 | |
|
215-1910 | 2 1/4" | 0.191 | #11 | 0.188" | 30.2 mm | €42.86 | |
|
220-1890 | 2 3/4" | 0.189 | #12 | 0.188" | 41.3 mm | €43.32 | |
|
215-1890 | 57 mm | 0.189 | #12 | 4.8 mm | 30.2 mm | €43.70 |
