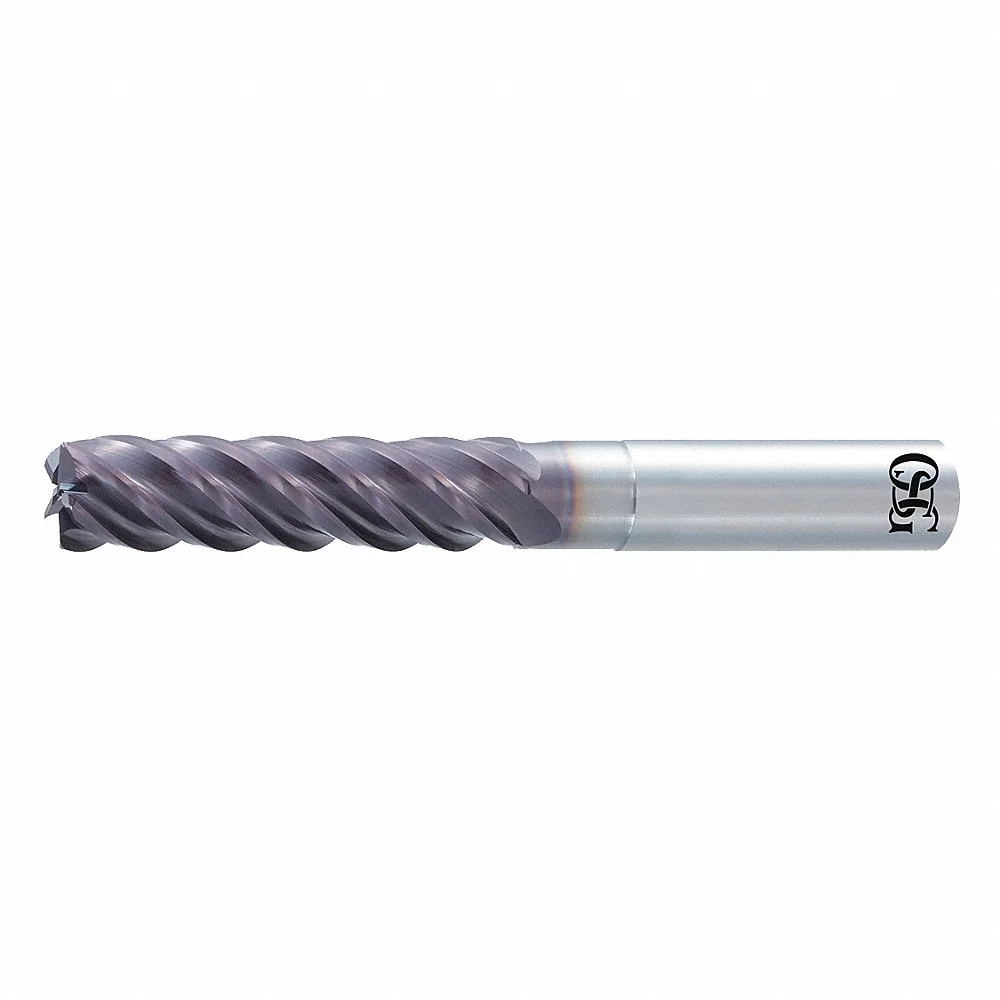

OSG 21080911 Corner Radius End Mill, 5 Flutes, 3/4 Inch Milling Dia, 1 1/2 Inch Length Of Cut
Item: CT4XATModel: 21080911Cross Ref: 56GA30
7 In Stock
Ships within 2 days via
10.00% off
€553.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Coolant Fed | Non Coolant Through |
| Corner Radius | 0.06" |
| Cutting Direction | Right Hand |
| Cutting Length | 1 1/2" |
| Cutting Type | Center Cutting |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Exo |
| Finish - Machining | EXO |
| Flute Type | Spiral |
| Helix Angle | Variable |
| List Number | 2108 |
| Material | Carbide |
| Material - Machining | Carbide |
| Max. Helix Angle | 43° |
| Milling Dia. | 3/4" |
| Min. Helix Angle | 41° |
| Neck Dia. | 23/32" |
| Neck Length | 2 1/4" |
| Number Of Flutes | 5 |
| Overall Length | 4 3/4" |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 3/4" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Milling Dia. | Cutting Direction | Shank Dia. | Number Of Flutes | Overall Length | List Number | Corner Radius | End Mill Cutting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 28631200 | 3/4" | Right Hand | 3/4" | 2 | 4" | 2863 | 0.03" | Center Cutting | €660.63 | |
| 28631600 | 3/4" | Right Hand | 3/4" | 2 | 4" | 2863 | 0.19" | Center Cutting | €632.42 | |
| 28631400 | 3/4" | Right Hand | 3/4" | 2 | 4" | 2863 | 0.09" | Center Cutting | €660.63 | |
| 28631300 | 3/4" | Right Hand | 3/4" | 2 | 4" | 2863 | 0.06" | Center Cutting | €660.63 | |
| 28632100 | 7/8" | Right Hand | 7/8" | 2 | 4" | 2863 | 3/25" | Center Cutting | €907.31 | |
| 28632200 | 7/8" | Right Hand | 7/8" | 2 | 4" | 2863 | 0.19" | Center Cutting | €868.59 | |
| 28631900 | 7/8" | Right Hand | 7/8" | 2 | 4" | 2863 | 0.06" | Center Cutting | €907.31 |
