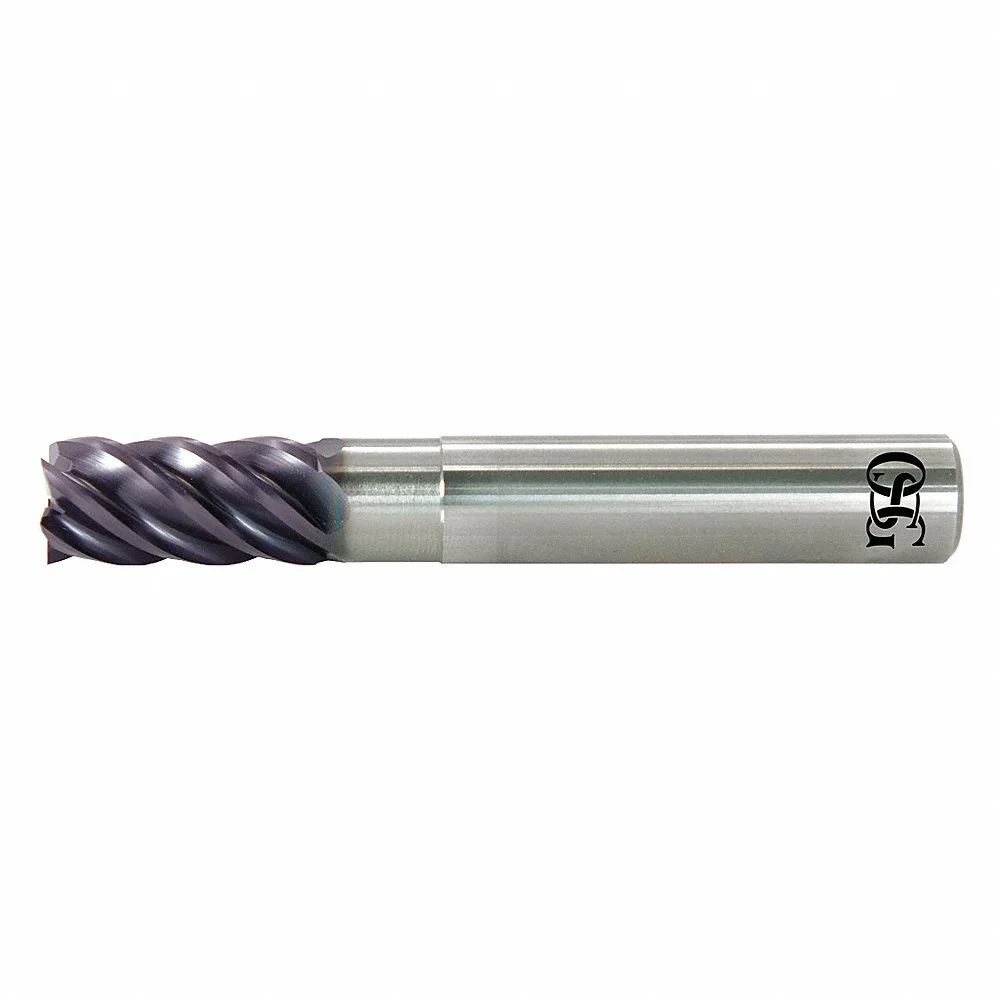

OSG 21020111 Square End Mill, Center Cutting, 5 Flutes, 5/8 Inch Milling Dia, 1 1/4 Inch Length Of Cut
Item: CT6VCJModel: 21020111Cross Ref: 56FZ85
7 In Stock
Ships within 2 days via
10.00% off
€394.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 1 1/4" |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Style | Square |
| End Type | Single End |
| Finish | Exo |
| Flute Type | Spiral |
| List Number | 2102 |
| Material | Carbide |
| Max. Helix Angle | 43° |
| Milling Dia. | 5/8" |
| Min. Helix Angle | 41° |
| Neck Dia. | 41/64" |
| Neck Length | 1 7/8" |
| Number Of Flutes | 5 |
| Overall Length | 4" |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 5/8" |
| Shank Type | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | End Mill Cutting Type | Overall Length | Number Of Flutes | Shank Dia. | List Number | Finish | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
21001711 | 1 1/4" | Center Cutting | 4" | 5 | 1 1/4" | 2100 | Exo | - | €963.31 | |
|
21020411 | 1 1/4" | Center Cutting | 6" | 5 | 1 1/4" | 2102 | Exo | - | €1,260.19 | |
 |
402-100011 | 1" | Center Cutting | 4" | 2 | 1" | 402 | TiAlN | - | €513.77 | |
|
402-500011 | 1/2" | Center Cutting | 3" | 2 | 1/2" | 402 | TiAlN | - | €131.84 | |
 |
462-500108 | 1/2" | Center Cutting | 4" | 2 | 1/2" | 462 | - | - | €162.95 | |
 |
412-500008 | 1/2" | Center Cutting | 2 1/2" | 2 | 1/2" | 412 | - | - | €116.04 | |
|
412-500011 | 1/2" | Center Cutting | 2 1/2" | 2 | 1/2" | 412 | TiAlN | - | €122.36 |
