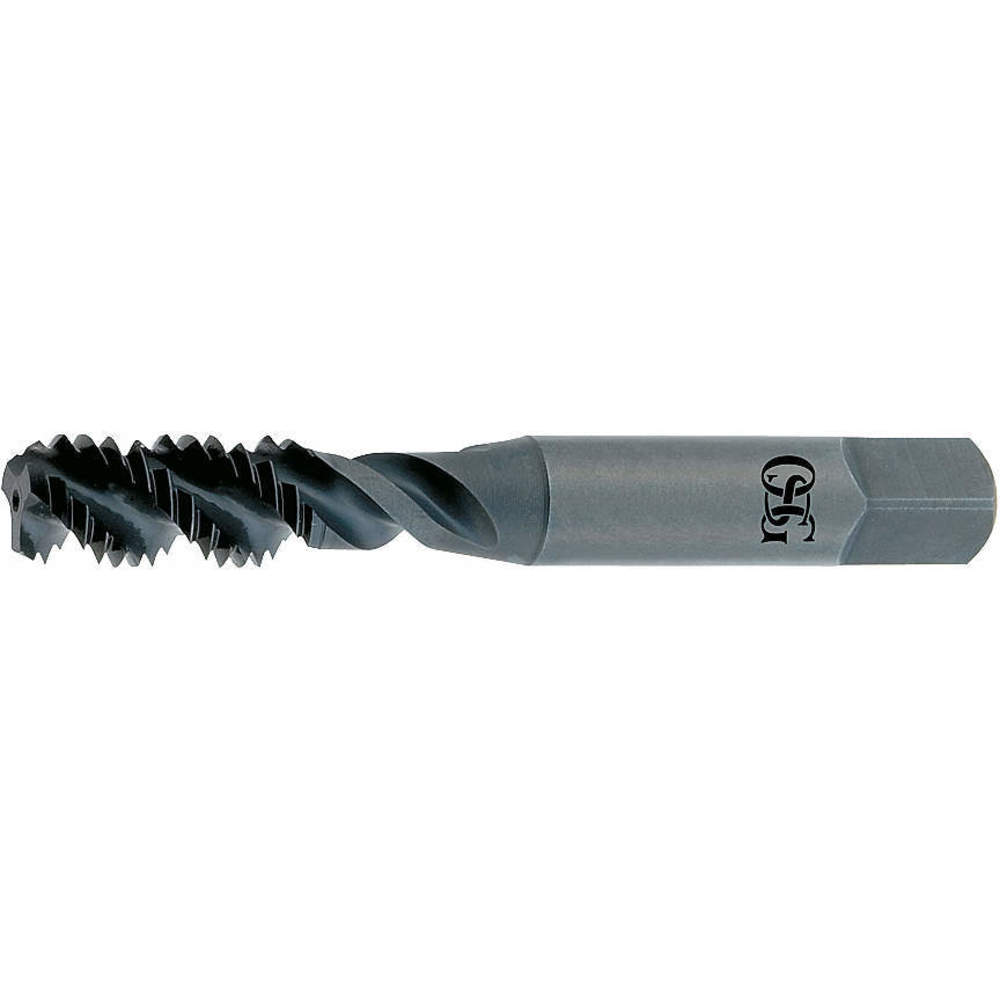

OSG 1985400 Spiral Flute Tap Plug 4x0.70mm Bright
Item: AG3NTRModel: 1985400Cross Ref: 33PD70
7 In Stock
Ships within 2 days via
10.00% off
€33.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 3.5 mm |
| 65% Thread Drill Size | 3.4 mm |
| 75% Thread Drill Size | 3.3 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 3.27 mm, 3.32 mm, 3.36 mm, 3.41 mm, 3.45 mm |
| Extended Neck | Yes |
| Features | Bright And Steam Oxide Surface Treatment, Complete Offering, For Blind Hole Applications, Hsse Material, Improves Wear Resistance For Extended Tap Life, Inch And Metric, Increased Wear Resistance Spiral Flute, S/O Increases Mechanical Lubricity Ticn Coating, Slow Spiral Efficient Chip Evacuation |
| Finish | Bright |
| Helix Angle | 50° |
| List Number | 143 |
| Material | High Speed Steel |
| Material Grade - Machining | Bright |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 54 mm |
| Pitch Diameter Limits | D4 |
| Pitch Type | 0.7 mm |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 4.26 mm |
| Shank Length | 35 mm |
| Shank Type - Machining | Straight |
| Size | M4 |
| Spiral Direction | Right Hand |
| Square Size | 3.33 mm |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Flute |
| Tap Thread Size | M4 x 0.7 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit | D4 |
| Thread Limit/class Of Fit | D4 |
| Thread Pitch | 0.7 mm |
| Thread Size | M4 x 0.7 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.27 |
| HS code | 8207406000 |
Product Variants
| Product | Model | Thread Length | Number Of Flutes | Overall Length | Thread Size | 75% Thread Drill Size | Thread Limit | Shank Dia. | Tap Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1009400 | 1 1/8" | 4 | 3 11/32" | 1/2"-13 | 27/64" | H10 | 23/64" | Bottoming | €47.78 | |
|
1013800 | 7/16" | 3 | 2" | #6-32 | #34 | H2 | 9/64" | Bottoming | €14.95 | |
 |
1068400 | 1/2" | 2 | - | #8-32 | 3.4 mm | H2 | 5/32" | Plug | €18.26 | |
|
1141400 | 7/8" | 4 | 2 29/32" | 3/8"-16 | 5/16" | H5 | 3/8" | Bottoming | €22.90 | |
|
1146100 | 1 13/16" | 4 | 5 3/32" | 1"-8 | 22.25 mm | H6 | 51/64" | Plug | €206.62 | |
 |
1202400 | 7/16" | 2 | 2 3/32" | #6-32 | #36 | H1 | 9/64" | Plug | €22.01 | |
 |
1205700 | 7/16" | 2 | 1 3/4" | #2-56 | 1.73 mm | H2 | 9/64" | Bottoming | €46.97 |
