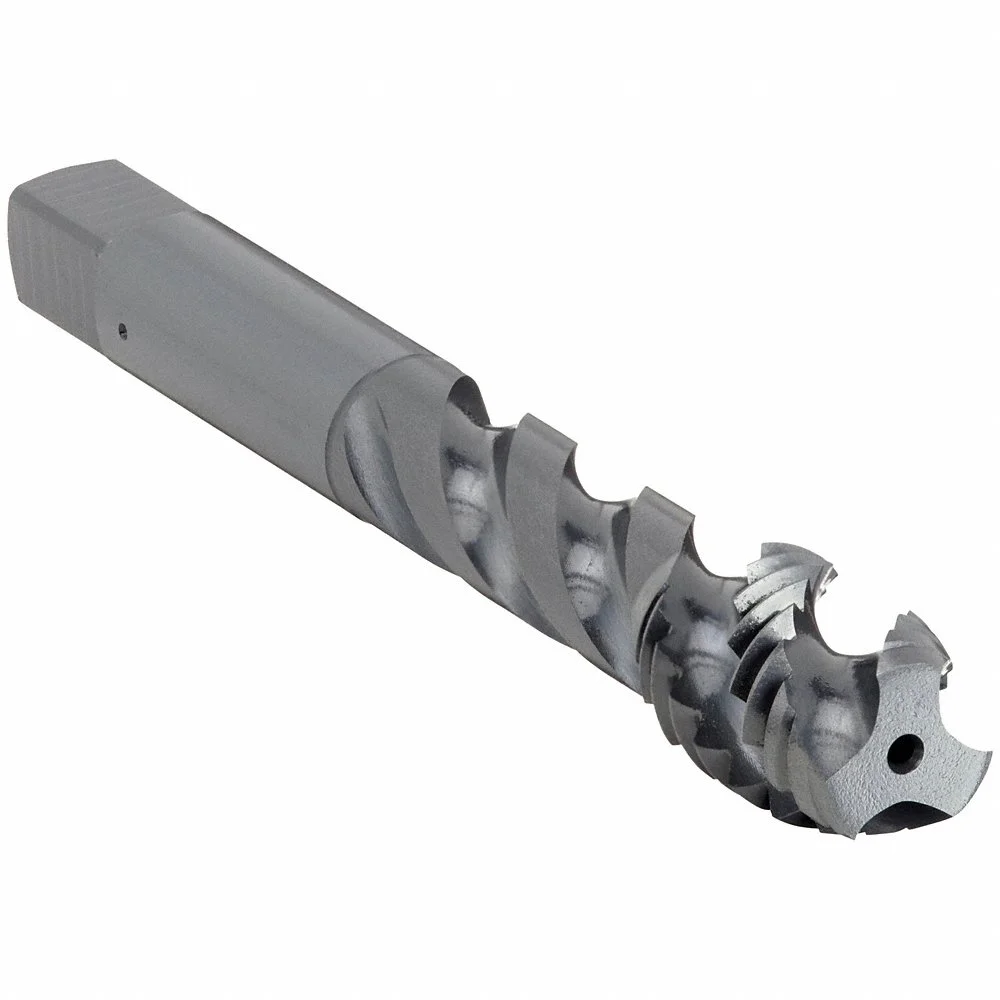

OSG 1756601 Spiral Flute Tap, M10X1.5 Thread Size, 12 mm Thread Length, 74 mm Length, Right Hand, D6
Item: CT6MNUModel: 1756601Cross Ref: 2PFD6
7 In Stock
Ships within 2 days via
5.00% off
€91.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 8.9 mm |
| 65% Thread Drill Size | 11/32" |
| 75% Thread Drill Size | 8.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 8.44 mm, 8.54 mm, 8.64 mm, 8.73 mm, 8.83 mm |
| Extended Neck | Yes |
| Features | Hsse Material Increased Wear Resistance, Inch And Metric Complete Offering, Spiral Flute For Blind Hole Applications |
| Finish | Black Oxide |
| Grade | Grade 343 |
| Helix Angle | 45° |
| Material Grade - Machining | Grade 343 |
| Number Of Flutes | 3 |
| Overall Length | 74 mm |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P1 |
| Shank Dia. | 9.67 mm |
| Shank Length | 42 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 7.26 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | M10 x 1.5 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 12 mm |
| Thread Limit | D6 |
| Thread Limit/class Of Fit | D6 |
| Thread Pitch | 1.5 mm |
| Thread Size | M10 x 1.5 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Number Of Flutes | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | Bottoming | €39.71 | |
 |
1645514207 | 3 | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | Modified Bottom | €224.64 | |
|
1645516205 | 3 | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | Modified Bottom | €249.37 | |
|
1645516207 | 3 | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | Modified Bottom | €249.37 | |
|
1645518257 | 4 | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | Modified Bottom | €345.18 | |
 |
0142008 | 2 | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | €59.46 | |
|
0142108 | 2 | 2 1/8" | - | - | - | - | 0.168" | Bottoming | €59.46 |
