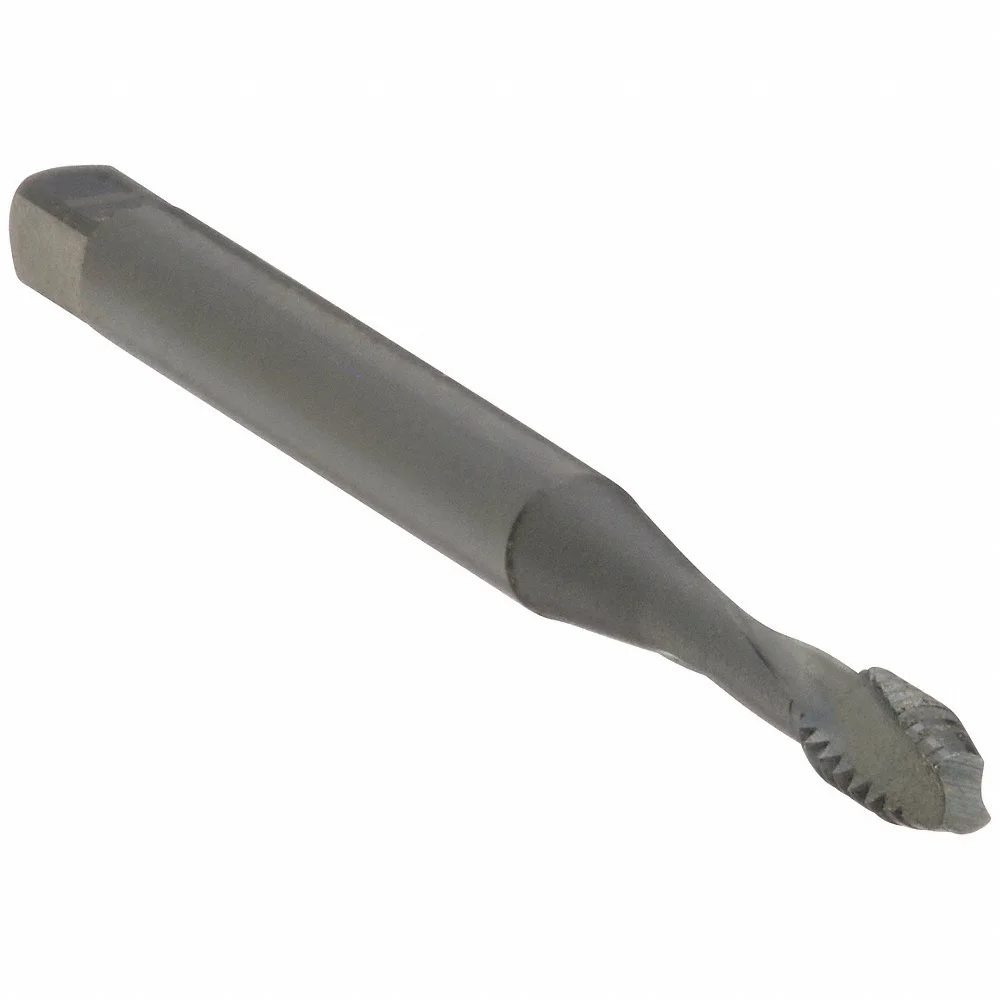

OSG 1752001 Spiral Flute Tap, #4-40 Thread Size, 3/16 Inch Thread Length, 1 27/32 Inch Length
Item: CT6LJUModel: 1752001Cross Ref: 2PEW7
7 In Stock
Ships within 2 days via
€47.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 3/32" |
| 65% Thread Drill Size | 2.3 mm |
| 75% Thread Drill Size | 2.2 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.086", 0.0876", 0.0893", 0.0909", 0.0925" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Grade | Grade 313 |
| Helix Angle | 15° |
| Material Grade-machining | Grade 313 |
| Measurement System | Pipe |
| No. Of Flutes | 2 |
| Overall Length | 1 27/32" |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P3 |
| Secondary Material Application | Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Secondary Material Application Iso Code | H, M, P, S |
| Shank Dia. | 9/64" |
| Shank Length | 1 9/32" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Square Size | 0.11" |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | Powdered Metal |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | #4-40 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 3/16" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2 |
| Thread Size | #4-40 |
| Thread Standard | Coarse |
| Threads Per Inch | 40 |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 0.4 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 2 1/2" | 1/4"-20 | TiN | H3 | #7 | 1/4" | Bottoming | Non Coolant Through | €27.80 | |
 |
1645514207 | 110 mm | M14 x 2 | TiN | D7 | 12 mm | 10.89 mm | Modified Bottom | Non Coolant Through | €157.25 | |
|
1645516205 | 110 mm | M16 x 2 | TiN | D5 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645516207 | 110 mm | M16 x 2 | TiN | D7 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645518257 | 125 mm | M18 x 2.5 | TiN | D7 | 16.5 | 13.76 mm | Modified Bottom | Non Coolant Through | €241.63 | |
 |
0142008 | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | Non Coolant Through | €41.62 | |
|
0142108 | 2 1/8" | - | - | - | - | 0.168" | Bottoming | - | €41.62 |
