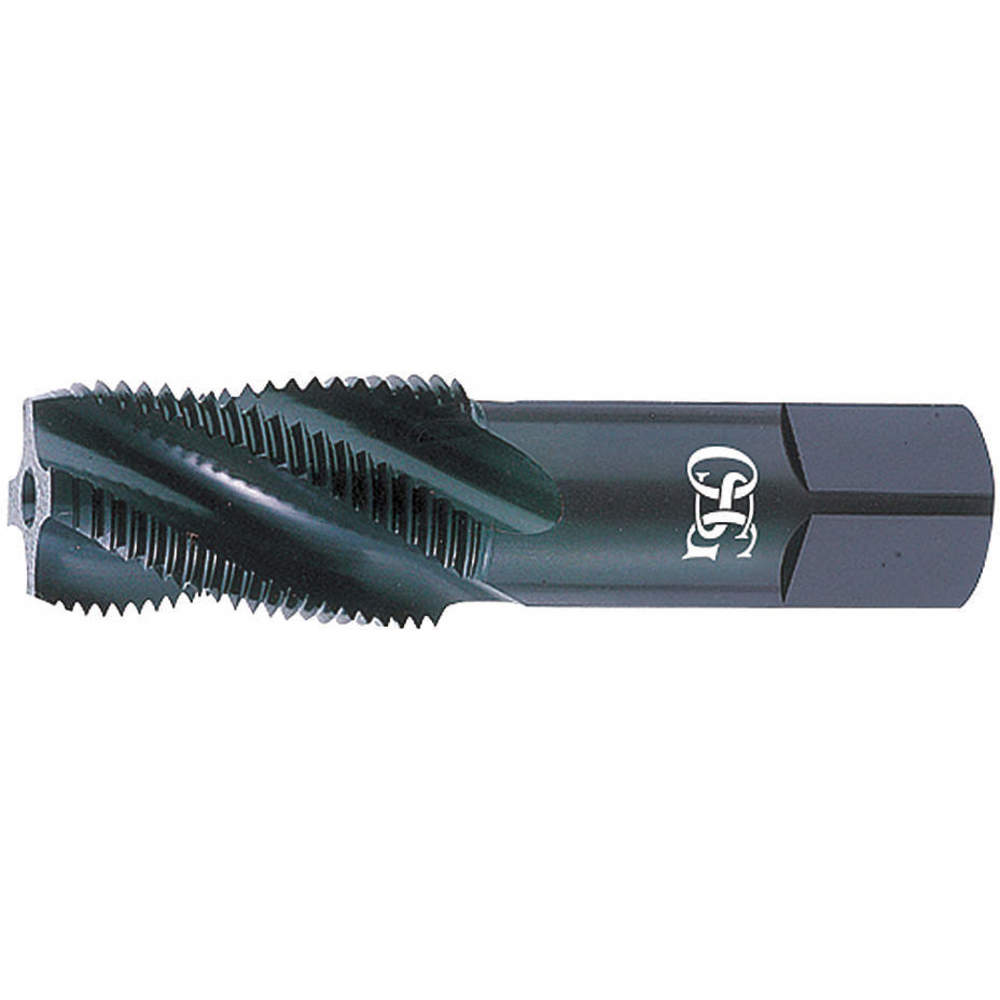

OSG 1738005 Pipe Tap Pipe 1/2 Inch x 14 S/O
Item: AG4JKGModel: 1738005Cross Ref: 33ZL60
7 In Stock
Ships within 2 days via
10.00% off
€161.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Tap |
| 75% Thread Drill Size | 0.7031" |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 11/16", 45/64" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Helix Angle | 15° |
| List Number | 318 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 318 |
| Max. Projection | 0.579" |
| No. Of Pieces | 1 |
| Number Of Flutes | 4 |
| Overall Length | 3 7/64" |
| Pitch Diameter Limits | H5 |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 43/64" |
| Shank Length | 1 47/64" |
| Size | 1/2" |
| Square Size | 0.514" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Modified Bottom, Semi Bottom |
| Tap Finish | Tin |
| Tap Grouping | Tap |
| Tap Length Standard | ANSI |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Style | Pipe |
| Tap Thread Size | 1/2"-14 |
| Tap Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 1 23/64" |
| Thread Size | 1/2"-14 |
| Thread Standard | NPTF |
| Thread Type | NPTF |
| Threads Per Inch | 14 |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 8207400000 |
Product Variants
| Product | Model | Thread Length | Overall Length | 75% Thread Drill Size | Thread Size | Tap Chamfer | Shank Dia. | Shank Length | Square Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

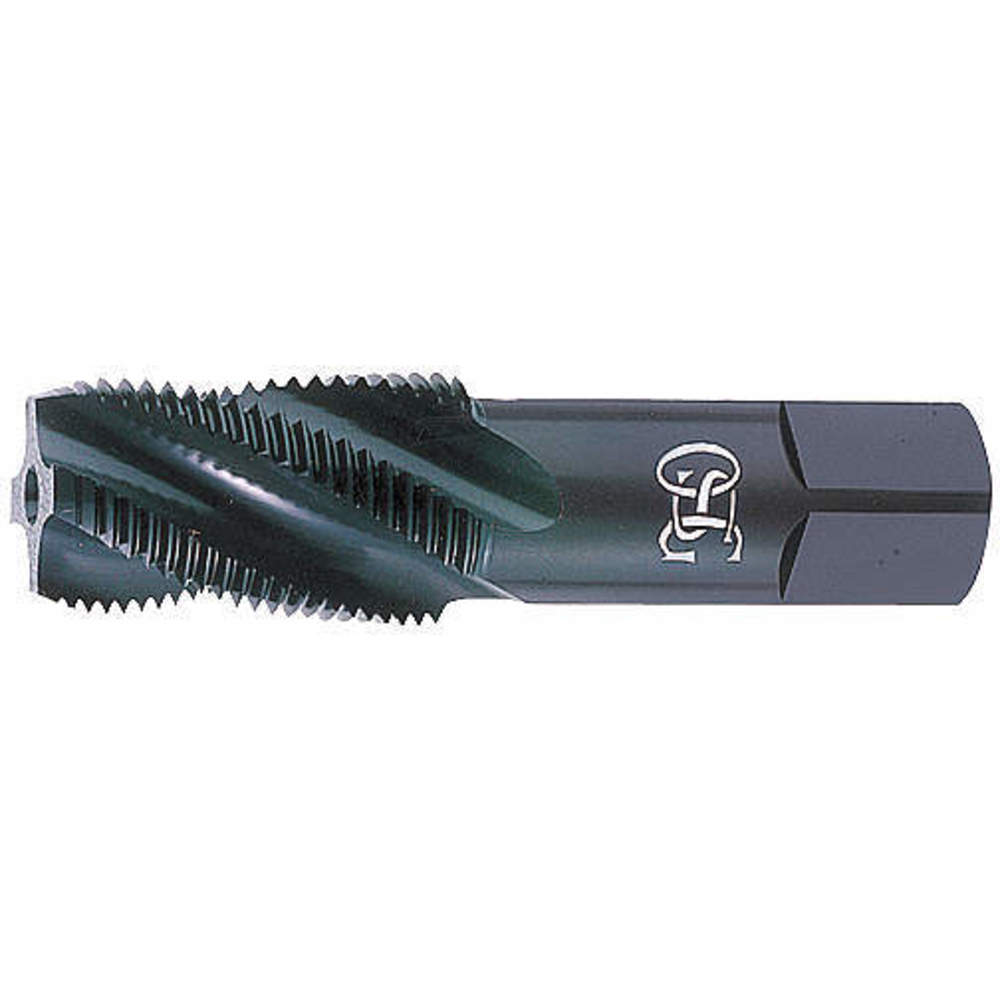

1735005 | 11/16" | 2 7/64" | C | 1/16"-27 | Modified Bottom, Semi Bottom | 5/16" | 1 3/16" | 0.234" | €76.93 | |
 |
1735105 | 3/4" | 2 7/64" | Q | 1/8"-27 | Modified Bottom, Semi Bottom | 7/16" | 1 1/8" | 0.328" | €84.41 | |
|
1735205 | 3/4" | 2 7/64" | Q | 1/8"-27 | Modified Bottom, Semi Bottom | 5/16" | 1 23/64" | 0.234" | €83.15 | |
|
1735405 | 1 5/64" | 2 35/64" | 0.5625" | 3/8"-18 | Modified Bottom, Semi Bottom | 11/16" | 1 13/64" | 0.531" | €120.89 | |
|
1735505 | 1 3/8" | 3 1/8" | - | - | Taper | 0.688" | 1 45/64" | 0.515" | €189.39 | |
|
1744905 | 1 3/4" | 3 3/4" | 1.1406" | - | Modified Bottom, Semi Bottom | 1 1/8" | 1 63/64" | 0.843" | €405.02 | |
|
1737505 | 11/16" | 2 7/64" | C | 1/16"-27 | Modified Bottom, Semi Bottom | 19/64" | 1 3/16" | 0.233" | €73.95 |
