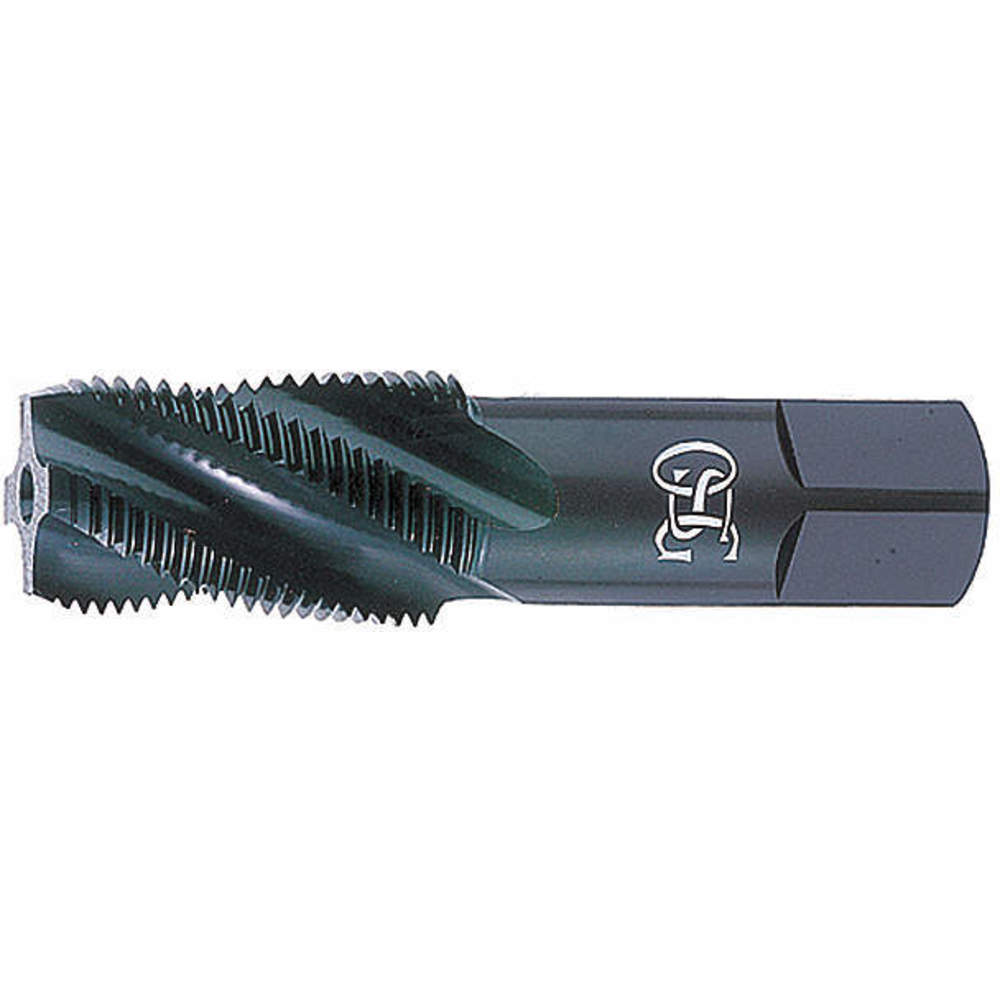

OSG 1735305 Pipe and Conduit Thread Tap, 1/4 Inch - 18 Thread Size, 1 5/64 Inch Thread Lg, TiN
Item: AG3NTHModel: 1735305Cross Ref: 33PD62
7 In Stock
Ships within 2 days via
5.00% off
€95.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Tap |
| 75% Thread Drill Size | 0.4375" |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 27/64", 7/16" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Helix Angle | 15° |
| List Number | 308 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 308 |
| Max. Projection | 0.459" |
| No. Of Pieces | 1 |
| Number Of Flutes | 4 |
| Overall Length | 2 27/64" |
| Pitch Diameter Limit | Not Rated |
| Pitch Diameter Limits | 2.5P |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 9/16" |
| Shank Length | 1 5/64" |
| Size | 1/4" |
| Square Size | 0.421" |
| System Of Measurement | Fractional Inch |
| Tap Finish | Tin |
| Tap Grouping | Tap |
| Tap Length Standard | ANSI |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Style | Pipe |
| Tap Thread Size | 1/4"-18 |
| Tap Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 1 5/64" |
| Thread Size | 1/4"-18 |
| Thread Standard | NPT |
| Threads Per Inch | 18 |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.91 |
| HS code | 8207504060 |
| Country of Origin | MX |
Product Variants
| Product | Model | Thread Size | Tap Finish | Overall Length | 75% Thread Drill Size | Number Of Flutes | Thread Limit | Shank Dia. | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

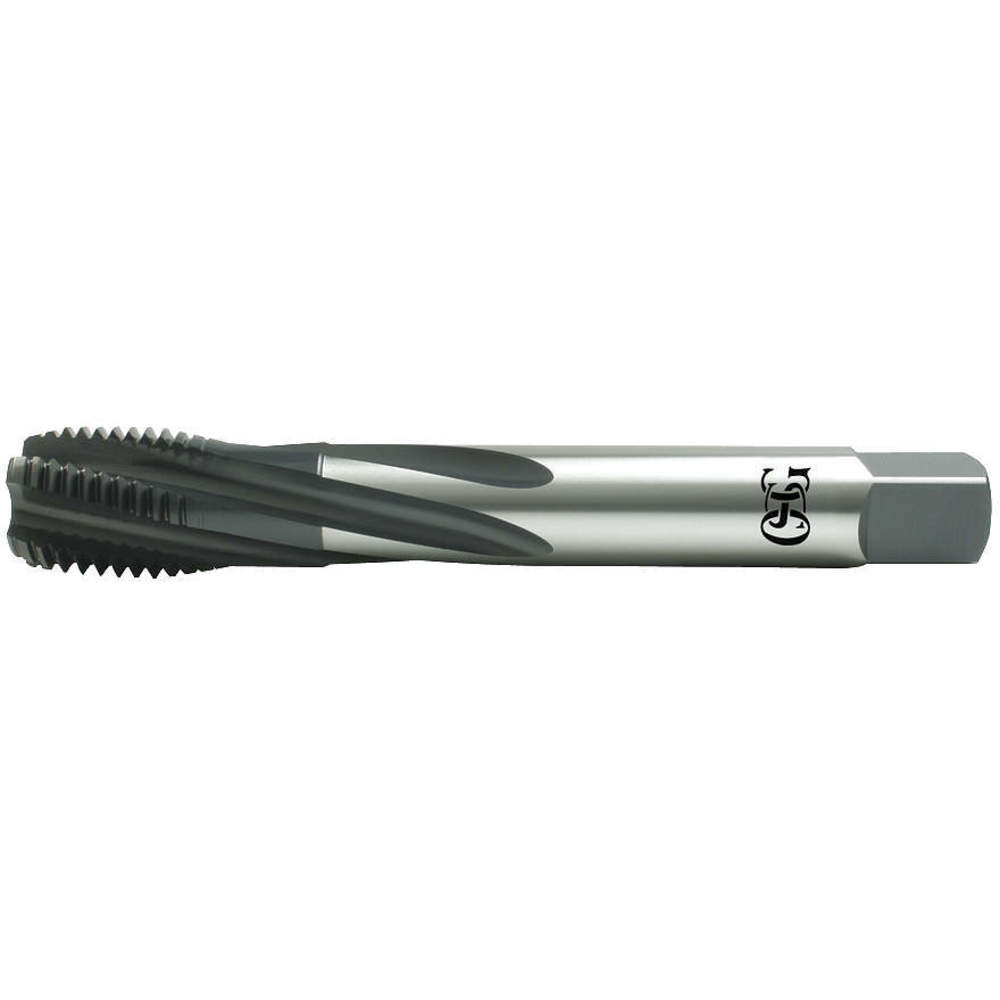

1311602301 | M16 x 2 | Black Oxide | 110 mm | 14 mm | 4 | D17 | 12.19 mm | Metric Coarse | €196.72 | |
 |

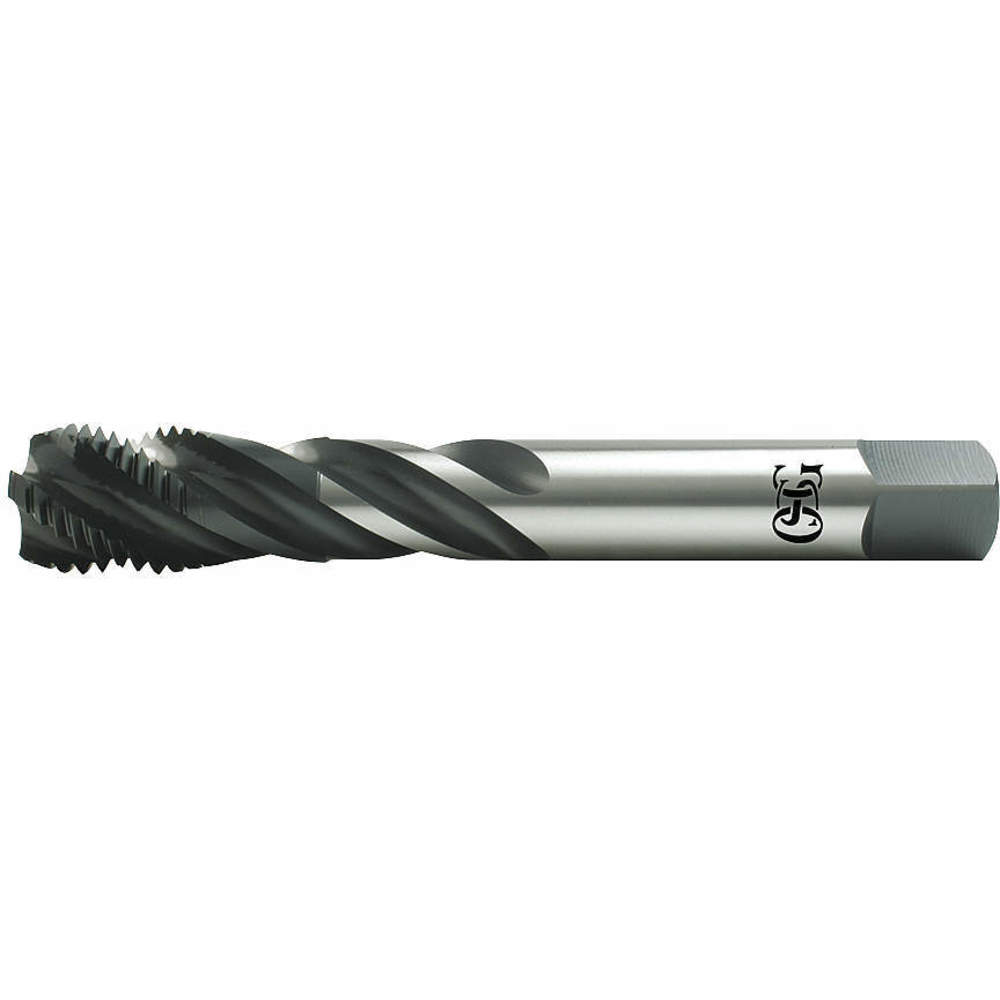

1311700101 | M20 x 2.5 | Black Oxide | 140 mm | 17.5 | 4 | D8 | 16.56 mm | Metric Coarse | €313.07 | |
|
1311700801 | M30 x 3.5 | Black Oxide | 180 mm | 26.59 | 4 | D10 | 25.93 mm | Metric Coarse | €650.83 | |
 |

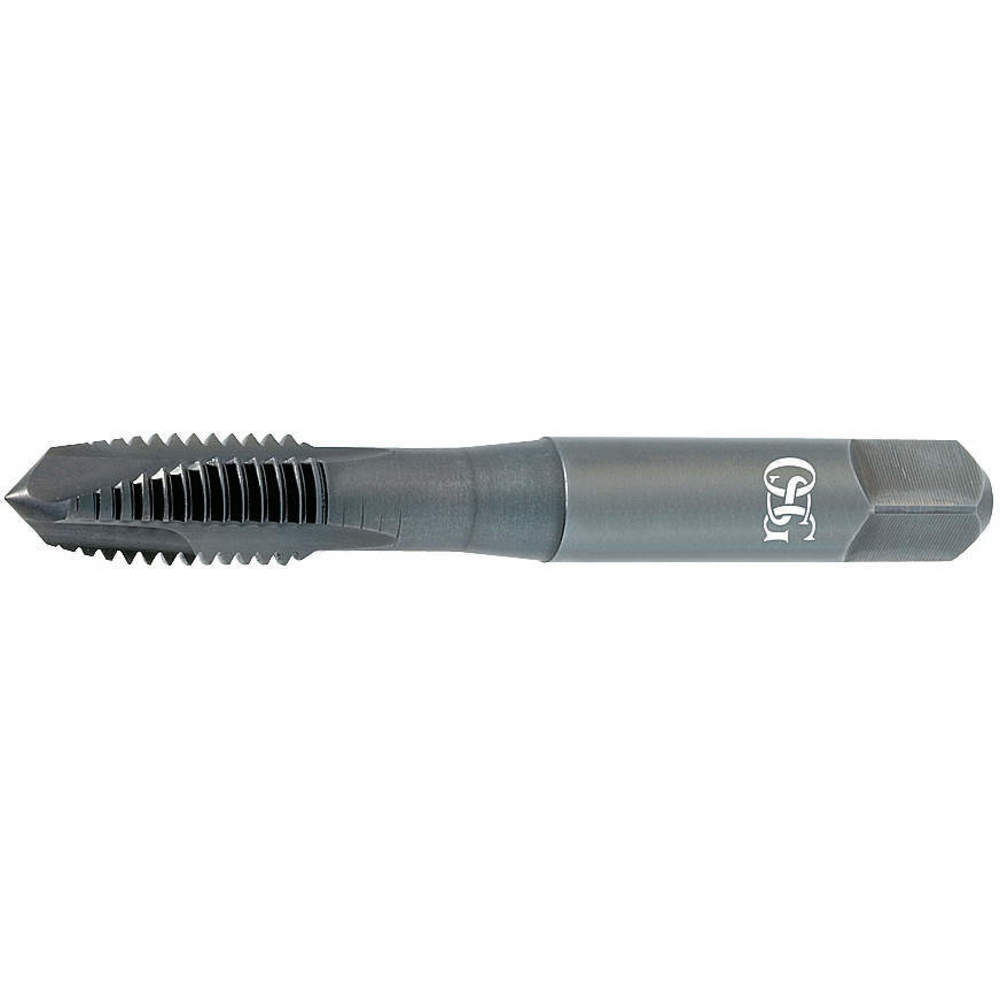

1729201 | 3/8"-16 | Black Oxide | 2 29/32" | 0.3125" | 3 | H7 | 3/16" | UNC | €47.99 | |
 |
2823401 | #10-24 | Black Oxide | 2 11/32" | #25 | 3 | H11 | 3/32" | UNC | €29.46 | |
|
2846801 | 1 1/2"-12 | Black Oxide | 6 11/32" | 1.4188" | 4 | H5 | 41/64" | Unf | €1,102.31 |
