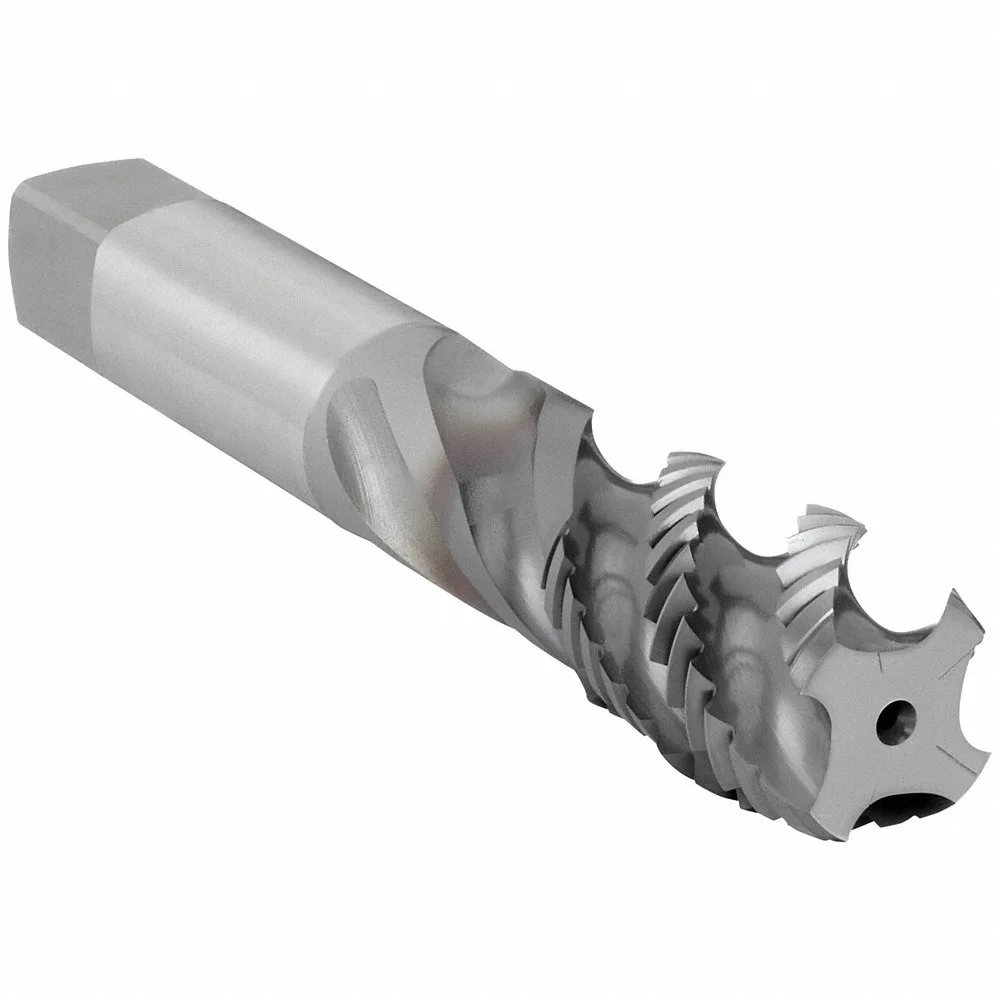

OSG 1650508208 Spiral Flute Tap, 1-1/2-12 Thread Size, 13/16 Inch Thread Lg, TiCN, H8, Semi-Bottoming
Item: CT6LXDModel: 1650508208Cross Ref: 54MG26
7 In Stock
1.41"
Ships within 2 days via
€616.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 65% Thread Drill Size | 1.4296" |
| 75% Thread Drill Size | 1.419" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 1.4134", 1.4188", 1.4242", 1.4296", 1.4351" |
| Extended Neck | Yes |
| Features | Any Application, Any Material, Any Time |
| Finish | Titanium Carbonitride Coated |
| Grade | Grade 16505, Grade VC-10 |
| Material Grade-machining | Grade 16505, VC 10 |
| Measurement System | Fractional Inch |
| No. Of Flutes | 4 |
| Overall Length | 6 11/16" |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 1 7/32" |
| Shank Length | 3 3/32" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Square Size | 0.925" |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1 1/2"-12 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 13/16" |
| Thread Limit | H8 |
| Thread Limit/class Of Fit | H8 |
| Thread Size | 1 1/2"-12 |
| Thread Standard | Fine |
| Threads Per Inch | 12 |
Shipping Info:
| Ship weight (kg) | 0.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 2 1/2" | 1/4"-20 | TiN | H3 | #7 | 1/4" | Bottoming | Non Coolant Through | €27.80 | |
 |
1645514207 | 110 mm | M14 x 2 | TiN | D7 | 12 mm | 10.89 mm | Modified Bottom | Non Coolant Through | €157.25 | |
|
1645516205 | 110 mm | M16 x 2 | TiN | D5 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645516207 | 110 mm | M16 x 2 | TiN | D7 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645518257 | 125 mm | M18 x 2.5 | TiN | D7 | 16.5 | 13.76 mm | Modified Bottom | Non Coolant Through | €241.63 | |
 |
0142008 | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | Non Coolant Through | €41.62 | |
|
0142108 | 2 1/8" | - | - | - | - | 0.168" | Bottoming | - | €41.62 |
