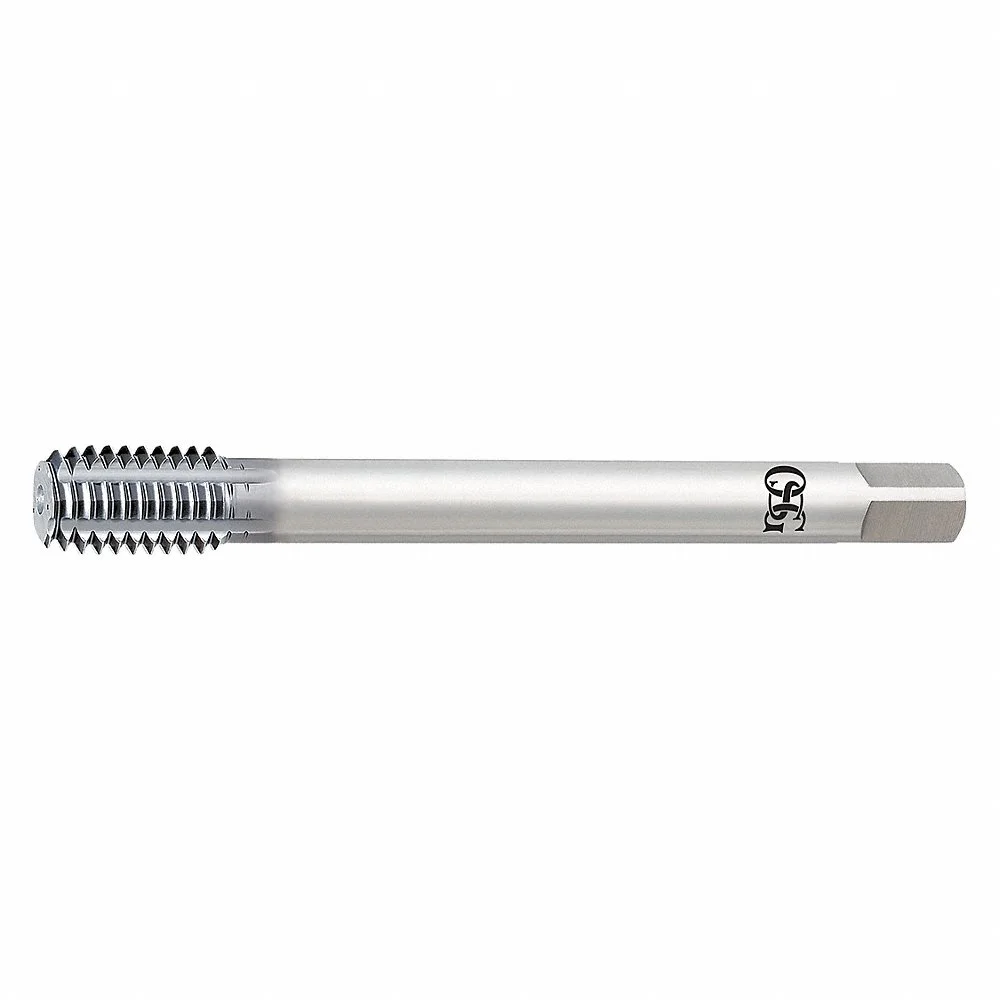

OSG 1625035643 Thread Forming Tap, #3-56 Thread Size, 5/16 Inch Thread Length, 1 15/16 Inch Length
Item: CT6ZMPModel: 1625035643Cross Ref: 54MC09
7 In Stock
0.089893"
0.409448"
Ships within 2 days via
€71.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| 55% Thread Drill Size | 2.34 mm |
| 65% Thread Drill Size | 2.3 mm |
| 75% Thread Drill Size | 2.28 mm |
| Coolant Fed | Non Coolant Through |
| Cutting Direction-machining | Right Hand |
| Extended Neck | Yes |
| Features | Produces No Chips |
| Finish | Titanium Carbonitride Coated |
| Fits Class | Class 2B |
| List Number | 16250 |
| Material Grade-machining | Grade 16250 |
| No. Of Flutes | 0 |
| No. Of Pieces | 1 |
| Overall Length | 1 15/16" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, N, P |
| Secondary Material Application | Hardened Steel, Nickel, Titanium |
| Secondary Material Application Iso Code | H, S |
| Shank Dia. | 1/8" |
| Shank Length | 1 17/32" |
| Spiral Direction | Neutral |
| Square Size | 0.109" |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Style | Thread Forming |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 5/16" |
| Thread Limit | H3 |
| Thread Limit/class Of Fit | H3, 2B |
| Thread Size | #3-56 |
| Thread Standard | Unf |
| Threads Per Inch | 56 |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 0.16 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Length | Thread Limit | Thread Size | Tap Finish | 75% Thread Drill Size | Shank Dia. | Shank Length | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1400100006 | 1 5/8" | H2 | #0-80 | TiCN | 1.3 mm | 9/64" | 1 1/4" | Cobalt | €25.04 | |
 |
1400100000 | 1 39/64" | H2 | #0-80 | Bright | 1.2 mm | 9/64" | 1 1/4" | Cobalt | €23.25 | |
|
1400100100 | 1 39/64" | H3 | #0-80 | Bright | 1.2 mm | 9/64" | 1 1/4" | Cobalt | €25.59 | |
 |
1400100101 | 1 39/64" | H3 | #0-80 | Black Oxide | 1.2 mm | 9/64" | 1 1/4" | Cobalt | €25.59 | |
 |
1405000308 | 1 39/64" | H3 | #0-80 | TiCN | 1.36 mm | 9/64" | 1 1/4" | High Strength Steel | €60.08 | |
 |
1405000208 | 1 39/64" | H2 | #0-80 | TiCN | 1.36 mm | 9/64" | 1 1/4" | High Strength Steel | €60.08 | |
 |
1400100201 | 1 39/64" | H2 | #0-80 | Black Oxide | 1.2 mm | 9/64" | 1 1/4" | Cobalt | €23.25 |
