OSG 1432908 Spiral Flute Tap Bottoming 5/8 Inch x 11 Ticn
Item: AG3NRXModel: 1432908Cross Ref: 33PD51
7 In Stock
Ships within 2 days via
10.00% off
€148.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 14.2 mm |
| 65% Thread Drill Size | 13.9 mm |
| 75% Thread Drill Size | 13.6 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.5305", 0.5364", 0.5423", 0.5482", 0.5541" |
| Extended Neck | Yes |
| Features | Efficient Chip Evacuation, For Blind Hole Applications, Increased Wear Resistance, Spiral Flute Taps For Ferrous And Non Ferrous Materials |
| Finish | TiCN Coated |
| Helix Angle | 50° |
| List Number | 107 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 107 |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 3 25/32" |
| Pitch Diameter Limits | H3 |
| Pitch Type | 11 |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 15/32" |
| Shank Length | 1 21/32" |
| Shank Type - Machining | Straight |
| Square Size | 0.359" |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 5/8"-11 |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 1 1/16" |
| Thread Limit | H3 |
| Thread Limit/class Of Fit | H3 |
| Thread Size | 5/8"-11 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 11 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 1.91 |
| HS code | 8207406000 |
Product Variants
| Product | Model | Thread Length | Overall Length | Number Of Flutes | Thread Size | 75% Thread Drill Size | Shank Dia. | Pitch Diameter Limits | Tap Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1120208 | 11/16" | 2 1/2" | 4 | 1/4"-20 | #7 | 1/4" | H3 | Bottoming | €22.70 | |
 |

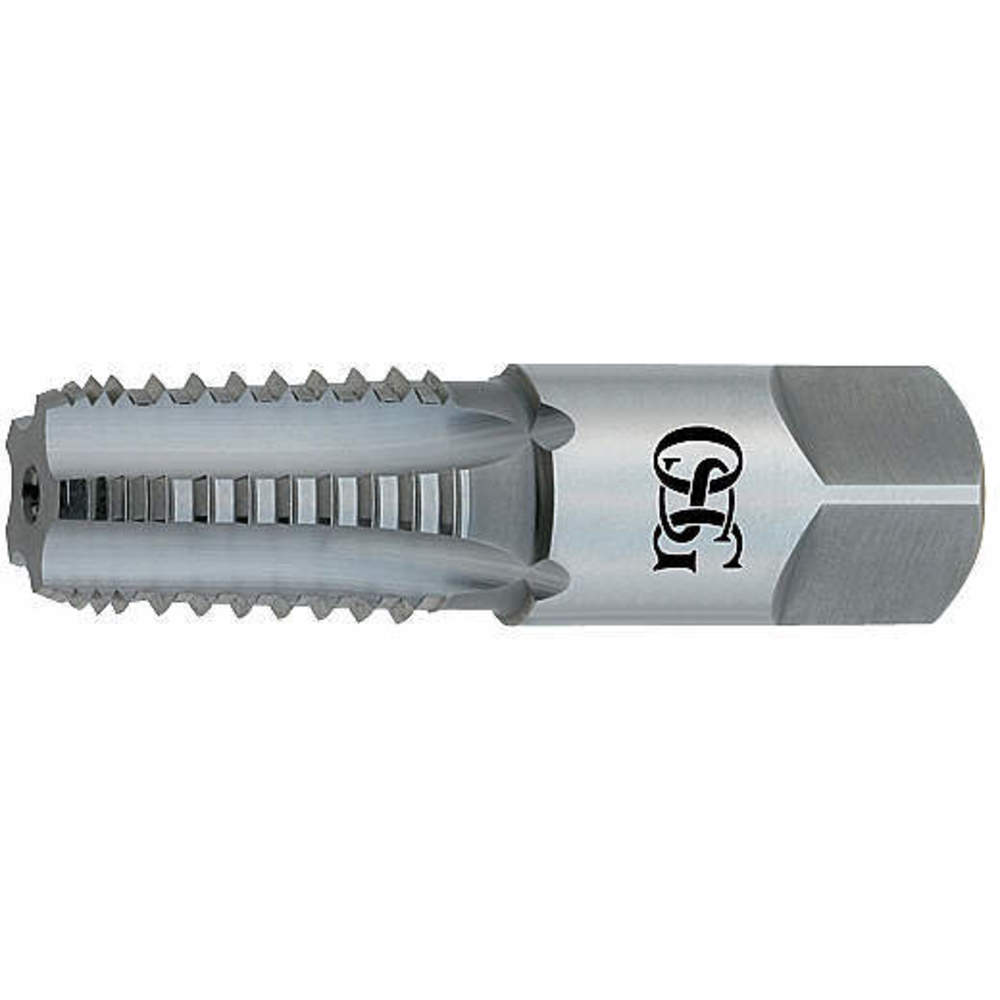

1315408 | 1 1/16" | 2 35/64" | 5 | 3/8"-18 | 0.5625" | 11/16" | 2.5P | Pipe | €189.58 | |
|
1413308 | 7/8" | 2 3/8" | 3 | - | - | 0.152" | H3 | Bottoming | €42.33 | |
|
1432008 | 15/16" | 3 11/32" | 3 | 1/2"-13 | 0.4219" | 23/64" | H3 | Plug | €109.88 |
