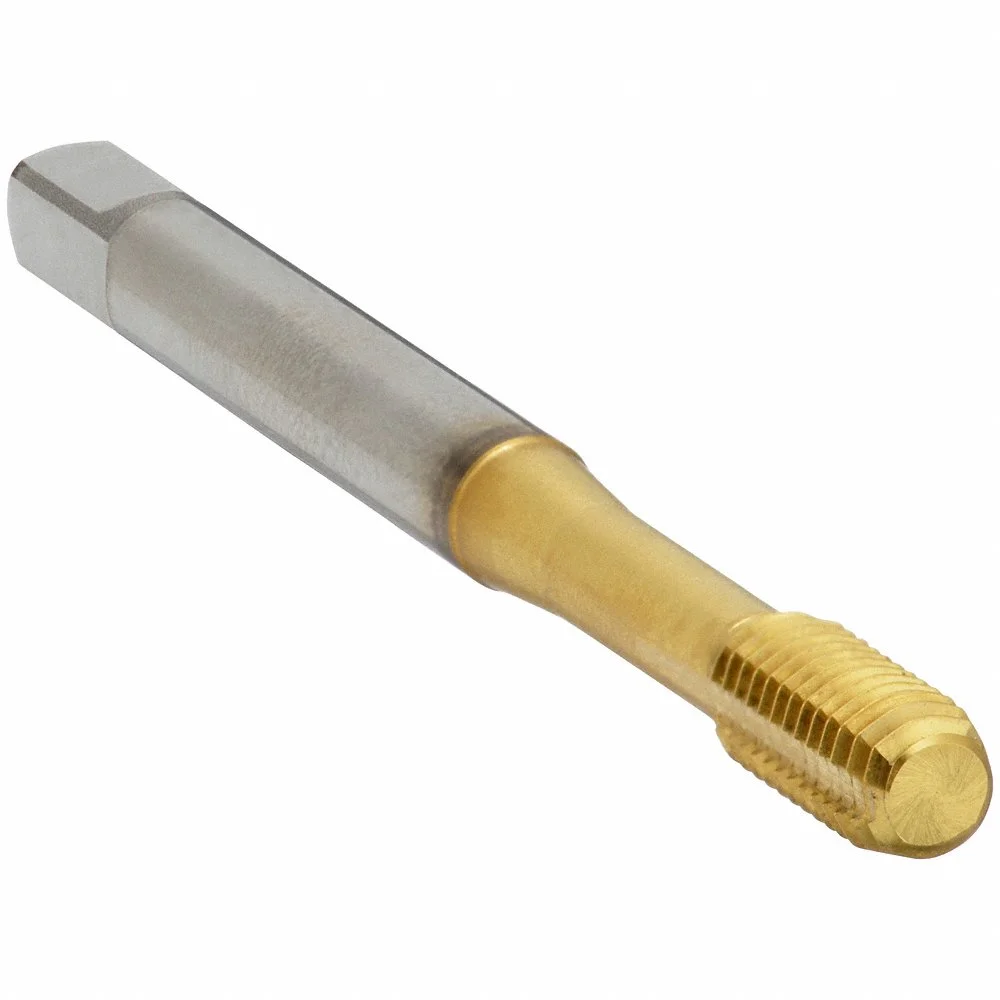

OSG 1410103205 Thread Forming Tap, M5X0.8 Thread Size, 10 mm Thread Length, 60 mm Length, Right Hand, Tin
Item: CT7ARZModel: 1410103205Cross Ref: 6WFG0
7 In Stock
0.180"
0.874"
Ships within 2 days via
10.00% off
€30.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| 55% Thread Drill Size | #13 |
| 65% Thread Drill Size | 4.65 mm |
| 75% Thread Drill Size | 4.6 mm |
| Coolant Fed | Non Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | No |
| Features | For A Wide Range Of Materials, Forming Tap |
| Finish | Titanium Nitride Coated |
| List Number | 14101 |
| Material Grade - Machining | Grade 14101 |
| No. Of Pieces | 1 |
| Number Of Flutes | 0 |
| Overall Length | 60 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Steel |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application | Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | H, M, P |
| Shank Dia. | 4.92 mm |
| Shank Length | 37.4 mm |
| Spiral Direction | Neutral |
| Square Size | 3.86 mm |
| Tap Chamfer | Modified Bottom, Semi Bottom |
| Tap Finish | Tin |
| Tap Grouping | Tap |
| Tap Material | Cobalt |
| Tap Style | Thread Forming |
| Tap Thread Type | Metric Coarse |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit | D4 |
| Thread Limit/class Of Fit | D4 |
| Thread Pitch | 0.8 mm |
| Thread Size | M5 X 0.8 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Overall Length | Thread Length | Thread Limit | Thread Size | Tap Finish | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1400100006 | - | 1 5/8" | 1/4" | H2 | #0-80 | TiCN | 1.3 mm | 9/64" | €35.77 | |
 |
1400100000 | - | 1 39/64" | 5/16" | H2 | #0-80 | Bright | 1.2 mm | 9/64" | €33.20 | |
|
1400100100 | - | 1 39/64" | 5/16" | H3 | #0-80 | Bright | 1.2 mm | 9/64" | €36.56 | |
 |
1400100101 | - | 1 39/64" | 5/16" | H3 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €36.56 | |
 |
1405000308 | - | 1 39/64" | 5/16" | H3 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1405000208 | - | 1 39/64" | 5/16" | H2 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1400100201 | - | 1 39/64" | 5/16" | H2 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €33.20 |
