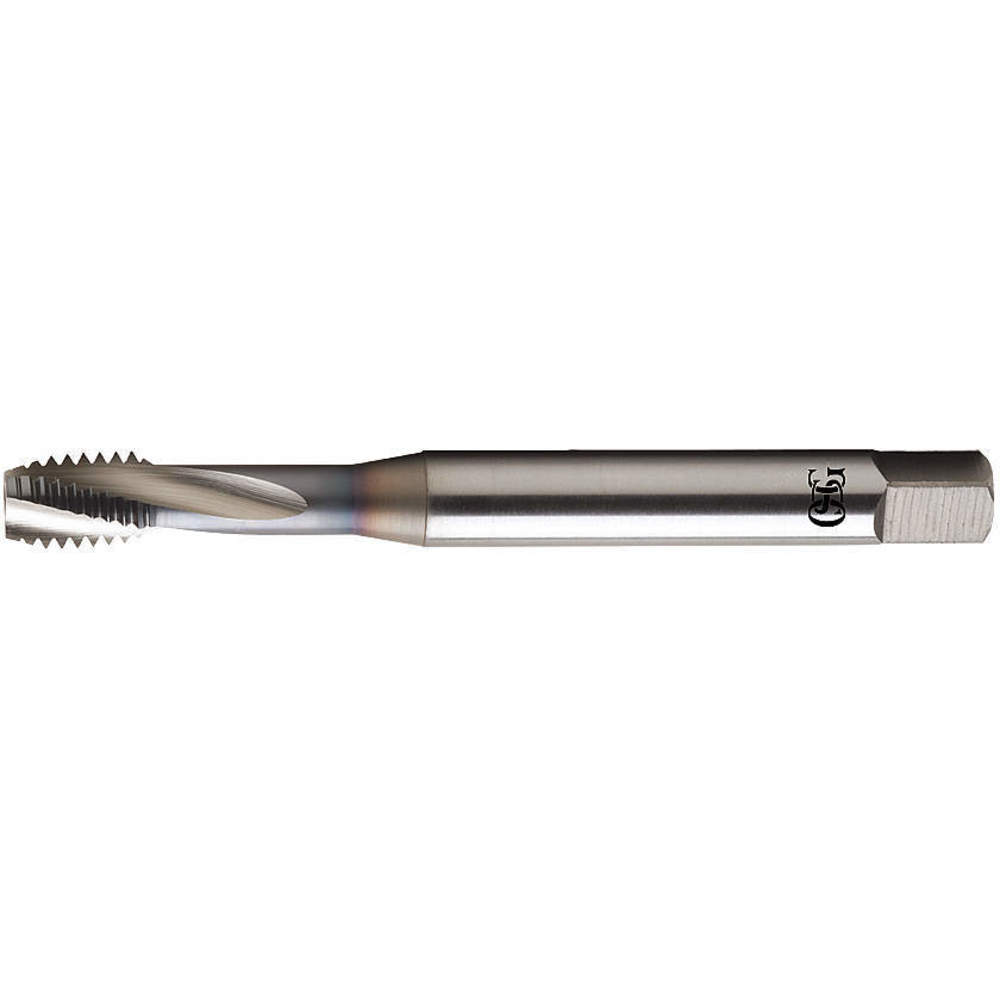

OSG 1311301508 Spiral Flute Tap Bottoming 16x2.00mm V Coating
Item: AG3NRAModel: 1311301508Cross Ref: 33PD30
7 In Stock
Ships within 2 days via
10.00% off
€242.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 14.5 mm |
| 65% Thread Drill Size | 9/16" |
| 75% Thread Drill Size | 14 mm |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 13.92 mm, 14.05 mm, 14.18 mm, 14.31 mm, 14.44 mm |
| Extended Neck | Yes |
| Features | High Performance Spiral Flute Taps For Alloy Steels |
| Helix Angle | 15° |
| List Number | 13113 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 13113 |
| Measurement System | Metric |
| Number Of Flutes | 4 |
| Overall Length | 110 mm |
| Pitch Diameter Limits | 6H |
| Pitch Type | 2 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | All Materials |
| Secondary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 12.19 mm |
| Shank Length | 56 mm |
| Shank Type - Machining | Straight |
| Size | M16 |
| Square Size | 9.14 mm |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M16 x 2 |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 12 mm |
| Thread Limit | 6H |
| Thread Limit/class Of Fit | 6H |
| Thread Pitch | 2 mm |
| Thread Size | M16 x 2 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 2.29 |
| HS code | 8207406000 |
Product Variants
| Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Thread Limit | Number Of Flutes | Tap Chamfer | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1111700308 | M4 x 0.7 | 8 mm | 63 mm | 3.3 mm | D4 | 3 | Plug | 4.26 mm | €53.25 | |
| 1111700808 | M8 x 1.25 | 15 mm | 90 mm | H | D5 | 3 | Plug | 8.07 mm | €82.80 | |
| 1301301008 | 3/8"-24 | 1/2" | 3 29/32" | 8.5 | 2B | 3 | Bottoming | 3/8" | €124.05 | |
| 1311300808 | M10 x 1.5 | 9 mm | 100 mm | 8.5 | 6H | 4 | Bottoming | 9.67 mm | €149.36 |
