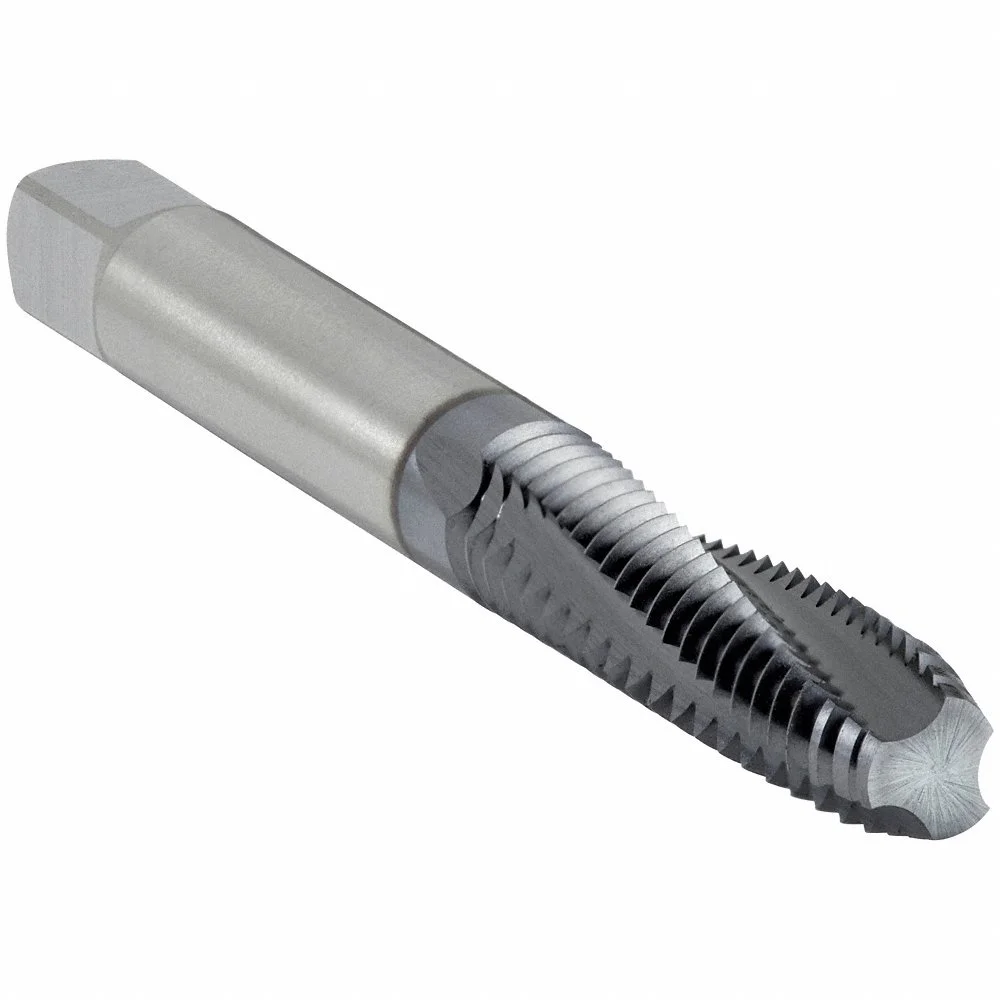

OSG 1305710108 Spiral Flute Tap, #2-56 Thread Size, 3/8 Inch Thread Length, 1 25/32 Inch Length
Item: CT6LHYModel: 1305710108Cross Ref: 2TNP1
7 In Stock
0.0667"
Ships within 2 days via
10.00% off
€119.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #49 |
| 65% Thread Drill Size | 1.8 mm |
| 75% Thread Drill Size | 1.73 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.0674", 0.0686", 0.0698", 0.0709", 0.0721" |
| Extended Neck | Yes |
| Features | Din Overall Length Provides Greater Reach Capability, Lubricity And Wear Resistance, Osg V-Coating Increased Hardness, Premium Powdered Metal Vc-10 Substrate Increased Hardness For Longer Life, Spiral Flute For Through Hole Applications |
| Finish | TiCN |
| Helix Angle | 10° |
| Material Grade - Machining | Grade 313TI |
| Number Of Flutes | 3 |
| Overall Length | 1 25/32" |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Shank Dia. | 9/64" |
| Shank Length | 1 5/16" |
| Shank Type - Machining | Straight |
| Square Size | 0.109" |
| System Of Measurement | Pipe |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiCN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | #2-56 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 3/8" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2 |
| Thread Size | #2-56 |
| Thread Standard | Coarse |
| Threads Per Inch | 56 |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
