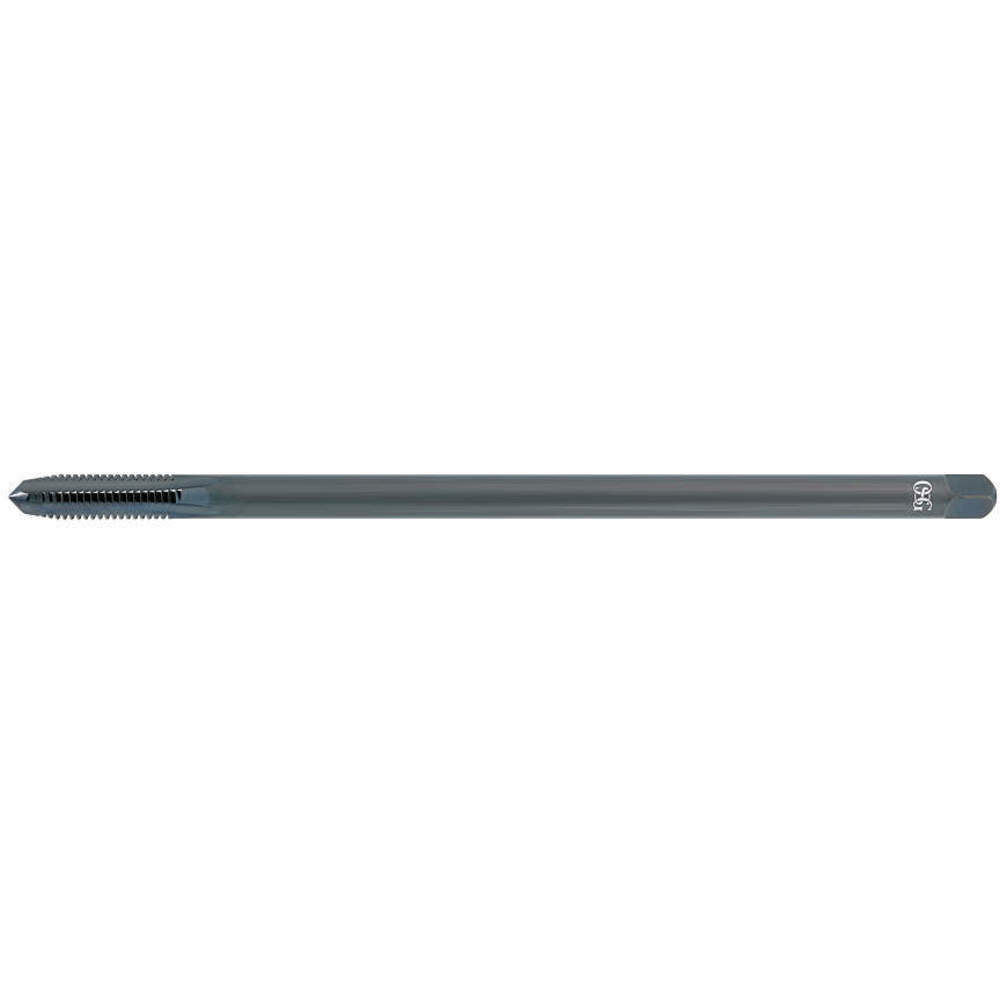

OSG 1293201 Straight Flute Tap Plug 5/8 Inch x 11 S/o
Item: AG4GCXModel: 1293201Cross Ref: 33YX11
7 In Stock
Ships within 2 days via
10.00% off
€302.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 14.2 mm |
| 65% Thread Drill Size | 13.9 mm |
| 75% Thread Drill Size | 13.6 mm |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | Yes |
| Finish | Black Oxide |
| List Number | 916 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 916 |
| No. Of Pieces | 1 |
| Number Of Flutes | 4 |
| Overall Length | 10" |
| Pitch Diameter Limits | H3 |
| Pitch Type | 11 |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Cast Iron, High Carbon Steel, Low Carbon Steel, Medium Carbon Steel |
| Secondary Material Application Iso Code | K, P |
| Shank Dia. | 5/8" |
| Shank Length | 7 25/64" |
| Spiral Direction | Neutral |
| Square Size | 0.475" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Grouping | Tap |
| Tap Length Standard | ANSI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 5/8"-11 |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Length | 1 51/64" |
| Thread Limit | H3 |
| Thread Size | 5/8"-11 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 11 |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 2.29 |
| HS code | 8207400000 |
Product Variants
| Model | Thread Length | Number Of Flutes | Overall Length | Thread Size | 75% Thread Drill Size | Thread Limit | Thread Type | Pitch Diameter Limits | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1590101 | 11/16" | 4 | 2 1/2" | 1/4"-20 | #7 | H10 | Coarse | 0.005 | €21.05 | |
| 1590301 | 11/16" | 4 | 2 1/2" | 1/4"-28 | 5.45 mm | H10 | Fine | 0.005 | €21.05 | |
| 1975601 | 30 mm | 4 | 96 mm | M16 x 1.5 | 14.5 mm | D6 | Metric Fine | D6 | €100.49 | |
| 22622 | 19 mm | 3 | 62 mm | M6 x 1 | 5 mm | Jis 2 | Metric Coarse | 2 | €20.76 | |
| 22628 | 22 mm | 4 | 70 mm | M8 x 1.25 | H | Jis 2 | Metric Coarse | 2 | €22.61 | |
| 22633 | 24 mm | 4 | 75 mm | M10 x 1.5 | 8.5 mm | Jis 2 | Metric Coarse | 2 | €46.04 | |
| 1125901 | 1 5/16" | 4 | 3 25/32" | 5/8"-18 | 14.5 mm | H10 | Fine | 0.005 | €97.58 |
