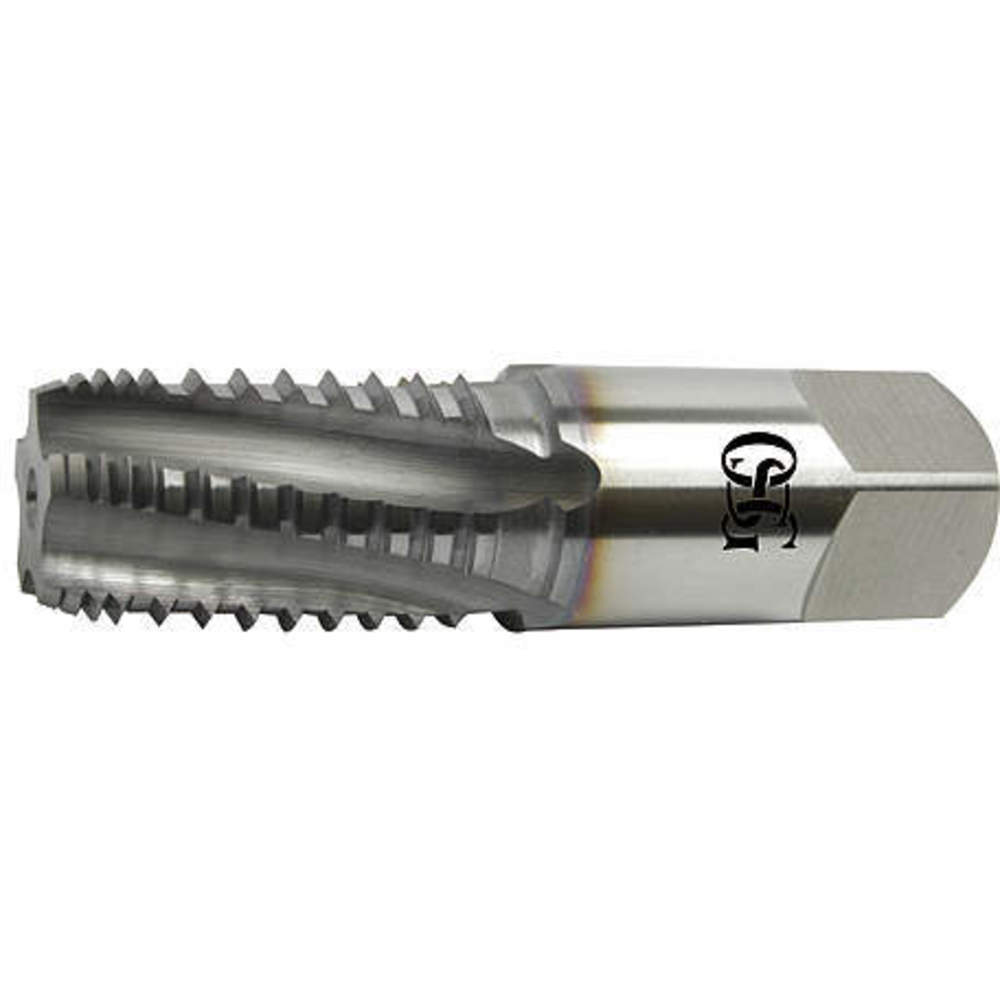

OSG 1205400508 Pipe Tap Pipe 1/2 Inch x 14 Ticn
Item: AG4JKXModel: 1205400508Cross Ref: 33ZL74
7 In Stock
Ships within 2 days via
10.00% off
€262.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pipe Tap |
| 75% Thread Drill Size | 0.7031" |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Drill Bit Size | 11/16", 45/64" |
| Extended Neck | Yes |
| Finish | TiCN Coated |
| Helix Angle | 10° |
| Interrupted Thread | Yes |
| List Number | 12054 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 12054 |
| Max. Projection | 0.579" |
| No. Of Pieces | 1 |
| Number Of Flutes | 3 |
| Overall Length | 3 7/64" |
| Pitch Diameter Limit | Not Rated |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 43/64" |
| Shank Length | 1 47/64" |
| Size | 1/2" |
| Square Size | 0.514" |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Modified Bottom, Semi Bottom |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Tap Material | Cobalt |
| Tap Style | Pipe |
| Tap Thread Size | 1/2"-14 |
| Tap Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 1 23/64" |
| Thread Size | 1/2"-14 |
| Thread Standard | NPTF |
| Thread Type | NPTF |
| Threads Per Inch | 14 |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| HS code | 8207400000 |
Product Variants
| Model | Thread Length | Number Of Flutes | 75% Thread Drill Size | Overall Length | Thread Size | Tap Chamfer | Shank Dia. | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

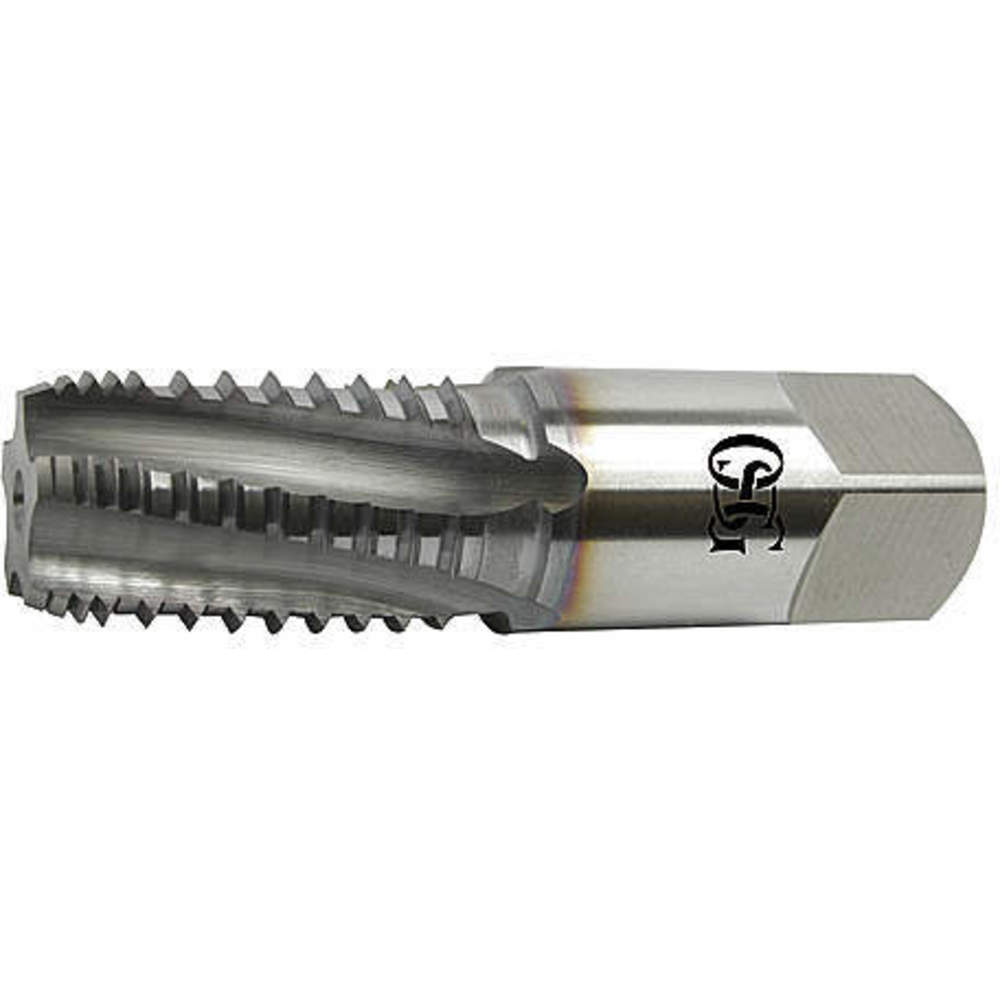

| 1205300108 | 3/4" | 3 | Q | 2 7/64" | 1/8"-27 | Modified Bottom, Semi Bottom | 19/64" | 1 23/64" | €169.94 | |
| 1205300208 | 3/4" | 3 | Q | 2 7/64" | 1/8"-27 | Modified Bottom, Semi Bottom | 27/64" | 1 7/64" | €180.76 | |
| 1205300308 | 1 3/64" | 3 | 0.4375" | 2 7/16" | 1/4"-18 | Modified Bottom, Semi Bottom | 35/64" | 1 7/64" | €163.56 | |
| 1205300408 | 1 3/64" | 3 | 0.5625" | 2 35/64" | 3/8"-18 | Modified Bottom, Semi Bottom | 11/16" | 1 15/64" | €232.88 | |
| 1205300508 | 1 23/64" | 3 | 0.7031" | 3 7/64" | 1/2"-14 | Modified Bottom, Semi Bottom | 43/64" | 1 47/64" | €295.52 | |
| 1205300608 | 1 23/64" | 3 | 0.9063" | - | 3/4"-14 | Modified Bottom, Semi Bottom | 57/64" | 1 7/8" | €446.43 | |
| 1205300708 | 1 3/4" | 3 | 1.1406" | 3 3/4" | - | Modified Bottom, Semi Bottom | 1 1/8" | 1 63/64" | €678.30 |
