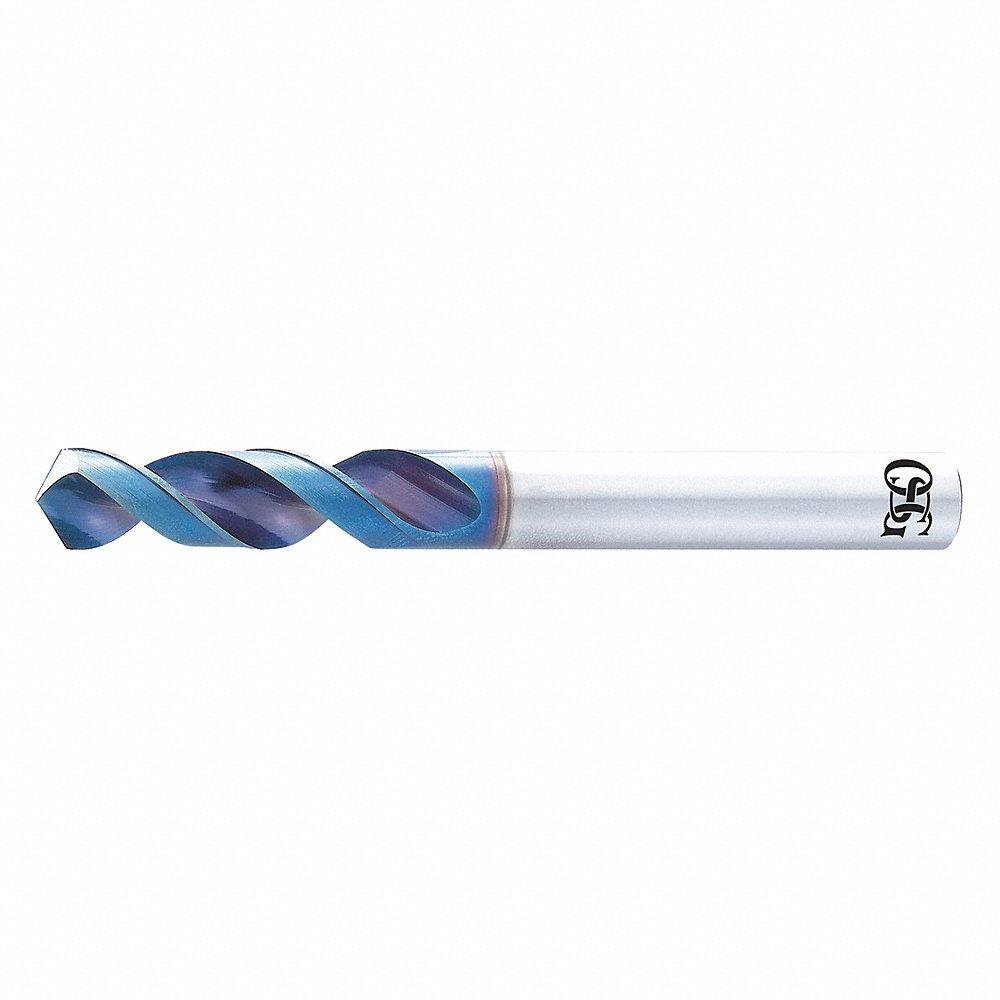

OSG 11534815 Screw Machine Drill Bit, 5/32 Inch Size, 22 mm Flute Length
Item: CT6JYFModel: 11534815Cross Ref: 34YZ35
7 In Stock
0.156"
Ships within 2 days via
10.00% off
€35.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right |
| Decimal Equivalent | 0.1562 |
| Depth X Dia. Ratio | 3xd |
| Diameter | 5/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | 5/32" |
| Drill Diameter Tolerance | -0.018 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Finish - Machining | WD1 |
| Flute Length | 22 mm |
| Flute Type | Fast Spiral |
| Grade | General Purpose |
| Helix Angle | 40° |
| List Number | 1150 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Measurement System | Fractional Inch |
| Number Of Flutes | 2 |
| Overall Length | 54 mm |
| Point Angle | 130° |
| Primary Material Application | Aluminum, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | N, P |
| Secondary Material Application | Cast Iron, Hardened Steel, High Carbon Steel, Nickel Alloy, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, K, M, P, S |
| Shank Dia. | 4 mm |
| Shank Length | 32 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Shank Dia. | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |
8595579 | 72 mm | 6 mm | #1 | 0.228 | - | €70.70 | |
 |
11553015 | 72 mm | 6 mm | #1 | - | - | €70.70 | |
 |
859557911 | 72 mm | 6 mm | #1 | 0.228 | - | €74.77 | |
|
8595486 | 70 mm | 6 mm | #11 | 0.191 | - | €53.10 | |
|
859548611 | 70 mm | 6 mm | #11 | 0.191 | - | €56.69 | |
|
6154811 | 70 mm | 6 mm | #12 | 0.189 | - | €53.35 | |
|
6154711 | 68 mm | 6 mm | #13 | 0.185 | - | €51.38 |
