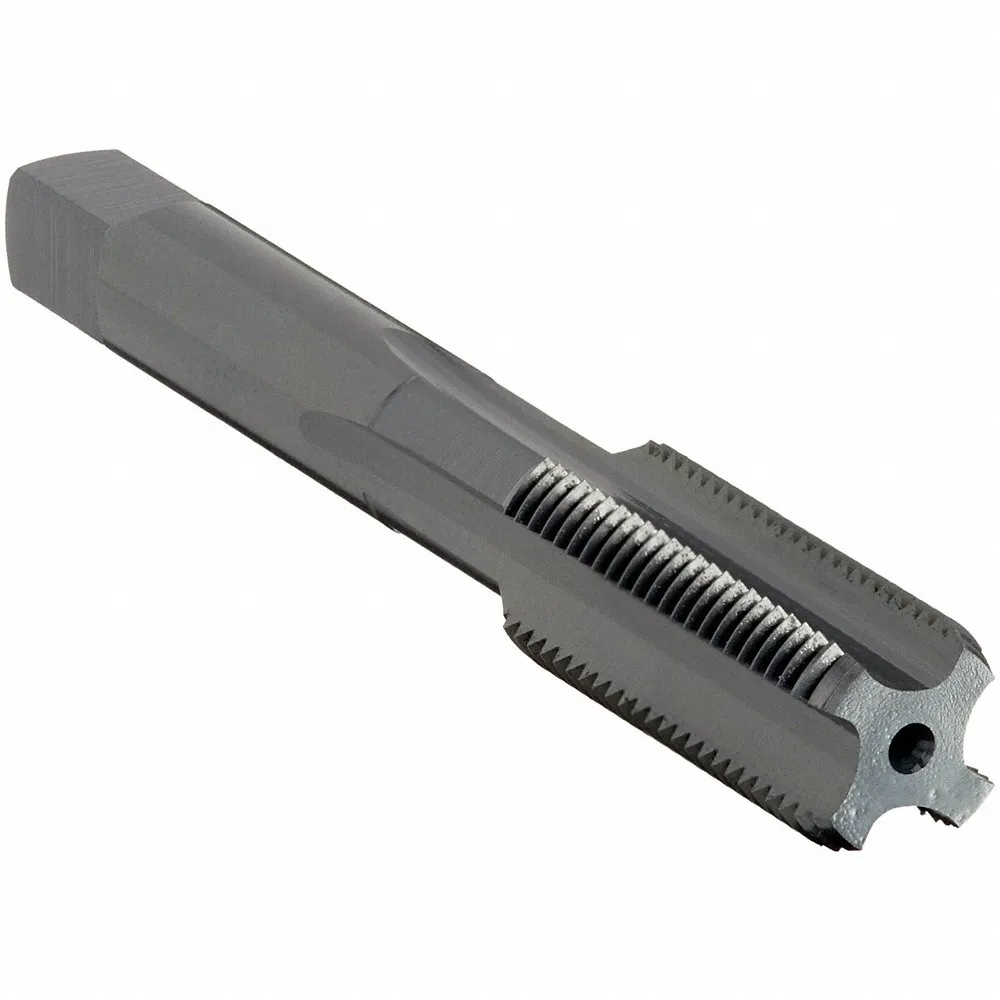

OSG 1136201 Straight Flute Tap, 1-8 Thread Size, 1 13/16 Inch Thread Length, 5 3/32 Inch Length
Item: CT6XBLModel: 1136201Cross Ref: 2TRW5
7 In Stock
Ships within 2 days via
10.00% off
€180.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 29/32" |
| 65% Thread Drill Size | 57/64" |
| 75% Thread Drill Size | 22.25 mm |
| Coolant Delivery | External |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 5 3/32" |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 51/64" |
| Shank Length | 2 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.6" |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottoming |
| Tap Finish | Black Oxide |
| Tap Length Standard | ANSI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Straight Flute (Hand) |
| Thread Direction | Right Hand |
| Thread Length | 1 13/16" |
| Thread Limit | H4 |
| Thread Limit/class Of Fit | H4 |
| Thread Size | 1"-8 |
| Thread Standard | Coarse |
| Threads Per Inch | 8 |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Direction | Number Of Flutes | Overall Length | Thread Length | Thread Limit | 75% Thread Drill Size | Thread Size | Tap Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1650900 | Left Hand | 4 | 2 11/32" | 11/16" | H3 | #25 | #10-24 | Bright | €17.89 | |
 |
1651000 | Left Hand | 4 | 2 11/32" | 11/16" | H3 | #25 | #10-24 | Bright | €16.74 | |
 |
1594900 | Right Hand | 4 | 2 11/32" | 9/16" | H10 | #21 | #10-24 | Bright | €16.11 | |
 |
1024901 | Right Hand | 4 | 2 11/32" | 9/16" | H3 | #25 | #10-24 | Black Oxide | €14.95 | |
 |
1024900 | Right Hand | 4 | 2 11/32" | 9/16" | H3 | #25 | #10-24 | Bright | €14.36 | |
 |
1025000 | Right Hand | 4 | 2 11/32" | 9/16" | H3 | #25 | #10-24 | Bright | €14.36 | |
 |
1025001 | Right Hand | 4 | 2.344" | 9/16" | H3 | #25 | - | - | €14.20 |
