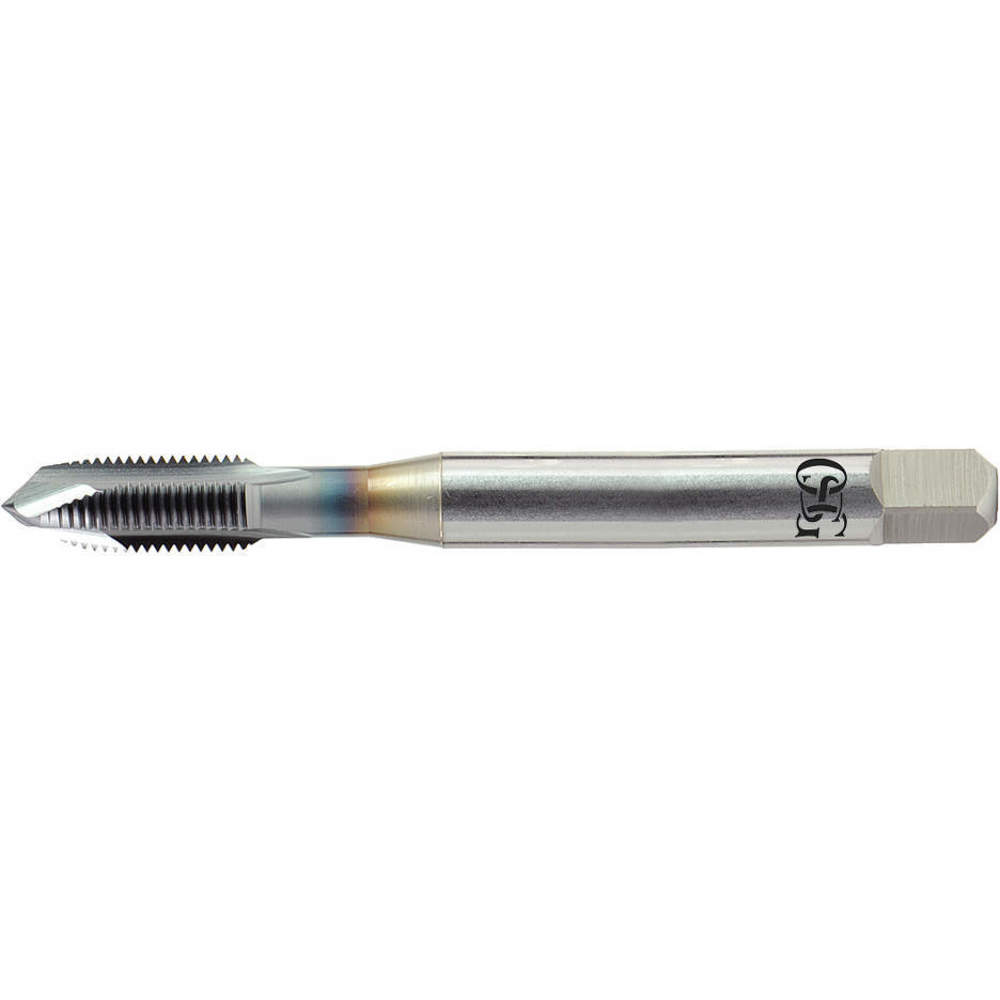

OSG 1111700108 Spiral Point Tap Plug 3x0.50mm V Coating
Item: AG4CVMModel: 1111700108Cross Ref: 33YA10
7 In Stock
Ships within 2 days via
10.00% off
€48.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | #37 |
| 65% Thread Drill Size | #38 |
| 75% Thread Drill Size | 2.5 mm |
| Class Of Fit | Class JIS 2 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 2.48 mm, 2.51 mm, 2.55 mm, 2.58 mm, 2.61 mm |
| Finish | TiCN |
| List Number | 11117 |
| Material | High Speed Steel |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 56 mm |
| Pitch Diameter Limits | D3 |
| Pitch Type | 0.5 mm |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Secondary Material Application | Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, M |
| Shank Dia. | 3.58 mm |
| Shank Length | 38 mm |
| Shank Type - Machining | Straight |
| Size | M3 |
| Spiral Direction | Neutral |
| Square Size | 2.79 mm |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | HSS E |
| Tap Shank Standard | ANSI |
| Tap Thread Size | M3 x 0.5 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 6 mm |
| Thread Limit | D3 |
| Thread Limit / Class Of Fit | D3, JIS 2 |
| Thread Pitch | 0.5 mm |
| Thread Size | M3 x 0.5 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship height (cm) | 0.76 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 0.76 |
| HS code | 8207400000 |
Product Variants
| Model | Thread Length | Overall Length | Number Of Flutes | Thread Size | 75% Thread Drill Size | Thread Limit | Shank Dia. | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1101700108 | 1/4" | 2 3/16" | 2 | #4-40 | 2.2 mm | H2 | 9/64" | Coarse | €42.66 | |
| 1101700208 | 3/8" | 2 3/16" | 2 | #6-32 | #36 | H3 | 9/64" | Coarse | €41.32 | |
| 1101700308 | 3/8" | 2 15/32" | 3 | #8-32 | 3.4 mm | H3 | 5/64" | Coarse | €41.32 | |
| 1101700408 | 1/2" | 2 3/4" | 3 | #10-24 | #25 | H3 | 3/32" | Coarse | €41.32 | |
| 1101700508 | 1/2" | 2 3/4" | 3 | #10-32 | #21 | H3 | 3/32" | Fine | €42.51 | |
| 1101700608 | 9/16" | 3 1/8" | 3 | 1/4"-20 | #7 | H3 | 1/8" | Coarse | €46.14 | |
| 1101700708 | 9/16" | 3 1/8" | 3 | 1/4"-28 | 5.45 mm | H3 | 1/8" | Fine | €44.72 |
