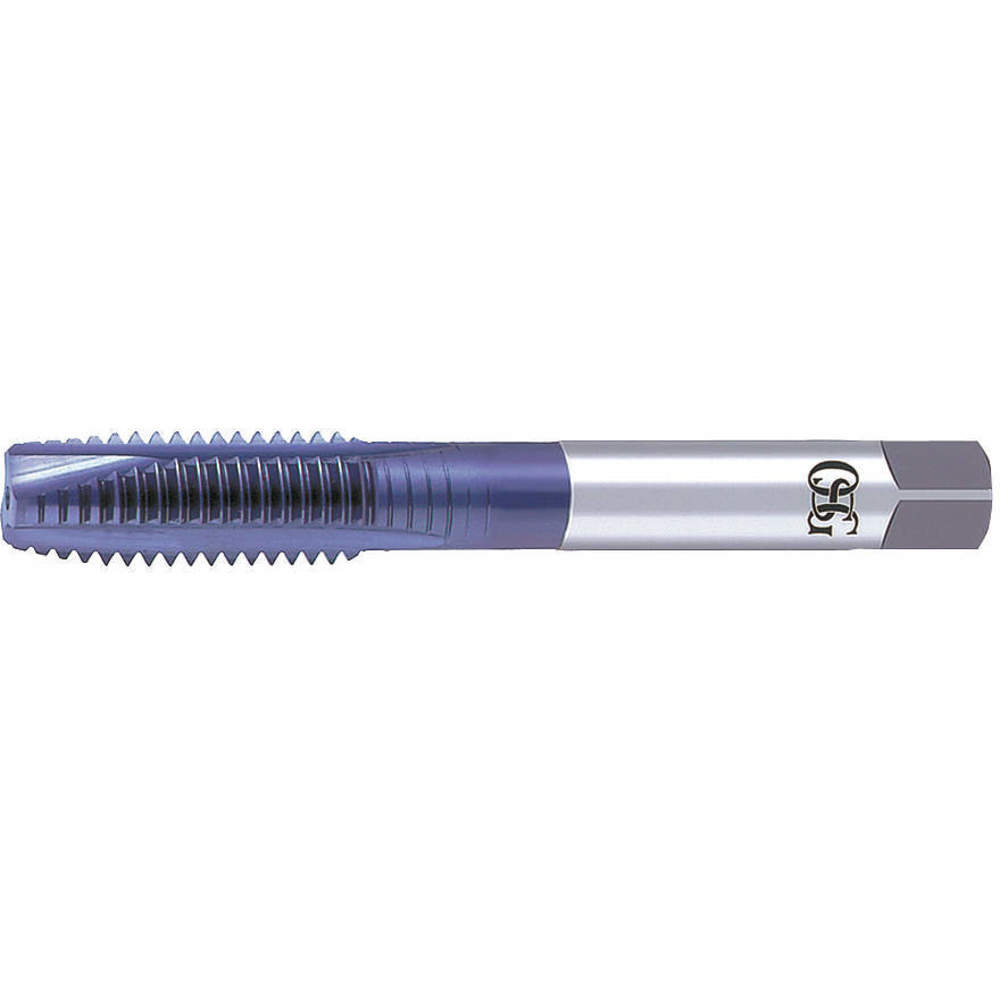

OSG 1105614508 Spiral Point Tap Plug 7/8 Inch x 14 Ticn
Item: AG4BUCModel: 1105614508Cross Ref: 33XT63
7 In Stock
Ships within 2 days via
10.00% off
€387.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 20.9 mm |
| 65% Thread Drill Size | 13/16" |
| 75% Thread Drill Size | 20.4 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.8008", 0.8054", 0.8101", 0.8147", 0.8193" |
| Extended Neck | Yes |
| Finish | TiCN Coated |
| List Number | 312TI |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 4 21/32" |
| Pitch Diameter Limits | H5 |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | H, M, P |
| Shank Dia. | 11/32" |
| Shank Length | 2 23/32" |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.522" |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Material | VC 10 |
| Tap Thread Size | 7/8"-14 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 1 5/16" |
| Thread Limit | H5 |
| Thread Limit/class Of Fit | H5 |
| Thread Size | 7/8"-14 |
| Thread Standard | Unf |
| Thread Type | Fine |
| Threads Per Inch | 14 |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 3.18 |
| HS code | 8207400000 |
Product Variants
| Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | 75% Thread Drill Size | Thread Limit | Pitch Diameter Limits | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1759808 | 3 | 3/8" | 2 3/32" | #8-32 | TiCN | 3.4 mm | H2 | H2 | €50.09 | |
| 1759901 | 3 | 3/8" | 2 3/32" | #8-32 | Black Oxide | 3.4 mm | H4 | H4 | €43.73 | |
| 1759908 | 3 | 3/8" | 2 3/32" | #8-32 | TiCN | 3.4 mm | H4 | H4 | €50.09 | |
| 1760001 | 3 | 3/8" | 2 3/32" | #8-32 | Black Oxide | 3.4 mm | H5 | H5 | €38.98 | |
| 1760008 | 3 | 3/8" | 2 3/32" | #8-32 | TiCN | 3.4 mm | H5 | H5 | €50.09 | |
| 1750405 | 3 | 8 mm | 54 mm | M4 x 0.7 | Tin | 3.3 mm | D4 | D4 | €37.63 | |
| 1750705 | 3 | 22 mm | 60 mm | - | - | - | - | D4 | €42.27 |
