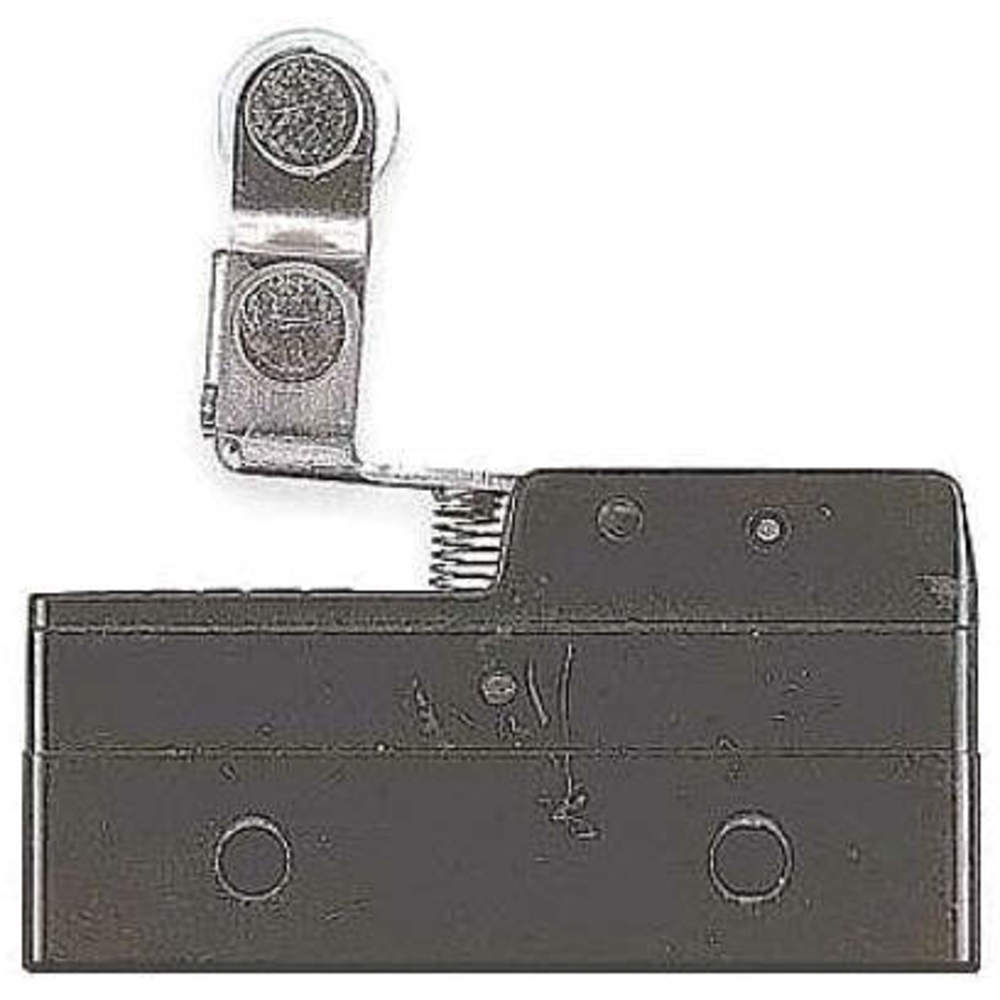

OMRON Z-15GW2277 Switch 15a Spdt Unidirect Short Roller Lever
Item: AC2JTMModel: Z-15GW2277Cross Ref: 2KRN6
7 In Stock
Ships within 2 days via
5.00% off
€35.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Switch |
| Ac Contact Rating | 15A @ 250V |
| Actuation Type | Unidirect Short Roller Lever |
| Actuator Length | 1.26" |
| Actuator Style | Hinge Roller Lever |
| Actuator Type-snap Action Switch | Lever, Roller |
| Amps | 15A |
| Body Depth | 1.97" |
| Body Height | 0.69" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 15A @ 14V |
| Depth | 0.69" |
| Depth-snap Action Switch | 0.69" |
| Differential Travel | 0.02" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Electrical Connection-snap Action Switch | Solder Lug |
| Height | 1.05" |
| Height-snap Action Switch | 1.05" |
| Included | Short Hinge Roller Lever |
| Length | 1.94" |
| Lever Actuator Length | 1.26" |
| Lever Actuator Length-snap Action Switch | 1.26" |
| Max. Differential Travel | 0.0315" |
| Max. Operating Temp. | 176°F |
| Max. Pretravel | 3.1 mm |
| Min. Operating Force | 1.67N |
| Min. Operating Temp. | -13°F |
| Mounting Dimensions | 1" |
| Mounting Hole Dia. | 3/16" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 6.35 oz. |
| Operating Temp. | -13°F to +176°F |
| Over Travel | 0.094" |
| Overall Depth | 0.69" |
| Overall Height | 0.69" |
| Overall Width | 1.94" |
| Pre-travel | 0.095" |
| Release Force | 1.47 ozf |
| Roller Adjustability | Fixed |
| Roller Dia. | 0.37" |
| Roller Material | Plastic |
| Roller Position | Outside Offset |
| Roller Width | 4/25" |
| Series | Z |
| Terminal Type | Solder |
| Voltage | 125/250/480V AC |
| Watertight | No |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 7.87 |
| HS code | 8536509040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Electrical Connection | Height | Body Depth | Height-snap Action Switch | Electrical Connection-snap Action Switch | Actuator Style | No. Of Contact Form | Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

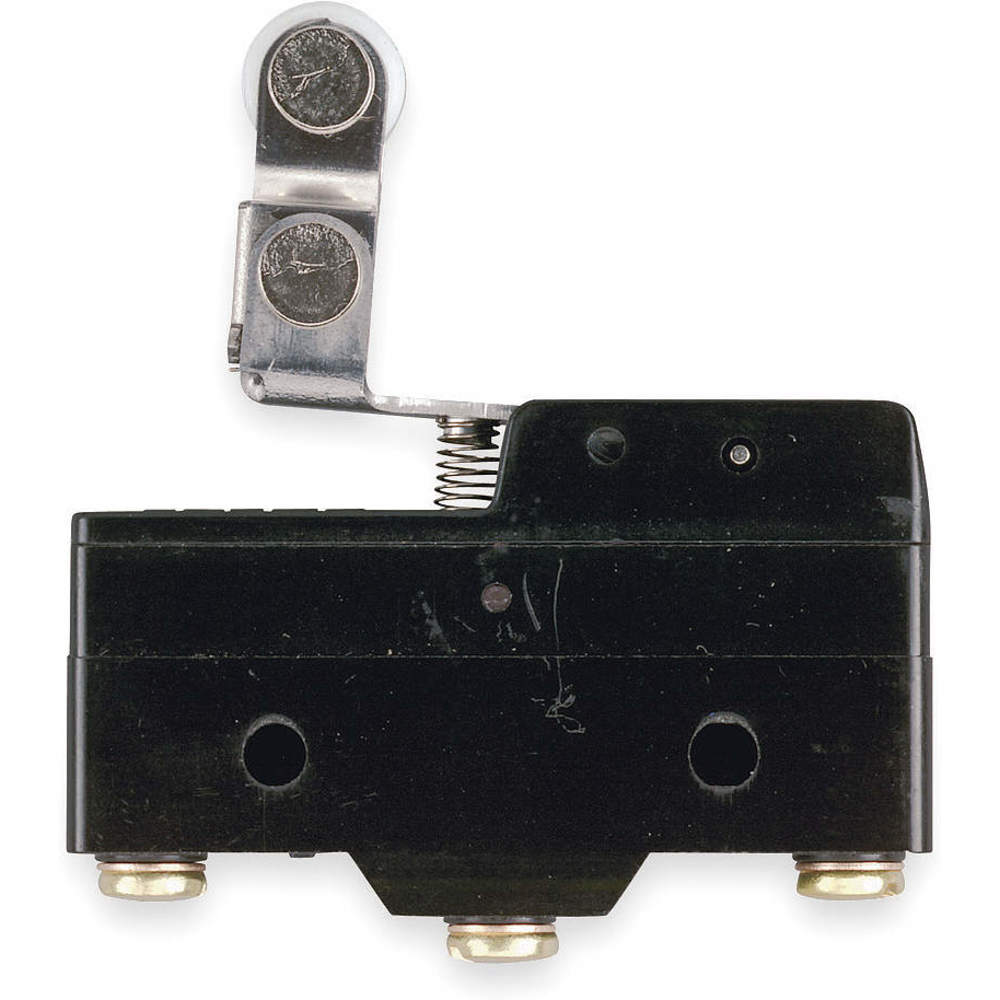

Z-15GW2277-B7-K | Screw | 1 4/25" | 0.69" | 1 4/25" | Screw | Hinge Lever | NO/NC | -25°C to +80°C | €39.16 |
