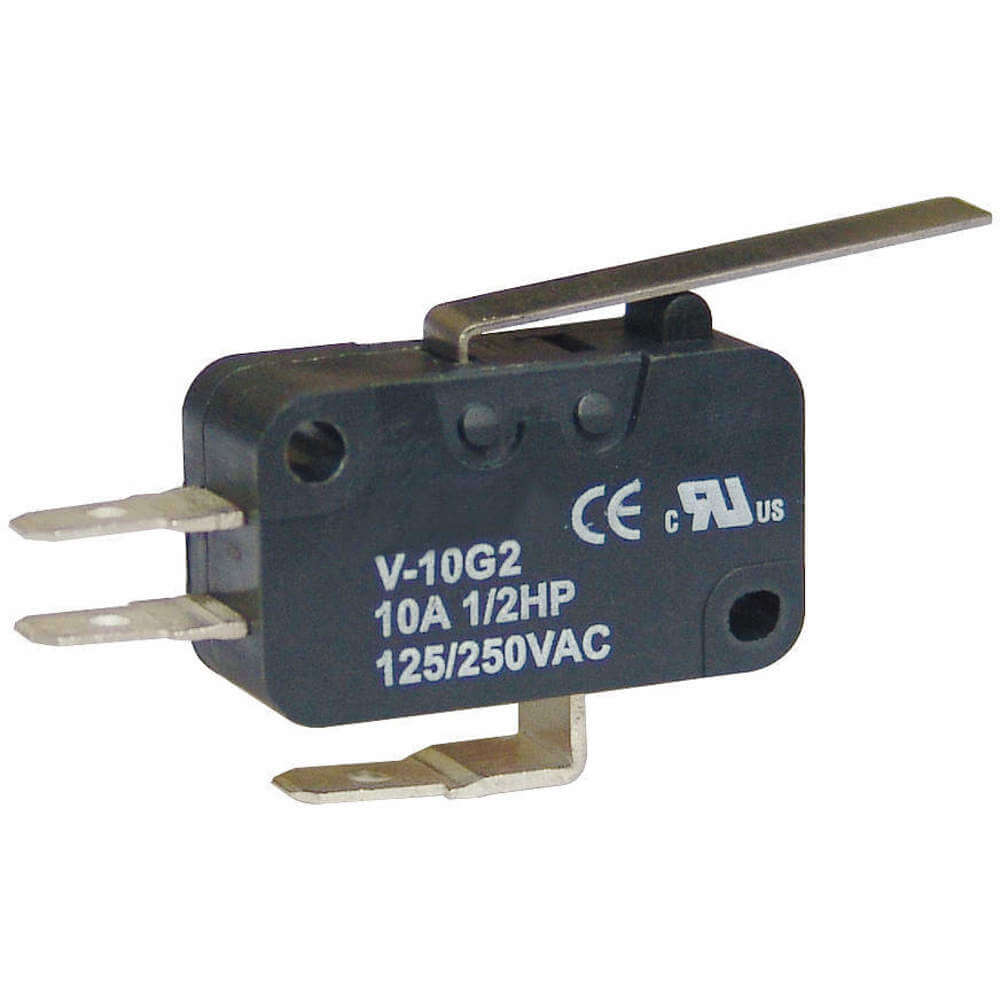

OMRON V-10G2 Mini Snap Switch 10a Spdt Hinge Lever
Item: AF2PMJModel: V-10G2Cross Ref: 6X292
7 In Stock
Ships within 2 days via
10.00% off
€3.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Snap Action Switch |
| Ac Contact Rating | 10A @ 125V, 10A @ 250V |
| Actuation Type | Hinge Lever |
| Actuator Style | Hinge Lever |
| Actuator Type | Hinge Lever |
| Amps Rating | 10A |
| Body Height | 0.62" |
| Body Material | Thermoplastic |
| Body Width | 1.09" |
| Center Mounting Hole Distance | 0.87" |
| Contact Form | SPDT |
| Differential Travel | 0.76 mm |
| Differential Travel - Maximum | 0.029" |
| Display Qty | 1 |
| Electrical Connection | Quick Connect |
| Length | 1.09" |
| Lever Actuator Length | 1.07" |
| Max. Pretravel | 1/8" |
| Maximum Operating Force | 1.31 ozf |
| Operating Force | 1.31 oz. |
| Operating Temp. | -40°C to +150°C |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Over Travel | 0.085" |
| Overall Height | 0.62" |
| Overall Width | 1.09" |
| Pre-travel | 0.125" |
| Release Force | 0.25 ozf |
| Terminal Size | 0.188" |
| Terminal Type | Quick Connect |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 12.7 |
| HS code | 8536509040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Ac Contact Rating | Release Force | Actuator Type | Max. Pretravel | Over Travel | Differential Travel | Amps Rating | Actuation Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
V-10G3 | 10A @ 240V | 0.24 ozf | - | 0.355" | 0.118" | 0.079" | 10A | Long Hinge Lever | €3.72 | |
 |

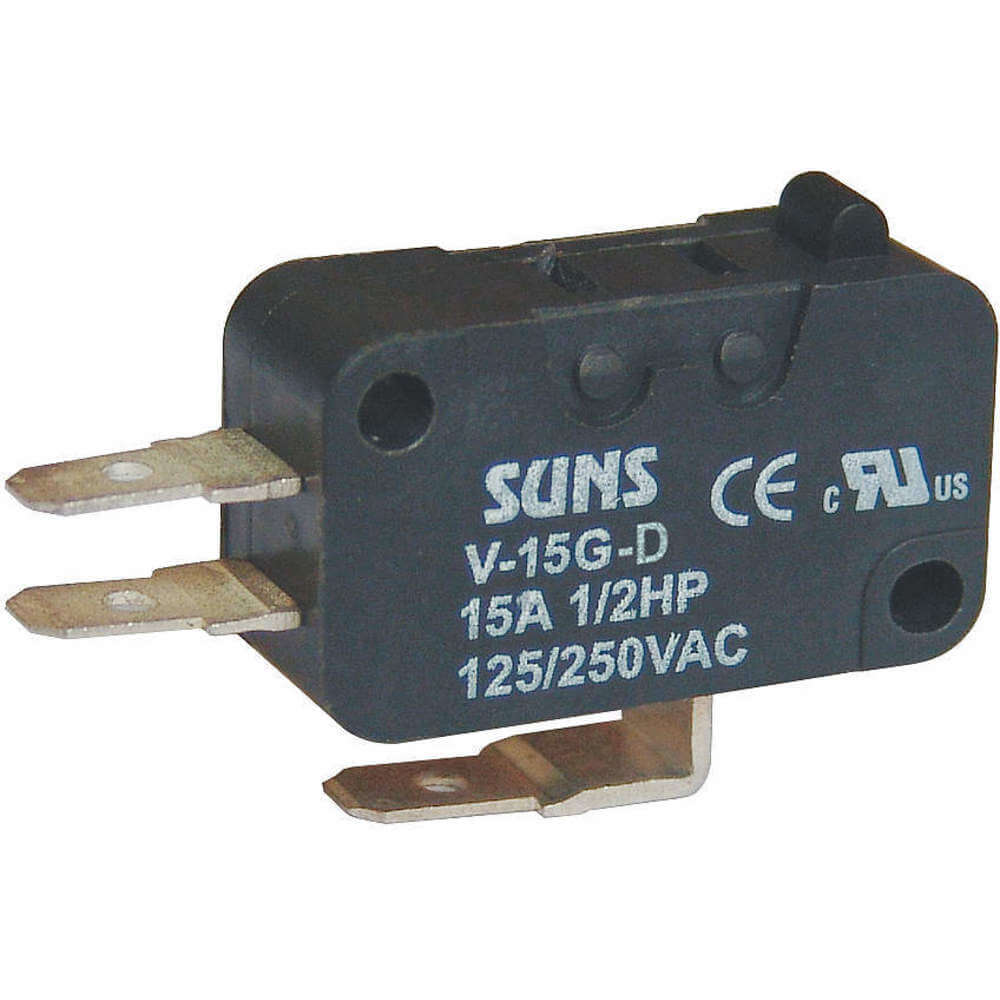

V-15G-D | 15A @ 240V | 2.32 ozf | Button | 0.047" | 0.051" | 0.012" | 15A | Button | €2.77 | |
 |

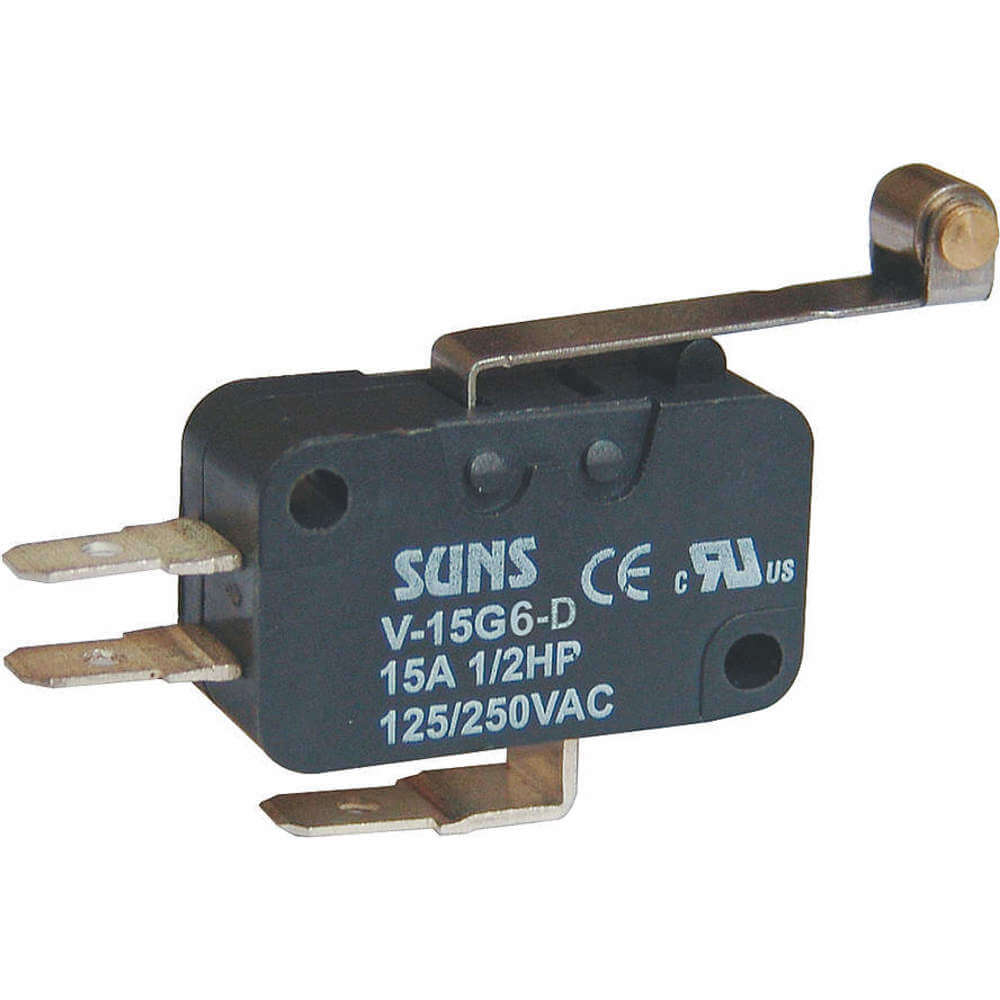

V-15G6-D | 15A @ 240V | 1.16 ozf | Long Roller Lever | 0.126" | 0.087" | 0.031" | 15A | Long Roller Lever | €4.54 |
