OMRON S8VK-X09024A-EIP Power Supply, 100 To 240 V AC, Single, 24 V DC, 90 W, 3.75 A, Din Rail
Item: CT4MUYModel: S8VK-X09024A-EIPCross Ref: 803VJ9
7 In Stock
Ships within 2 days via
10.00% off
€621.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Supply |
| Current - Inrush | 32A |
| Current - Output | 3.75A |
| Depth | 92.3 mm |
| Features | Power Boost Function At 150% (240 And 480 W), Product Replacement Time, Output Voltage, Output Current, And More Are Acquired On The Network And Can Be Managed All At Once, Product Status Can Be Checked On-Site Using The Indication Monitor, Side-By-Side Mounting Possible (Upto 55°C), Ul Class 2 Conformance (90 W Or Less) |
| Frequency | 50/60 Hz |
| Height | 94.7 mm |
| Hold Up Time | 130 ms @ 230V AC, 25 ms @ 115V AC |
| Hold Up Time - Minimum | 25 ms, 130 ms |
| Input Frequency - Maximuim | 450 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 5 yrs. |
| Maximum Efficiency @ 115v Ac | 86% |
| Maximum Efficiency @ 230v Ac | 87% |
| Mean Time Between Failures (mtbf) | 110000 hrs. |
| Mounting | Din Rail |
| Operating Temp. Range | -40°C to +70°C |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Noise - Maximum | 300 mV |
| Output Power - Rated | 90 W |
| Output Voltage | 24V DC |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 3.63" |
| Overall Height | 3.73" |
| Overall Width | 2.17" |
| Phase | Single |
| Power Rating | 90 W |
| Power Supply Style | Switching |
| Series | S8VK-X Series |
| Special Features | Alarm Indication, Led Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Peak-Hold Current Indication, Series Operation, Total Run Time Monitor |
| Start Up Time - Maximum | 1000 ms |
| Status Indicator | Green (Output), Red (Alarm) |
| Style | Switching |
| Width | 55 mm |
| Wire Connection Type | Push In |
| Wire Size - Maximum | 14 AWG |
| Wire Size - Minimum | 20 AWG |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 9.47 |
| Ship length (cm) | 9.23 |
| Ship width (cm) | 5.5 |
| Country of Origin | CN |
Product Variants
| Model | Status Indicator | Case Material | Mounting | Phase | Input Voltage | Ip Rating | Style | Operating Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

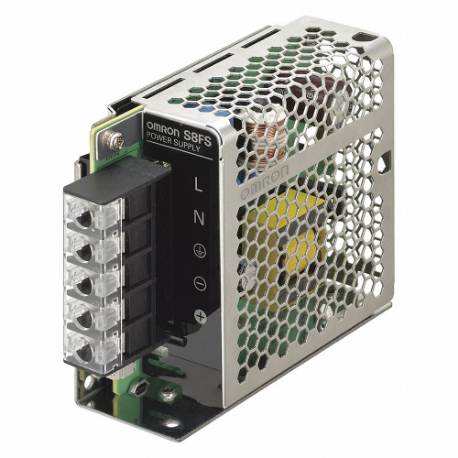

| S8FSG10012CD | Green LED | Aluminum | Din Rail | Single | 100-240V AC | - | Switching | - | €182.65 | |
| S8FSG15012CD | Green LED | Aluminum Case | Din Rail | Single | 100-240V AC | - | Switching | - | €224.96 | |
| S8FSG01512CD | Green LED | Aluminum | Din Rail | Single | 100-240V AC | - | Switching | - | €124.65 | |
| S8FSG03012CD | Green LED | Aluminum | Din Rail | Single | 100-240V AC | - | Switching | - | €116.78 | |
| S8FSG05012CD | Green LED | Aluminum | Din Rail | Single | 100-240V AC | - | Switching | - | €131.26 | |
| S8FSG10024CD | Green LED | Aluminum | Din Rail | Single | 100-240V AC | - | Switching | - | €190.63 | |
| S8FSG15024CD | Green LED | Aluminum | Din Rail | Single | 100-240V AC | - | Switching | - | €203.12 |
