OMRON S8VK-X06024-EIP Power Supply, 100 To 240 V AC, Single, 24 V DC, 60 W, 2.5 A, Din Rail | CT4MUX 803VJ8

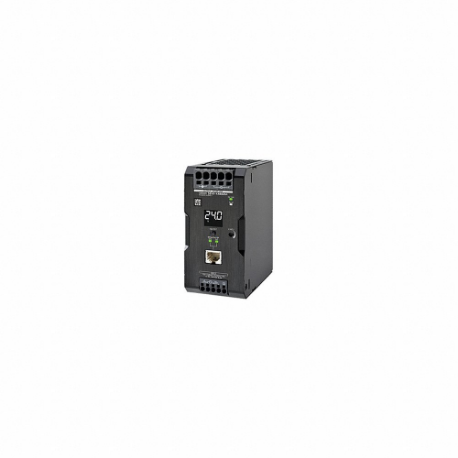

OMRON S8VK-X06024-EIP Power Supply, 100 To 240 V AC, Single, 24 V DC, 60 W, 2.5 A, Din Rail

Item: CT4MUXModel: S8VK-X06024-EIPCross Ref: 803VJ8
7 In Stock

Ships within 2 days via

€492.72
10.00% off
€443.45 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Power Supply
Current - Inrush 32A
Current - Output 2.5A
Current - Peak 3A
Depth 92.3 mm
Features Power Boost Function At 150% (240 And 480 W), Product Replacement Time, Output Voltage, Output Current, And More Are Acquired On The Network And Can Be Managed All At Once, Product Status Can Be Checked On-Site Using The Indication Monitor, Side-By-Side Mounting Possible (Upto 55°C), Ul Class 2 Conformance (90 W Or Less)
Frequency 50/60 Hz
Height 94.7 mm
Hold Up Time 110 ms @ 230V AC, 20 ms @ 115V AC
Hold Up Time - Minimum 20 ms, 110 ms
Input Frequency - Maximuim 450 Hz
Input Frequency - Minimum 47 Hz
Input Frequency - Nominal 50/60 Hz
Input Voltage 100-240V AC
Ip Rating IP20
Manufacturer Warranty 5 yrs.
Maximum Efficiency @ 115v Ac 85%
Maximum Efficiency @ 230v Ac 86%
Mean Time Between Failures (mtbf) 160000 hrs.
Mounting Din Rail
Operating Temp. Range -40°C to +70°C
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -40°F
Output Noise - Maximum 110 mV
Output Power - Rated 60 W
Output Voltage 24V DC
Output Voltage - Nominal 24V DC
Overall Depth 3.63"
Overall Height 3.73"
Overall Width 1.58"
Phase Single
Power Rating 60 W
Power Supply Style Switching
Series S8VK-X Series
Special Features Alarm Indication, Led Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation
Start Up Time - Maximum 1000 ms
Status Indicator Green (Output), Red (Alarm)
Style Switching
Width 55 mm
Wire Connection Type Push In
Wire Size - Maximum 14 AWG
Wire Size - Minimum 20 AWG

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)9.47
Ship length (cm)9.23
Ship width (cm)5.5
Country of OriginCN

Product Variants

ProductModelStatus IndicatorCase MaterialMountingPhaseInput VoltageIp RatingStyleOperating Temp. RangePrice
OMRON S8FSG10012CD Dc Power Supply, 100 To 240 VAC, Single, 12VDC, 100W, 8.5, Din Rail | CT4MQY 55JA28 S8FSG10012CDGreen LEDAluminumDin RailSingle100-240V AC-Switching-€182.65
OMRON S8FSG15012CD Dc Power Supply, 100 To 240 VAC, Single, 12VDC, 150W, 13, Din Rail | CT4MQZ 55JA30 S8FSG15012CDGreen LEDAluminum CaseDin RailSingle100-240V AC-Switching-€224.96
OMRON S8FSG01512CD Dc Power Supply, 100 To 240 VAC, Single, 12VDC, 15W, 1.3, Din Rail | CT4MRA 55JA19 S8FSG01512CDGreen LEDAluminumDin RailSingle100-240V AC-Switching-€124.65
OMRON S8FSG03012CD Dc Power Supply, 100 To 240 VAC, Single, 12VDC, 30W, 3, Din Rail | CT4MRB 55JA22 S8FSG03012CDGreen LEDAluminumDin RailSingle100-240V AC-Switching-€116.78
OMRON S8FSG05012CD Dc Power Supply, 100 To 240 VAC, Single, 12VDC, 50W, 4.3, Din Rail | CT4MRC 55JA25 S8FSG05012CDGreen LEDAluminumDin RailSingle100-240V AC-Switching-€131.26
OMRON S8FSG10024CD Dc Power Supply, 100 To 240 VAC, Single, 24VDC, 100W, 4.5, Din Rail | CT4MRD 55JA29 S8FSG10024CDGreen LEDAluminumDin RailSingle100-240V AC-Switching-€190.63
OMRON S8FSG15024CD Dc Power Supply, 100 To 240 VAC, Single, 24VDC, 150W, 6.5, Din Rail | CT4MRE 55JA31 S8FSG15024CDGreen LEDAluminumDin RailSingle100-240V AC-Switching-€203.12
