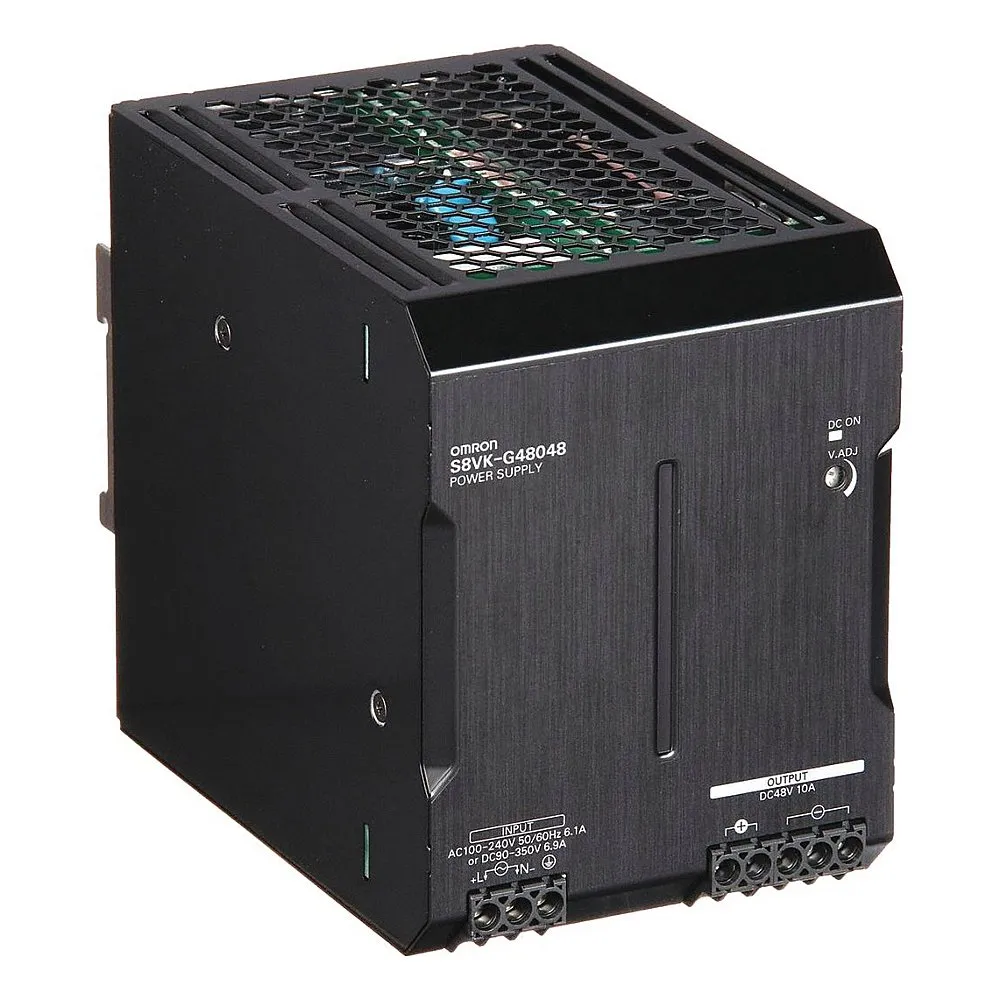

OMRON S8VK-G48048 Dc Power Supply 48vdc 10a 50/60hz
Item: AF7LNYModel: S8VK-G48048Cross Ref: 21XP14
7 In Stock
Ships within 2 days via
5.00% off
€437.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Case Material | Metal Case |
| Current - Inrush | 32A |
| Current - Peak | 12A |
| Depth | 150 mm |
| Frequency | 50/60 Hz |
| Height | 125 mm |
| Hold Up Time | 40 msec |
| Hold Up Time | 40 ms |
| Hold Up Time - Minimum | 40 ms, 50 ms |
| Housing Material | Metal |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Manufacturer Warranty | 3 yrs. |
| Maximum Startup Time | 520 ms |
| Mean Time Between Failures (mtbf) | 135000 hrs. |
| Mounting | Din Rail |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Amps | 10 |
| Output Amps | 10A |
| Output Noise | 470mV |
| Output Noise | 470 mV |
| Output Noise - Maximum | 470 mV |
| Output Power - Rated | 480 W |
| Output Voltage - Nominal | 48V DC |
| Overall Depth | 5.91" |
| Overall Height | 4.92" |
| Overall Width | 3.74" |
| Peak Amps | 12 |
| Peak Amps | 12A |
| Phase | Single |
| Power Rating | 480 W |
| Power Supply Style | Switching |
| Series | S8VK-G Series |
| Special Features | Automatic Reset, Led Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation |
| Start Up Time - Maximum | 520 ms |
| Status Indicator | Green LED |
| Style | Switching |
| Width | 95 mm |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 10 AWG |
| Wire Size - Minimum | 16 AWG |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 18.54 |
| Ship width (cm) | 18.03 |
| HS code | 8504409540 |
Product Variants
| Product | Model | Case Material | Hold Up Time | Output Noise | Peak Amps | Mounting | Phase | Input Voltage | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

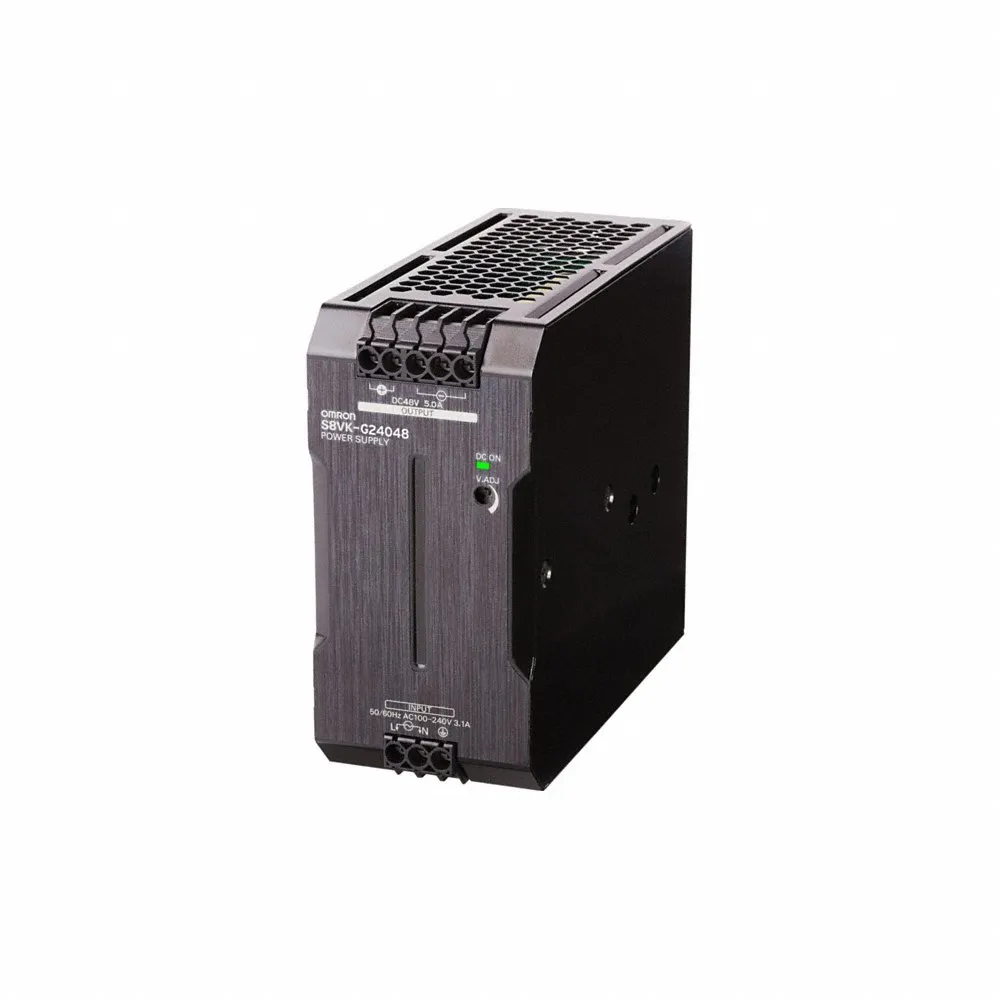

S8VK-G24048 | Metal | 43 ms | 350 mV | 6A | Din Rail | Single | 100-240V AC | IP20 | €348.81 |
