OMRON S8VK-G03005 Dc Power Supply 5vdc 5a 50/60hz
Item: AF7LNRModel: S8VK-G03005Cross Ref: 21XP05
7 In Stock
Ships within 2 days via
5.00% off
€128.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Power Supply |
| Case Material | Plastic Case |
| Current - Inrush | 32A |
| Current - Peak | 6A |
| Depth | 90 mm |
| Frequency | 50/60 Hz |
| Height | 90 mm |
| Hold Up Time | 33 ms |
| Hold Up Time | 33 msec |
| Hold Up Time - Minimum | 33 ms, 177 ms |
| Housing Material | Plastic |
| Input Frequency - Maximuim | 450 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 3 yrs. |
| Maximum Startup Time | 550 ms |
| Mean Time Between Failures (mtbf) | 135000 hrs. |
| Mounting | Din Rail |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Amps | 5A |
| Output Amps | 5 |
| Output Noise | 30 mV |
| Output Noise | 30mV |
| Output Noise - Maximum | 30 mV |
| Output Power - Rated | 30 W |
| Output Voltage - Nominal | 5V DC |
| Overall Depth | 3.54" |
| Overall Height | 3.54" |
| Overall Width | 1.26" |
| Peak Amps | 6A |
| Peak Amps | 6 |
| Phase | Single |
| Power Rating | 30 W |
| Power Supply Style | Switching |
| Series | S8VK-G Series |
| Special Features | Automatic Reset, Led Diagnostic Indicators, Overload Protection, Overvoltage Protection, Parallel Capability, Series Operation |
| Start Up Time - Maximum | 550 ms |
| Status Indicator | Green LED |
| Style | Switching |
| Width | 32 mm |
| Wire Connection Type | Screw Terminals |
| Wire Size - Maximum | 12 AWG |
| Wire Size - Minimum | 24 AWG |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 11.43 |
| HS code | 8504409540 |
Product Variants
| Product | Model | Hold Up Time | Output Noise | Peak Amps | Mounting | Phase | Input Voltage | Ip Rating | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

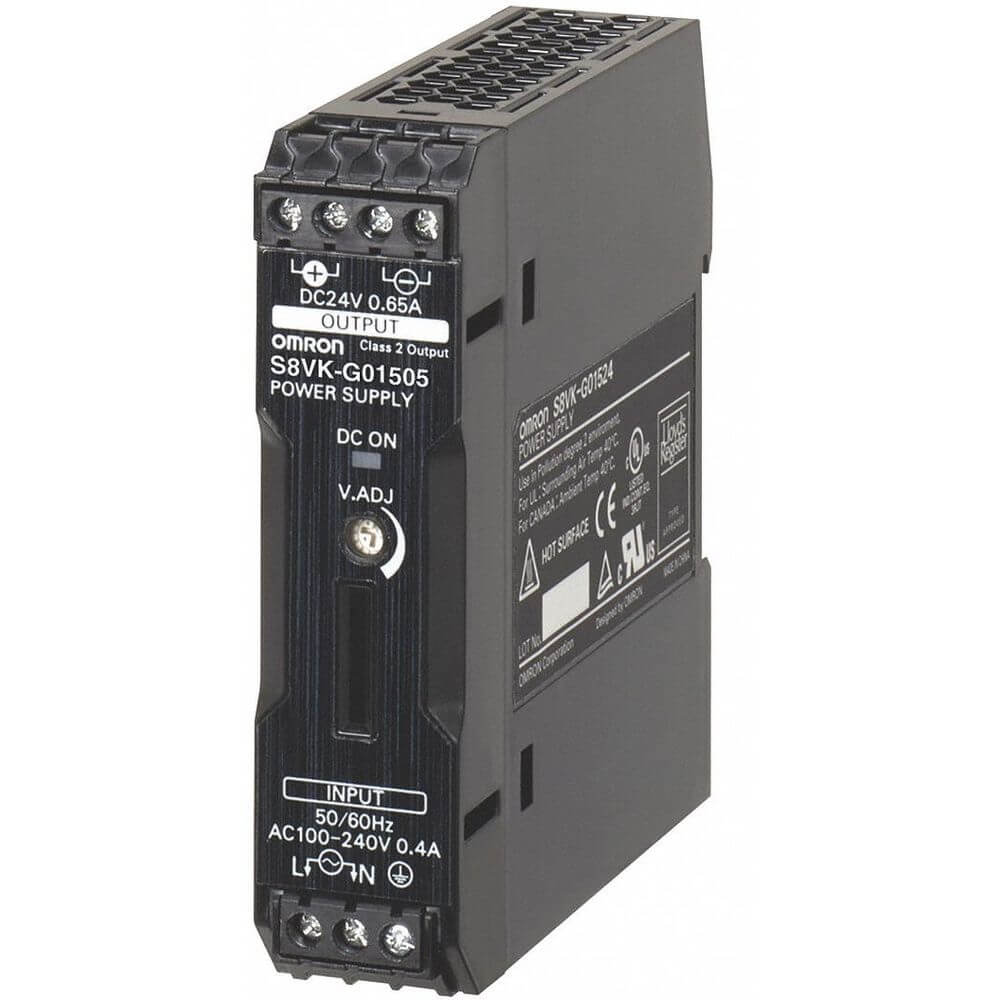

S8VK-G01505 | 28 ms | 60 mV | 3.6A | Din Rail | Single | 100-240V AC | IP20 | Switching | €101.28 |
