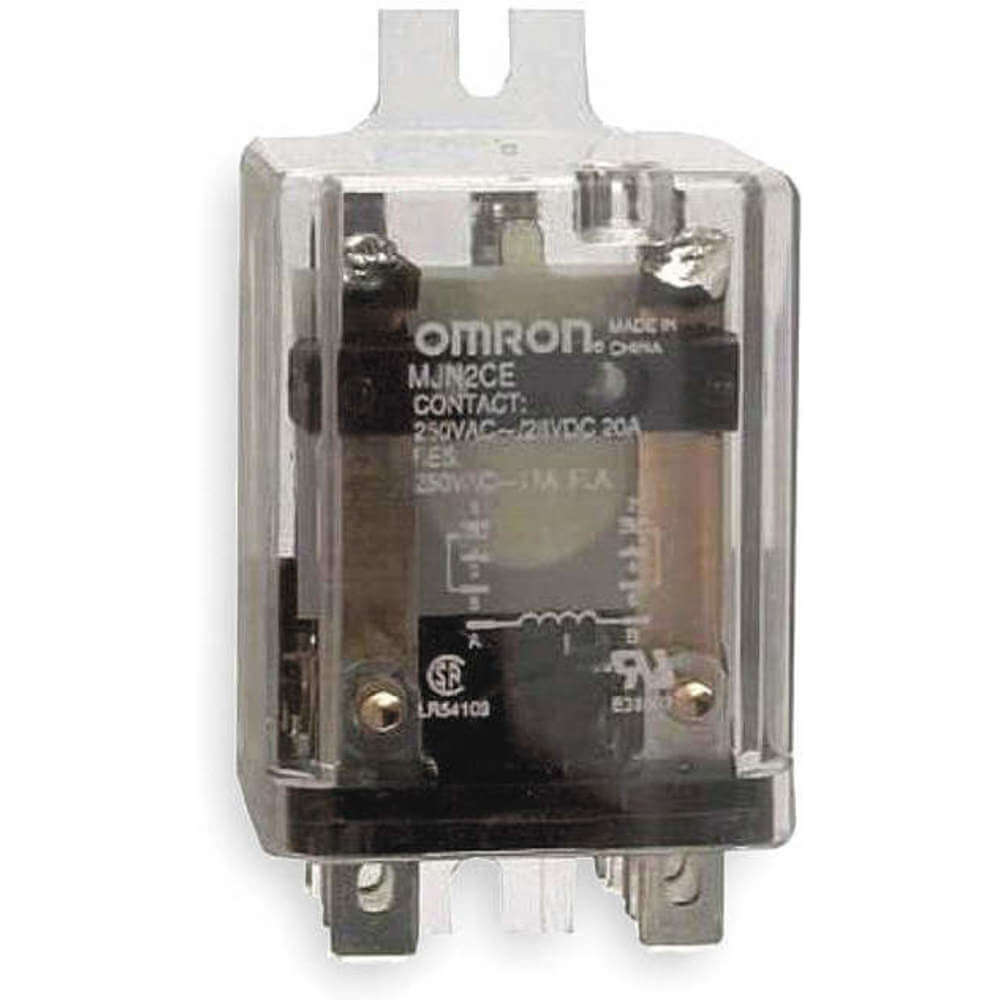

OMRON MJN2CE-DC24 Relay 8pin Dpdt 20a 24vdc
Item: AB4HXBModel: MJN2CE-DC24Cross Ref: 1YCV6
7 In Stock
Ships within 2 days via
10.00% off
€54.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps Rating | 20A |
| Base Shape | Octal |
| Base Type | Square |
| Body Depth | 1 2/5" , 1.91" |
| Body Height | 1.53" , 1.9" |
| Body Width | 1 2/5" , 1.53" |
| Coil Va Rating | 1.2 VA |
| Coil Voltage | 24V DC |
| Contact Amp Rating (inductive) | 20A |
| Contact Form | DPDT |
| Contact Material | Silver Alloy |
| Contact Rating (ac) | 20A @ 277V |
| Contact Rating (dc) | 20A @ 28V |
| Current Rating | 20A |
| Dielectric Strength | 2500/750V AC |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Enclosed |
| Features | General Purpose Relays, Non-Latching |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Hp @ 120v | 3/4 hp |
| Hp @ 240v | 1 1/2 hp |
| Insulation Resistance | 1000 M ohms |
| Mechanical Operating Durability | 10000000 |
| Motor Rating | Yes |
| Mounting | Side |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Number Of Pins/terminals | 8 |
| Number Of Poles | 2 |
| Operating Amps | 20A |
| Overall Depth | 2.9" |
| Overall Height | 2.18" |
| Power Consumption | 1.2 W |
| Power Consumption - Relay | 1.2 W |
| Push-to-test Button | No Test Button |
| Relay Mounting | Side Flange |
| Relay Mounting Style | Surface (Side Flange) |
| Resistive Contact Amp Rating | 20A |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Series | MJN Series |
| Status Indicator | No Indicator |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 5.33 |
| HS code | 8536490080 |
| Country of Origin | CN |
Product Variants
| Model | Coil Voltage | Power Consumption | Coil Va Rating | Body Height | Body Width | Body Depth | Hp @ 120v | Hp @ 240v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MJN2CE-DC12 | 12V DC | 1.2 W | 1.2 VA | 2.9" | 1 2/5" | 1 2/5" | 3/4 hp | 1 1/2 hp | €60.03 | |
| MJN2CE-AC24 | 24V AC | 1.7 VA | 1.7 VA | 2.9" | 1 2/5" | 1 2/5" | 1/3 hp | 1/2 hp | €54.64 | |
| MJN2CE-AC120 | 120V AC | 1.7 VA | 1.7 VA | 1.9" | 1 2/5" | 1 2/5" | 1/3 hp | 1/2 hp | €141.41 | |
| MJN2CE-AC240 | 240V AC | 1.7 VA | 1.7 VA | 2.9" | 1 2/5" | 1 2/5" | 1/3 hp | 1/2 hp | €67.69 |
