OMRON G2R-1-T-DC24 Relay 5Pin SPDT 10A 24VDC
Item: AE7MLMModel: G2R-1-T-DC24Cross Ref: 5ZH17
7 In Stock
Ships within 2 days via
10.00% off
€10.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Amps Rating | 10A |
| Base Shape | Square |
| Base Type | Square |
| Body Depth | 1 4/25" , 14/25" |
| Body Height | 1 4/25" , 1.73" |
| Body Width | 1 1/5" , 13/25" |
| Coil Resistance | 1100 ohms |
| Coil Va Rating | 0.52 VA |
| Coil Voltage | 24V DC |
| Contact Form | SPDT |
| Contact Material | Silver Alloy |
| Contact Rating | 10A @ 250V AC/30V DC |
| Contact Rating (ac) | 10A @ 250V |
| Contact Rating (dc) | 10A @ 30V |
| Current Rating | 10A |
| Dielectric Strength | 1000V AC Between Contacts Of Same Polarity, 3000V AC Between Contacts Of Different Polarity, 5000V AC Between Coil And Contacts |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Flux Sealed |
| Flat Pin Width | 0.187" |
| Hp @ 120v | 1/3 hp |
| Hp @ 240v | 1/2 hp |
| Insulation Resistance | 1000 M ohms |
| Mechanical Operating Durability | 20000000 |
| Mfr. Series | G2R Power Series |
| Min. Switching Amps | 100 mA |
| Motor Rating | Yes |
| Mounting | Top |
| Mounting Hole Di. | 0.05" |
| Number Of Pins | 5 |
| Number Of Pins - Relay | 5 |
| Number Of Pins/terminals | 5 |
| Overall Depth | 1 1/2" |
| Overall Height | 1.49" |
| Power Consumption | 0.53 W |
| Power Consumption - Relay | 0.5 W |
| Push-to-test Button | No Test Button |
| Relay Mounting | Top Flange |
| Relay Mounting Style | Surface (Top Flange) |
| Resistive Contact Amp Rating | 10A |
| Response Time | 5 ms |
| Sealing | Flux Protection |
| Socket | None |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 4.83 |
| HS code | 8536410050 |
| Country of Origin | MY |
Product Variants
| Model | Mounting | Coil Voltage | Contact Form | Number Of Pins | Coil Va Rating | Sealing | Number Of Pins/terminals | Mechanical Operating Durability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

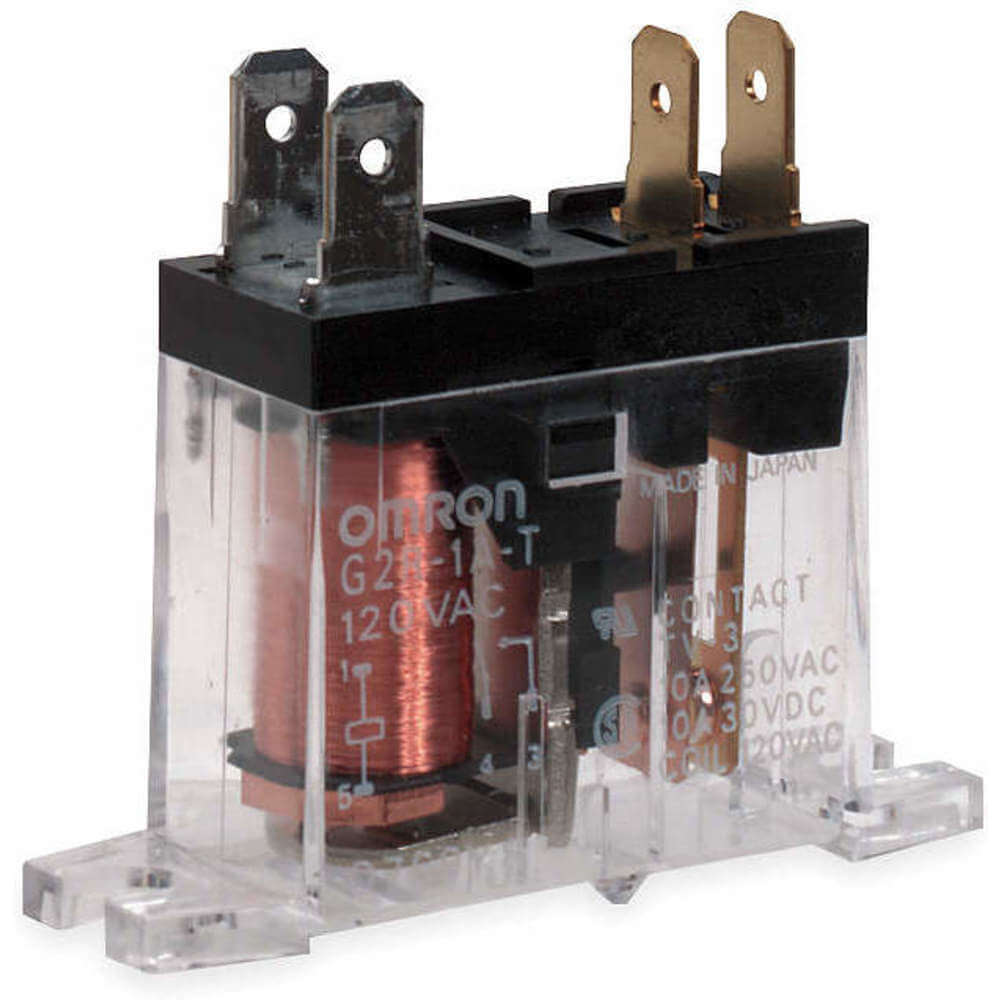

| G2R-1A-T-AC240 | Top | 240V AC | - | 4 | 0.9 VA | Flux Protection | 4 | 10000000 | €30.14 | |

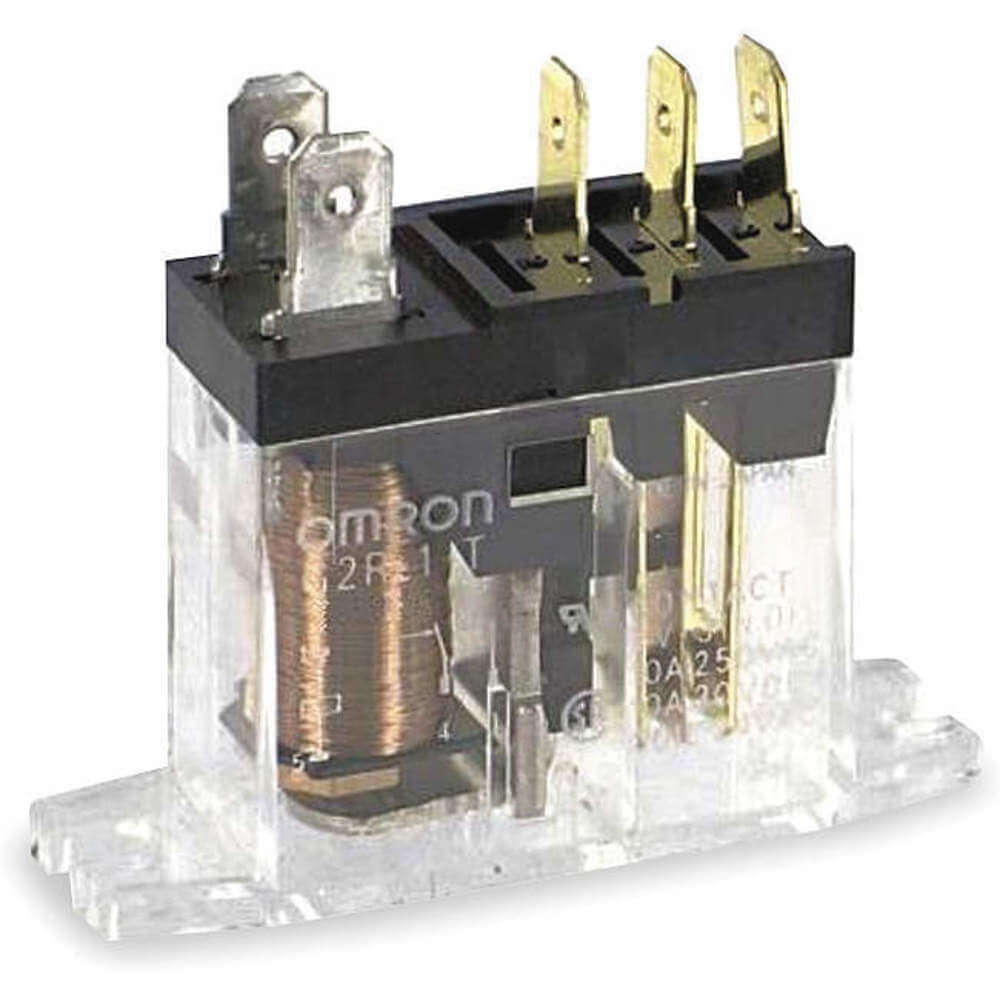

| G2R-1-T-AC240 | Top | 240V AC | SPDT | 5 | 0.9 VA | Flux Protection | - | - | €31.22 | |
| G2R-1A-T-DC12 | Top | 12V DC | SPST/NO | 4 | 0.52 VA | Flux Protection | 4 | 20000000 | €11.68 | |
| G2R-1A-T-DC24 | Top Flange | 24V DC | SPST/NO | 4 | 0.52 VA | Flux Sealed | 4 | 20000000 | €11.68 | |
| G2R-1-T-DC12 | Top | 12V DC | SPDT | 5 | 0.52 VA | Flux Protection | 5 | 20000000 | €11.77 | |
| G2R-1A-T-AC24 | Top | 24V AC | SPST/NO | 4 | 0.9 VA | Flux Protection | 4 | 10000000 | €16.96 | |
| G2R-1A-T-AC120 | Top Flange | 120V AC | SPST/NO | 4 | 0.9 VA | Flux Sealed | 4 | 10000000 | €16.80 |
