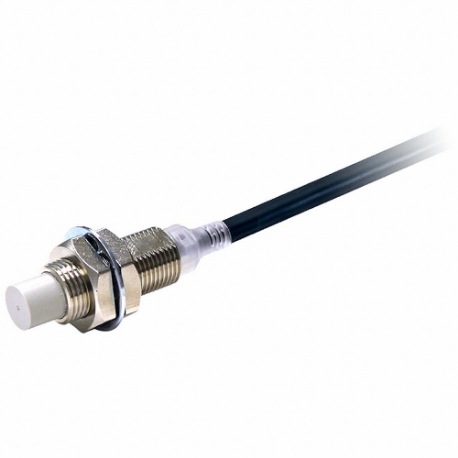

OMRON E2E-X5MC112 2M Proximity Sensor, 10 To 30 V DC, 800 Hz Proximity Sensor Op Freq, 3 Wire Npn, Cable
Item: CT4MWDModel: E2E-X5MC112 2MCross Ref: 798JZ6
7 In Stock
Ships within 2 days via
5.00% off
€209.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Case Material | Nickel Plated Brass |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | Cables With Oil Resistance Shut Out, E-Jig Compatible, Early Error Detection, Easy Installation, Environmental Resistance, Oil Resistance, Prox3 Hybrid Circuitry With Thermal Distance Control 2, Quick Recovery, Stable Operation, Vibration Resistant, Washdown Resistant, Water Resistant |
| Included | Clamping Nuts, Toothed Washer |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67, IP67G, IP69K |
| Length | 47.1 mm |
| Max. Detecting Distance | 5 mm |
| Max. Load Amps | 16 mA , 200 mA |
| Max. Operating Temp. | 185°F |
| Max. Output Circuit Voltage | 30V DC |
| Min. Operating Temp. | -40°F |
| Min. Output Circuit Voltage | 10V DC |
| No. Of Wires | 3 |
| Nominal Sensor Dia. | M12 Threaded |
| Operating Temp. | -40°C to +85°C |
| Output Circuit | NPN |
| Output Circuit Contact Form | No |
| Output Circuit Type | NPN |
| Output Mode | No |
| Overall Height | 47 mm |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Dia. | 12 mm |
| Proximity Sensor Electrical Connection | Cable |
| Proximity Sensor Output Circuit Type | Three Wire NPN |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 12 mm |
| Series | E2E NEXT Series |
| Shielded/unshielded | Unshielded |
| Supply Voltage | 10-30V DC |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Load Amps | Case Material | Proximity Sensor Dia. | Ip Rating | Output Mode | Proximity Sensor Output Circuit Type | Supply Voltage | Sensor Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E2E-X5Y1 | 300 mA | Nickel Plated Brass | 18 mm | IP67 | No | Two Wire | 20-264V AC | 18 mm | €224.52 | |
 |
E2EX2MC182M | 200 mA | Stainless Steel | 8 mm | IP67, IP67G, IP69K | No | Three Wire NPN | 10-30V DC | 8 mm | €271.63 | |
 |
E2E-X18MC130 2M | 200 mA | Nickel Plated Brass | 30 mm | IP67, IP67G, IP69K | No | Three Wire NPN | 10-30V DC | 30 mm | €279.77 | |
 |
E2E-X1R5C18-M1 | 200 mA | Stainless Steel | 8 mm | IP67, IP69K | No | Three Wire NPN | 10-30V DC | 8 mm | €279.76 | |
 |
E2E-X1R5C18 2M | 200 mA | Stainless Steel | 8 mm | IP67, IP67G, IP69K | No | Three Wire NPN | 10-30V DC | 8 mm | €237.43 | |
 |
E2EX1R5C282M | 200 mA | Stainless Steel | 8 mm | IP67, IP67G, IP69K | NC | Three Wire NPN | 10-30V DC | 8 mm | €232.55 | |
|
E2E-X1R5B1D8-M1 | 16 mA | Stainless Steel | 8 mm | IP67, IP69K | No | Three Wire PNP | - | - | €249.78 |
