OMRON A-20GQ Snap Switch 20a Spdt Panel Mount Plunger
Item: AC2JRQModel: A-20GQCross Ref: 2KRK3
7 In Stock
Ships within 2 days via
10.00% off
€55.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Snap Switch |
| Ac Contact Rating | 20A @ 480V |
| Actuation Type | Panel Mount Plunger |
| Actuator Length | 0.91" |
| Actuator Style | Plunger |
| Actuator Type | Panel Mount Plunger |
| Actuator Type - Snap Action Switch | Panel Mount, Plunger |
| Amps Rating | 20A |
| Body Depth | 1.8" |
| Body Height | 0.69" |
| Body Material | Phenolic |
| Body Width | 1.94" |
| Center Mounting Hole Distance | 1" |
| Dc Contact Rating | 0.25A @ 250V, 0.5A @ 125V |
| Depth | 0.69" |
| Depth - Snap Action Switch | 0.69" |
| Differential Travel | 0.008" |
| Differential Travel - Maximum | 0.0079" |
| Display Qty | 1 |
| Electrical Connection | Solder |
| Electrical Connection - Snap Action Switch | Solder Lug |
| Height | 0.89" |
| Height - Snap Action Switch | 0.89" |
| Length | 1.94" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Max. Pretravel | 0.051" |
| Maximum Operating Force | 6.13N |
| Mounting Hole Diameter | 3/16" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 14.12 oz. to 22.06 oz. |
| Operating Force - Minimum | 3.92N |
| Operating Temp. | -13°F to +176°F |
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -13°F |
| Over Travel | 0.22" |
| Overall Depth | 1.8" |
| Overall Height | 0.69" |
| Overall Width | 1.94" |
| Pre-travel | 0.051" |
| Release Force | 10.05 ozf |
| Roller Adjustability | Fixed |
| Series | A Series |
| Standards | Csa, Ul Listed |
| Terminal Type | Solder |
| Watertight | No |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 4.83 |
| HS code | 8536509040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Release Force | Ac Contact Rating | Electrical Connection | Max. Pretravel | Over Travel | Terminal Type | Differential Travel | Amps Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

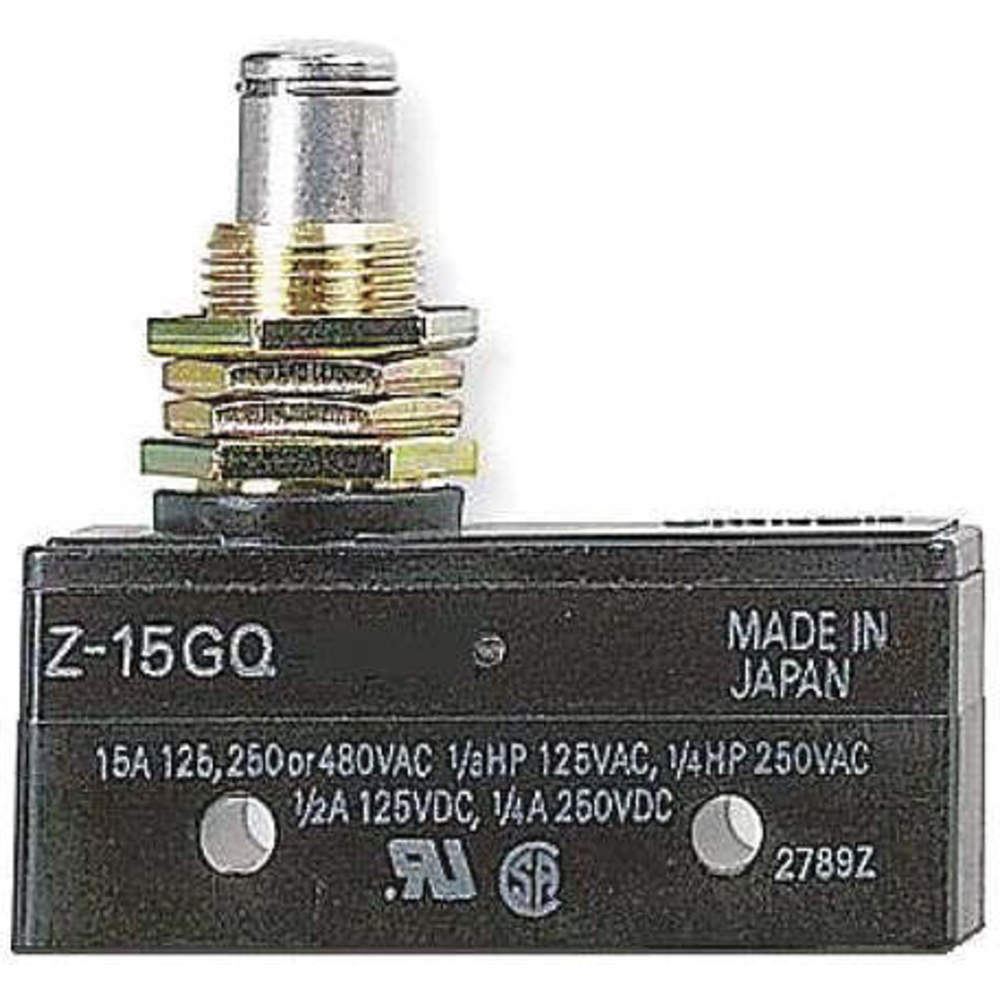

Z-15GQ | 4.03 ozf | 15A @ 250V | Solder | 0.016" | 0.217" | Solder | 0.002" | 15A | €35.28 | |
 |

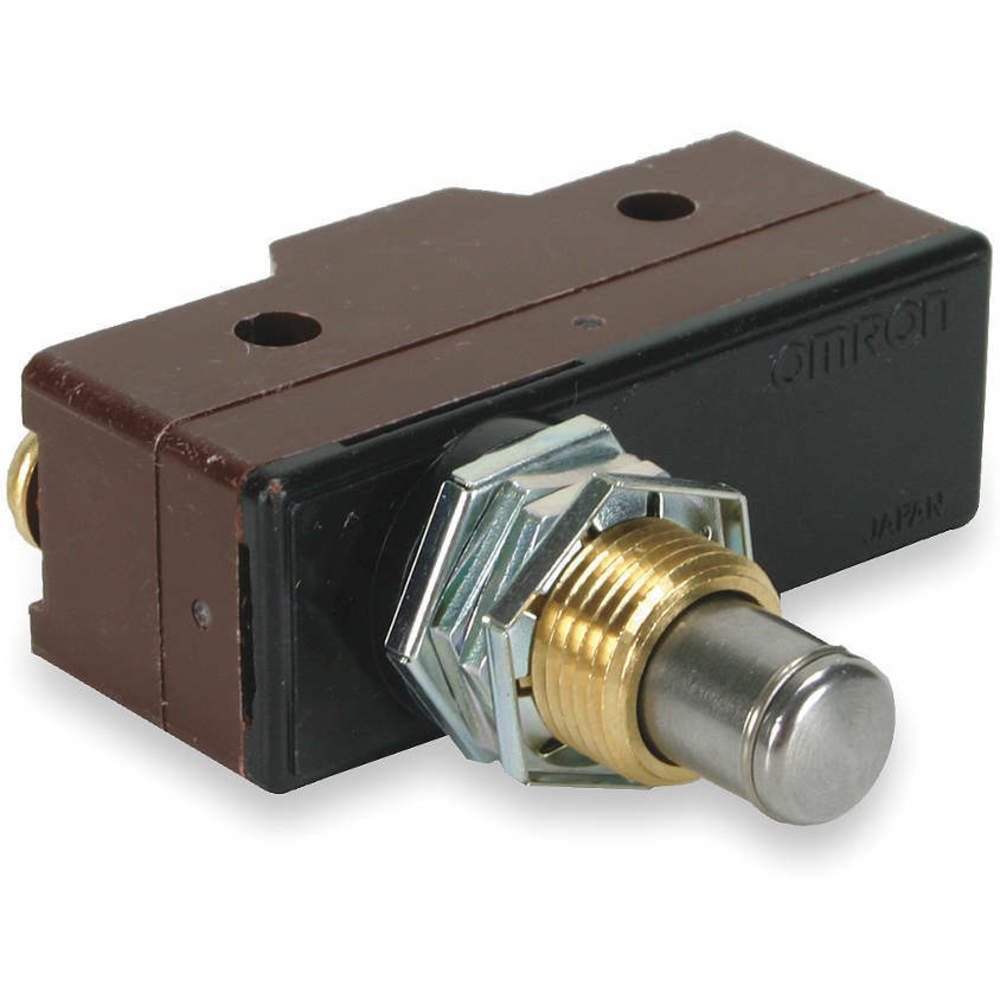

X-10GQ-B | 4.03 ozf | 2A @250V | Screw | 0.035" | 0.005" | Screw | 0.007" | 10A | €54.59 | |
 |
Z-20GQ | 10 ozf | 20A @ 480V | Screw | 0.051" | 0.219" | Screw | 0.109" | 20A | €20.03 | |
|
Z-25GQ | 10 ozf | 25A @ 480V | Screw | 0.051" | 0.219" | Screw | 0.008" | 25A | €23.69 | |
 |
Z-15GQ-B7-K | 4.03 ozf | 15A @ 250V | Screw | 0.016" | 0.217" | Screw | 0.002" | 15A | €33.35 | |
|
A-20GQ-B7-K | 10 oz. | - | - | 0.051" | 0.22" | Screw | 0.008" | 20A | €49.24 |
