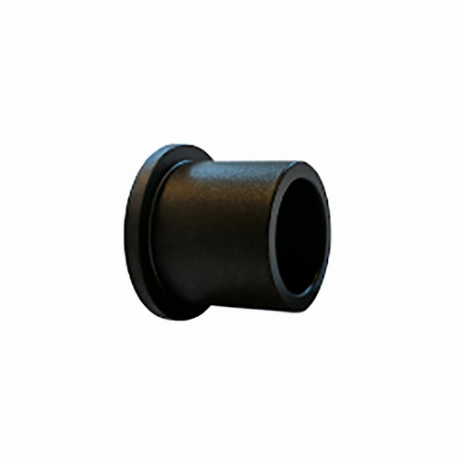

OILITE VSPF-0305-04B Flanged Sleeve Bearing, 3/16 Inch Bore, 5/16 Inch Od, 1/2 Inch Overall Length
Item: CT4LTQModel: VSPF-0305-04BCross Ref: 788R01
7 In Stock
Ships within 2 days via
10.00% off
€452.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sleeve Bearing |
| Bore Dia. | 0.188" |
| Bore Diameter | 3/16" |
| Color | Black |
| Flange Dia. | 0.437" |
| Flange Thickness | 0.062" |
| Length | 1/2" |
| Maximum Pv | 300000 lbs.-ft./sq. in-min. |
| Maximum Temperature | 550°F |
| Min. Temp. | -400°F |
| Outside Dia. | 0.312" |
| Outside Diameter | 5/16" |
| Overall Length | 1/2" |
| Plain Bearing Material | Vespel Sp-21 |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 0.79 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Bore Dia. | Min. Temp. | Overall Length | Max. Pv | Plain Bearing Material | Max. Temp. | Color | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VSPF-2428-16B | 1 3/4" | 1 1/2" | -400°F | 2" | 300000 lbs.-ft./sq. in-min. | Vespel Sp-21 | - | Black | 1 | €5,483.53 | |
| PF-1618-08B | 1 1/8" | 1" | -40°F | 1" | 25000 lbs.-ft./sq. in-min. | PEEK | 500°F | Black | 2 | €812.09 | |
| PF-1618-04B | 1 1/8" | 1" | -40°F | 1/2" | 25000 lbs.-ft./sq. in-min. | PEEK | 500°F | Black | 3 | €714.62 | |
| PF-1618-06B | 1 1/8" | 1" | -40°F | 3/4" | 25000 lbs.-ft./sq. in-min. | PEEK | 500°F | Black | 2 | €663.43 | |
| PF-0812-08B | 3/4" | 1/2" | -40°F | - | - | PEEK | 500°F | Black | 2 | €707.74 | |
| VSPF-0812-04B | 3/4" | 1/2" | -400°F | 1/2" | 300000 lbs.-ft./sq. in-min. | Vespel Sp-21 | - | Black | 1 | €772.60 | |
| PF-0812-06B | 3/4" | 1/2" | -40°F | 3/4" | 25000 lbs.-ft./sq. in-min. | PEEK | 500°F | Black | 2 | €624.59 |
