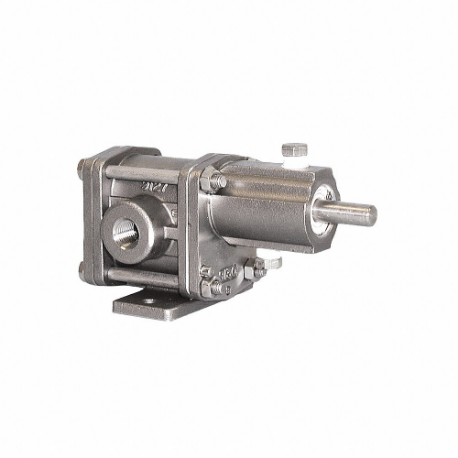

OBERDORFER R10216CA Rotary Gear Pump Head, Intermediate, Pedestal, 316 Stainless Steel
Item: CT4HNFModel: R10216CACross Ref: 6KXR2
7 In Stock
Ships within 2 days via
10.00% off
€3,979.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Gear Pump Head |
| Body Material | Stainless Steel |
| Compatible Motor Frame | 56C |
| Connection Size | 1/4" |
| Connection Type | NPT |
| Design | Pedestal |
| Duty Rating | Intermediate |
| Flow Rate @ 100 Psi | 0.4 GPM |
| Flow Rate @ 125 Psi | 0.3 GPM |
| Flow Rate @ 20 Psi | 0.5 GPM |
| Flow Rate @ 25 Psi | 0.5 GPM |
| Flow Rate @ 40 Psi | 0.5 GPM |
| Flow Rate @ 50 Psi | 0.5 GPM |
| Flow Rate @ 60 Psi | 0.4 GPM |
| Flow Rate @ 75 Psi | 0.4 GPM |
| Flow Rate @ 80 Psi | 0.4 GPM |
| Flow Rate @ Freeflow | 0.6 GPM |
| Frame Type | 56C |
| Gear Design | Helical |
| Gear Material | Steel |
| Gpm @ 100 Psi | 0.4 GPM |
| Gpm @ 25 Psi | 0.5 GPM |
| Gpm @ 50 Psi | 0.5 GPM |
| Gpm @ 60 Psi | 0.4 GPM |
| Gpm @ 75 Psi | 0.4 GPM |
| Gpm @ 80 Psi | 0.4 GPM |
| Gpm @ Freeflow | 0.6 GPM |
| Gpm @ Freeflow @ 1725 Rpm | 0.6 GPM |
| Grade | Grade 316 |
| Hp @ 100 Psi | 4/25 hp |
| Hp @ 125 Psi | 19/100 hp |
| Hp @ 20 Psi | 1/20 hp |
| Hp @ 25 Psi | 3/50 hp |
| Hp @ 40 Psi | 9/100 hp |
| Hp @ 50 Psi | 1/10 hp |
| Hp @ 60 Psi | 3/25 hp |
| Hp @ 75 Psi | 13/100 hp |
| Hp @ 80 Psi | 7/50 hp |
| Hp @ Free Flow | 1/50 hp |
| Hp @ Free Flow @ 1725 Rpm | 1/50 hp |
| Max. Motor Speed | 1725 RPM |
| Max. Operating Pressure | 110 psi |
| Max. Operating Temperature | 450°F |
| Max. Pressure | 110 psi |
| Max. Suction Lift | 1.5 ft. |
| Max. Viscosity | 500 SUS |
| Min. Operating Temperature | -50°F |
| Motor Hp | 1/3 hp |
| Motor Mounting Type | Pedestal |
| Operating Temp. Range | -50°F to +450°F |
| Port Size | 1/4" |
| Pump Material | Stainless Steel |
| Pump Rpm | 1725 RPM |
| Relief Valve | Without |
| Relief Valve | No |
| Required Hp | 1/3 hp |
| Seal Material | Carbon, Ceramic, PTFE |
| Seal Type | Mechanical |
| Shaft Dia. | 3/8" |
| Shaft Height | 1 22/25" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 3/8" |
| Temp. Range | -50°F to +450°F |
Shipping Info:
| Ship weight (kg) | 1.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Motor Hp | Port Size | Shaft Dia. | Flow Rate @ 50 Psi | Flow Rate @ 75 Psi | Max. Pressure | Max. Suction Lift | Flow Rate @ 100 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S93516CA | 5 hp | 1 1/2" | 5/8" | 21.4 GPM | 20.8 GPM | 150 psi | 15 ft. | - | €8,628.89 | |
| S93016CA | 3 hp | 1 1/2" | 5/8" | 18.6 GPM | 18.1 GPM | 150 psi | 12 ft. | 17.6 GPM | €8,663.71 | |
| R10316CA | 1/3 hp | 1/4" | 3/8" | 1.3 GPM | 1.2 GPM | 150 psi | 2 ft. | 1.1 GPM | €4,633.35 | |
| S94616CA | 5 hp | 1 1/2" | 5/8" | 28.4 GPM | 27.8 GPM | 150 psi | 17 ft. | 27.3 GPM | €12,970.87 | |
| S21016CA | 1 hp | 1/2" | 1/2" | 5.8 GPM | 5.7 GPM | 150 psi | 6 ft. | 5.5 GPM | €7,431.44 | |
| S20716CA | 3/4 hp | 1/2" | 1/2" | 4.2 GPM | 4.1 GPM | 150 psi | 5 ft. | 4 GPM | €5,777.56 | |
| S21416CA | 1 1/2 hp | 1/2" | 1/2" | 8.3 GPM | 8.1 GPM | 150 psi | 8 ft. | 8 GPM | €6,568.26 |
