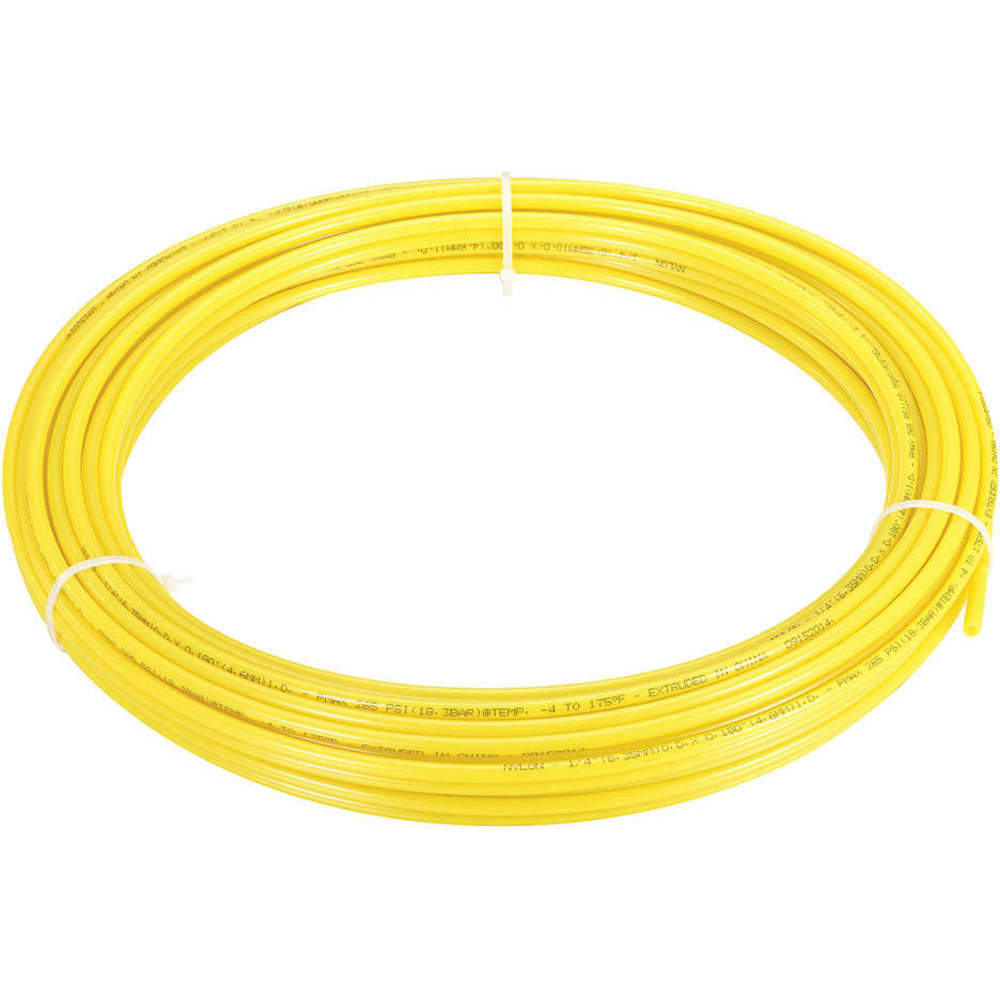

NYCOIL 2VDY3 Tubing 1/4 Inch Outer Diameter Nylon Yellow 100 Feet
Item: AC3PQJModel: 2VDY3
7 In Stock
Ships within 2 days via
10.00% off
€48.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tubing |
| Application | Air |
| Autoclavable | No |
| Burst Pressure | 795 psi |
| Clarity | Opaque |
| Color | Yellow |
| Fitting Compatibility | Compression, Push-To-Connect |
| Flexibility | Semi Flexible |
| Flow Application | Automation Machines, Conveyors, Packaging, Robotics |
| Hardness | Shore D 60 |
| Industry Application | Automation |
| Inside Diameter | 3/16" |
| Length | 100 ft. |
| Material | Nylon |
| Max. Pressure | 400 psi |
| Maximum Operating Pressure | 400 psi @ 68°F |
| Maximum Operating Temperature | 175°F |
| Maximum Vacuum Pressure | 28 in. hg |
| Minimum Operating Temperature | -4°F |
| Outside Dia. | 1/4" |
| Outside Diameter Tolerance | -0.004" to +0.002" |
| Overall Length | 100 ft. |
| Peristaltic Pump Compatible | No |
| Reinforcement | Not Reinforced |
| Resistance Properties | Chemical Resistant, Humidity Resistant |
| Stripe Color | No Stripe |
| Temp. Range | -4°F to +175°F |
| Tolerance | -0.004" to +0.002" |
| Vacuum Rated | Vacuum Rated |
| Vacuum Rating | 28 in. hg |
| Wall Thickness | 0.03" |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 40.39 |
| Ship width (cm) | 40.39 |
| HS code | 3917320050 |
| Country of Origin | US |
Product Variants
| Product | Model | Wall Thickness | Color | Clarity | Temp. Range | Hardness | Flexibility | Fitting Compatibility | Inside Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2VDL1 | 0.03" | - | Opaque | -4°F to +175°F | Shore D 60 | Semi Flexible | Compression, Push-To-Connect | 0.17" | €30.60 | |
 |
2VDL8 | 0.03" | Beige | Semi Clear | -4°F to +175°F | Shore D 60 | Semi Flexible | Compression, Push-To-Connect | 0.17" | €32.21 | |
|
2VDN6 | 0.03" | Beige | Semi Clear | -4°F to +175°F | Shore D 60 | Semi Flexible | Compression, Push-To-Connect | 0.17" | €58.90 | |
|
2VDP4 | 0.035" | Black | - | -4°F to +175°F | - | - | - | 0.17" | €48.65 | |
|
2VDR2 | 0.03" | Beige | Semi Clear | -4°F to +175°F | Shore D 60 | Semi Flexible | Compression, Push-To-Connect | 0.17" | €141.02 | |
|
2VDR9 | 0.03" | Black | Opaque | -4°F to +175°F | Shore D 60 | Semi Flexible | Compression, Push-To-Connect | 0.17" | €113.71 | |
 |
2VDT6 | 0.03" | Blue | Opaque | -4°F to +175°F | Shore D 60 | Semi Flexible | Compression, Push-To-Connect | 0.17" | €26.36 |
