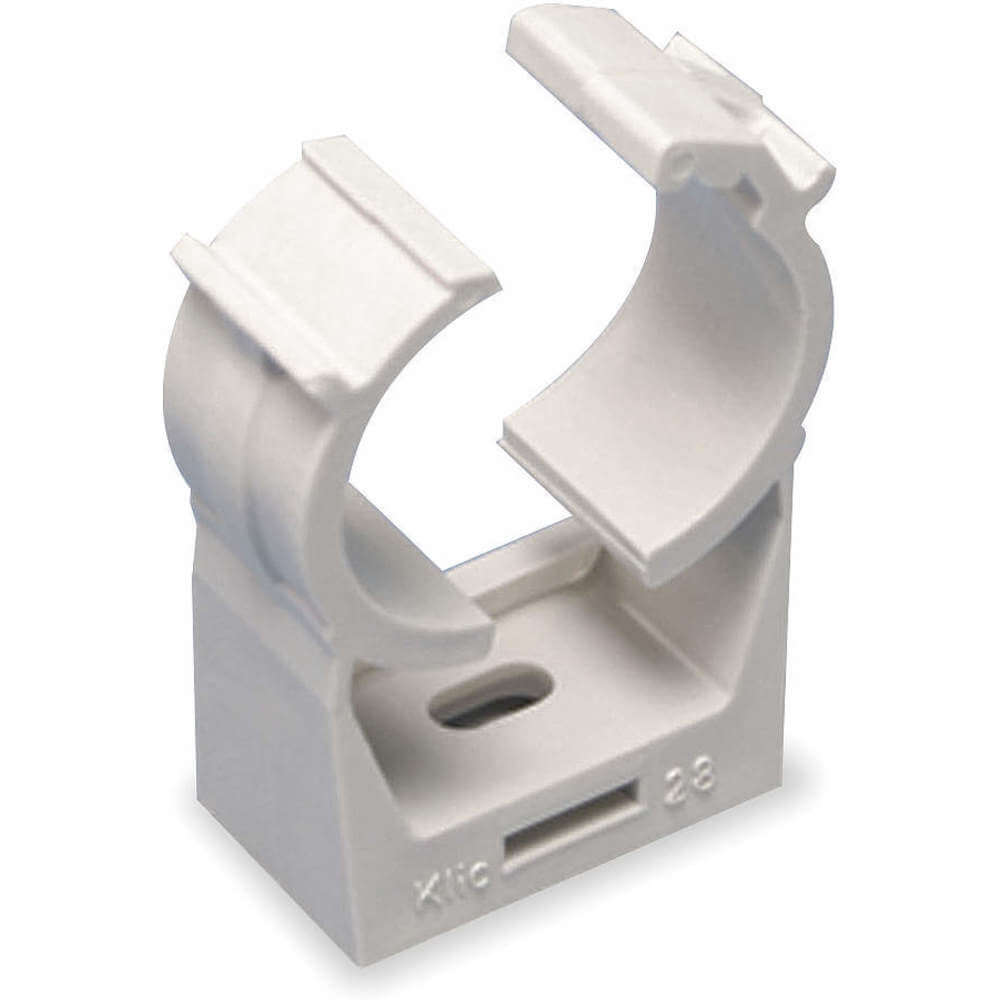

NVENT 389008 Superklip Tube And Pipe Clamp
Item: AB3FBJModel: 389008Cross Ref: 1RVA1
7 In Stock
Ships within 2 days via
10.00% off
€7.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tube And Pipe Clamp |
| Clamp Material | Polycarbonate, Polyester |
| For Maximum Outside Diameter | 1 3/8" |
| For Minimum Outside Diameter | 1 1/4" |
| For Pipe Size | 1" |
| Length | 2 1/8" |
| Load Capacity | 67 lbs. |
| Material | Non Metallic |
| Max. Load | 75 lbs. |
| Maximum Operating Temperature | 194°F |
| Metal Detectable | No |
| Minimum Operating Temperature | -13°F |
| Overall Height | 2 1/8" |
| Overall Length | 2 1/8" |
| Overall Width | 11/16" |
| Type | Superklip |
| Width | 0.688" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 24.64 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 11.43 |
| HS code | 3926909980 |
| Country of Origin | CH |
Product Details:
- Special Features: Iron Pipe Size 1", Copper Tube Size 1-1/4"
Product Variants
| Model | Max. Load | For Pipe Size | Load Capacity | Overall Width | Overall Length | For Maximum Outside Diameter | For Minimum Outside Diameter | For Copper Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 389001 | 40 lbs. | - | 35 lbs. | 9/16" | 1 3/16" | 9/16" | 7/16" | 3/8" | €3.26 | |
| 389002 | 45 lbs. | - | 40 lbs. | 9/16" | 1 3/16" | 11/16" | 9/16" | 1/2" | €3.31 | |
| 389003 | 50 lbs. | 3/8" | 43 lbs. | 5/8" | 1 7/16" | 3/4" | 11/16" | 5/8" | €3.75 | |
| 389004 | 50 lbs. | 1/2" | 50 lbs. | 5/8" | 1 9/16" | 7/8" | 3/4" | - | €4.20 | |
| 389005 | 55 lbs. | - | 48 lbs. | 11/16" | 1 5/8" | 1" | 7/8" | 3/4" | €4.52 | |
| 389006 | 60 lbs. | 3/4" | 54 lbs. | 11/16" | 1 3/4" | 1 1/16" | 1" | - | €5.95 | |
| 389007 | 65 lbs. | - | 58 lbs. | 11/16" | 1 15/16" | 1 1/4" | 1 1/16" | 1" | €7.82 |
