NUMATICS L23PP652O000000 Valve Air Pilot 4 Way 3 Pos 3/8 Inch Port
Item: AC9QXLModel: L23PP652O000000Cross Ref: 3JCV1
7 In Stock
Ships within 2 days via
10.00% off
€268.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Pilot Directional Valve |
| Actuator Type | Remote Pilot |
| Application | Automotive, Bottling, Life Science, Pressing, Tire Manufacturing |
| Body Material | Steel |
| Body Style | Inline |
| Center Position | Closed |
| Cfm | 78 CFM |
| Coefficient Of Volume | 1.7 |
| Cv | 1.7 |
| Fail Position | Closed |
| Flow Rate - Maximum | 79 SCFM |
| For Media | Air |
| Height | 2" |
| Length | 3 7/8" |
| Max. Operating Pressure | 150 psi |
| Max. Temp. Range | 150°F |
| Number Of Pilots | 2 |
| Number Of Positions | 3 |
| Number Of Ways | 4 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -10°F |
| Overall Height | 2" |
| Overall Length | 3 7/8" |
| Overall Width | 1" |
| Override | Locking |
| Pilot Npt Port Size | 0.125" |
| Pilot Port Connection Size | 3/8" |
| Pilot Port Connection Type | NPT |
| Pilot Port Size Npt (in.) | 1/8 |
| Pilot Pressure | 14.5 psi |
| Product Type | Pilot Air Control Valve |
| Return Action | Pilot Return |
| Series | L2 Series |
| Spool Material | Steel |
| Type | Body Ported |
| Uses | For Air Or Inert Gas |
| Vacuum | Yes |
| Vacuum Rating | Vacuum Operable |
| Valve Port Connection Size | 3/8" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 5.59 |
| HS code | 8481200070 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Number Of Positions | Cv | Height | Coefficient Of Volume | Actuator/return | Uses | Number Of Ways | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

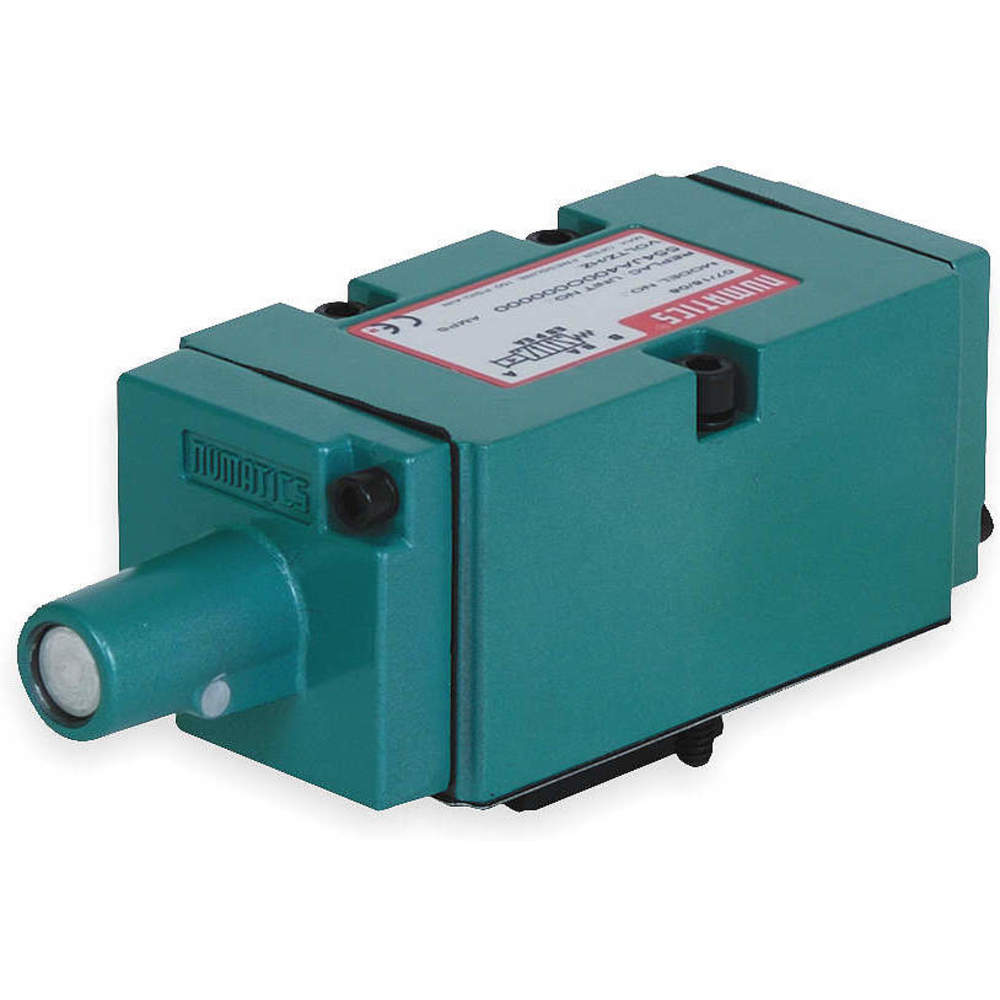

554JA400O000000 | Base Mount | 2 | 5 | 2.187" | 5 | Pilot/Spring | For Air Or Inert Gas | 4 | €565.87 | |
 |
554JJ400O000000 | Base Mount | 2 | 5 | 2.187" | 5 | - | For Air Or Inert Gas | 4 | €658.39 | |
|

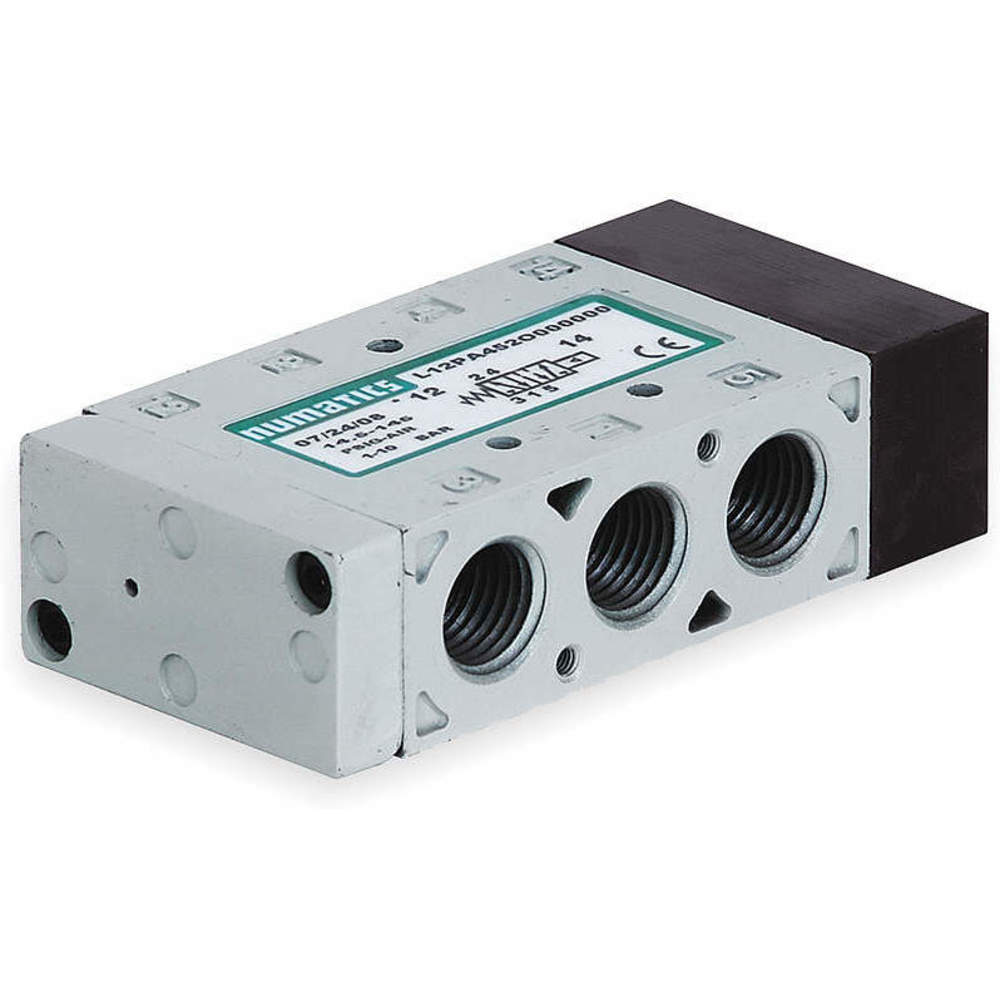

L12PA452O000000 | Body Ported | 2 | 1 | - | - | Pilot/Spring | For Air Or Inert Gas | 4 | €182.98 | |
|
L12PP452O000000 | Body Ported | 2 | 1 | 1 5/8" | - | - | For Air Or Inert Gas | 4 | €195.83 | |
|
L23PA452O000000 | Body Ported | 2 | 1.7 | 2" | 1.7 | Pilot/Spring | For Air Or Inert Gas | 4 | €201.99 | |
|
L23PP452O000000 | Body Ported | 2 | 1.7 | 2" | 1.7 | - | For Air Or Inert Gas | 4 | €215.03 | |
|
L23PP552O000000 | Body Ported | 3 | 1.7 | 2" | 1.7 | - | For Air Or Inert Gas | 4 | €298.19 |
